CanTsyn

文档信息 Document Information

版本历史 Version History

日期(Date)	作者(Author)	版本(Version)	状态(Status)	说明(Description)
2025/3/2	xiongfei.shi	V0.1	发布(Release)	首次发布(First release)
2025/04/04	xiongfei.shi	V1.0	发布(Release)	正式发布(Official release)

参考文档 References

编号(Number)	分类(Classification)	标题(Title)	版本(Version)
1	Autosar	AUTOSAR_CP_SWS_TimeSyncOverCAN.pdf	R23-11
2	Autosar	AUTOSAR_CP_SWS_SynchronizedTimeBaseManager.pdf	R23-11

术语与简写 Terms and Abbreviations

术语 Terms

术语(Terms)	解释(Explanation)
Global Time Domain	全局时间域(Global Time Domain)
Global Time Master	全域时间主控(Global Time Master)
Debounce Time	同一PDU两条发送消息的最小间隔(Minimum Interval between Two Transmissions of the Same PDU)
SYNC message	时间同步消息(Time synchronization message)
FUP message	后续消息(Subsequent Message)

简写 Abbreviations

简写(Abbreviation)	全称(Full name)	解释(Explanation)
<Bus>TSyn	A bus specific Time Synchronization module	特定总线时间同步模块
CanTSyn	Time Synchronization module for CAN	CAN 时间同步模块
CRC	Cyclic Redundancy Checksum	循环冗余检验
DET	Default Error Tracer	默认错误跟踪器
DLC	Data Length Code	数据长度代码
StbM	Synchronized Time-Base Manager	同步的时间基管理
TS	Time Slave	时间从属
Timesync	Time Synchronization	时间同步

简介 Introduction

CanTSyn 在 AutoSAR 软件层级架构如下图， 其所属于时间同步栈。

The software layer architecture of StbM in AutoSAR is shown in the figure below. It belongs to the time synchronization stack.

CanTSyn 在 AUTOSAR 中的位置 (Position of CanTSyn in AUTOSAR)

本文中描述CanTSyn，StbM负责管理时间域，给CanTSyn提供接口用来更新同步时间，给其他用户提供接口用来获取/通知同步时间。CanTSyn负责Can总线上的时间同步。

As described in this document, CanTSyn works with StbM. StbM is responsible for managing the time domain, providing an interface for CanTSyn to update the synchronized time, and providing interfaces for other users to get/notify the synchronized time. CanTSyn is responsible for time synchronization over the CAN bus.

功能描述 Functional Description

CanTSyn模块和StbM模块息息相关，StbM模块提供了时间同步的功能和时钟实例，但不负责在各个总线内的时间分发任务。那么CanTSyn模块就处理了在CAN总线发放时间信息的任务。

The CanTSyn module is closely related to the StbM module. The StbM module provides time synchronization function and clock instances but is not responsible for the task of time distribution on individual buses. Therefore, the CanTSyn module handles the task of distributing time information on the CAN bus.

仅仅通过广播的方式把时间信息从Time Masters发送到Time Slaves会导致时间不精准，这是因为CAN总线传输仲裁机制以及BSW的延迟。

Simply broadcasting time information from Time Masters to Time Slaves may lead to inaccuracies due to the CAN bus arbitration mechanism and BSW latency.

具体实现上我们通过以下的两步算法来尽可能消除这样的延迟：

In practice, this latency is minimized by implementing the following two-step algorithm:

第一步：发送方（Time Master）首先记录当前的同步时间（SYNC）以及本地时间(T0VLT)并在第一个广播信息（所谓的SYNC信息）里，把同步好的时间的秒部分（SYNCSEC）作为内容发送。

Step 1: The sender (Time Master) first records the current synchronized time (SYNC) and the local time (T0VLT), and in the first broadcast message (the SYNC message), sends the seconds part of the synchronized time (SYNCSEC).

发送方在收到 “CAN transmit confirmation”时记录时间戳来得到信息实际发送的时间点（T1VLT）。接收方（Time Slave）收到信息 “CAN receive indication”时记录时间戳来检测信息实际收到的时间点（T2VLT）。

The sender records the timestamp Upon receiving “CAN transmit confirmation” to get the actual transmission time of the message (T1VLT). The receiver (Time Slave) records the timestamp upon receiving “CAN receive indication” to detect the actual time the message was received (T2VLT).

第二步：在第二个同步信息（所谓的FUP（follow-up）信息）里，发送方发送T4作为内容，T4为SYNC消息准备发送和实际发送的时间差（T1VLT-T0VLT）加上T0SYNCNS（同步时间的纳秒部分）（T4=T0SYNCNS+(T1VLT-T0VLT)）。对于发送方来说，此时T0SYNCSEC+T4就为同步时间。Time Slave现在从SYNC和FUP消息里获取了足够的信息，再加上先前记录的时间戳T2VLT，就可以确定更加确切的时间信息。接收方将(T0SYNCSEC+T4)和T2VLT时间对信息传给StbM, StbM即可计算同步时间，完成一次Time Master和Time Slave之间的时间同步。

Step 2: In the second synchronization message (the FUP, or follow-up, message), the sender transmits T4 as the content. T4 is the difference between the intended and actual transmission time of the SYNC message (T1VLT - T0VLT), plus the nanoseconds part of the synchronized time (T0SYNCNS). Thus, T4 = T0SYNCNS + (T1VLT - T0VLT). For the sender, the synchronized time at this point is T0SYNCSEC + T4. Time Slave now has obtained sufficient information from the SYNC and FUP messages, and along with its previously recorded timestamp T2VLT, it can determine a more precise time. The receiver passes the time pair information, (T0SYNCSEC + T4) and T2VLT, to StbM. StbM can then calculate the synchronized time, completing the time synchronization cycle between Time Master and Time Slave.

特性 Features

消息格式 Message Format

CanTSyn的协议格式即支持标准CAN模式也支持扩展CAN模式。

The protocol format of CanTSyn supports both standard CAN and extended CAN modes.

时间同步主站 Time Synchronization Master

CanTSyn支持配置为时间主站，将时间同步给同网络下的其他时间从站。

CanTSyn can be configured as a Time Master to synchronize time with other Time Slaves on the same network.

时间同步从站 Time Synchronization Slave

CanTSyn支持配置为时间从站，接受同网络下的时间主机的同步消息，将自己的时间与主站同步。

CanTSyn can be configured as a Time Slave to receive synchronization messages from the Time Master on the same network and synchronize its own time with the master’s time.

偏差 Deviation

1.不再支持偏移时间的同步，配置中删除CanTSynGlobalTimeOfsDataIDList配置项和CanTSynGlobalTimeOfnsDataIDList配置项

1.Synchronization of offset time is no longer supported; the CanTSynGlobalTimeOfsDataIDList and CanTSynGlobalTimeOfnsDataIDList configuration items have been removed.

2.不支持CAN的硬件时间戳

2.CAN hardware timestamps are not supported.

3.不支持时间验证功能

3.Time verification function is not supported

4.不支持数据完整性检查功能(ICV)

4.The data integrity check function (ICV) is not supported.

扩展 Extension

None

集成 Integration

文件列表 File List

静态文件 Static Files

文件(File)	描述(Description)
CanTSyn.h	包含需要使用的宏定义，类型定义，配置结构体声明，外部函数声明(Contains macro definitions, type definitions, configuration structure declarations, and external function declarations that need to be used)
CanTSyn_Cbk.h	包含需要使用的宏定义，类型定义，配置结构体声明，外部回调函数声明(Contains macro definitions, type definitions, configuration structure declarations, and external callback function declarations that need to be used)
CanTSyn_Internal.h	包含需要使用的内部宏定义，内部类型定义，外部数据声明和外部函数声明(Contains internal macro definitions, internal type definitions, external data declarations, and external function declarations that need to be used)
CanTSyn.c	包含需要使用的宏定义，内部变量，内部函数，全局函数(Contains macro definitions, internal variables, internal functions, and global functions that need to be used)

动态文件 Dynamic Files

文件(File)	描述(Description)
CanTSyn_MemMap.h	CanTSyn模块的内存映射(Memory mapping of the CanTrcv module)
CanTSyn_Cfg.h	定义CanTSyn模块预编译时用到的配置参数(Defines configuration parameters used in the pre-compilation of the CanTSyn module)
CanTSyn_Cfg.c	CanTSyn Pre-Compile 配置源文件(Pre-Compile configuration source file of CanTSyn)
CanTSyn_PBcfg.c	CanTSyn Post-Build 配置源文件(Post-Build configuration source file of CanTSyn)

错误处理 Error Handling

开发错误 Development Errors

Error code	Value[hex]	Description
CANTSYN_E_INVALID_PDUID	0x01	API service called with wrong PDU or SDU
CANTSYN_E_UNINIT	0x02	API service used in un-initialized state
CANTSYN_E_NULL_POINTER	0x03	A pointer is NULL
CANTSYN_E_INIT_FAILED	0x04	CanTSyn initialization failed
CANTSYN_E_PARAM	0x05	API called with invalid parameter
CANTSYN_E_INV_CTRL_IDX	0x06	Invalid Controller index
CANTSYN_E_INVALID_PARTITION	0xF0	CanTSyn accessed by wrong partition
CANTSYN_E_ALREADY_INITIALIZED	0xF1	CanTSyn has initialized

产品错误 Product Errors

None

运行时错误 Runtime Errors

None

接口描述 Interface Description

类型定义 Type Definitions

Type Name	Type	Description
CanTSyn_ConfigType	struct	This is the base type for the configuration of the Time Synchronization over CAN.
CanTSyn_TransmissionModeType	enum	Handles the enabling and disabling of the transmission mode.

提供的服务 Services

CanTSyn_Init

void CanTSyn_Init(const CanTSyn_ConfigType *configPtr)

This function initializes the Time Synchronization over CAN.

Sync/Async

Synchronous

Reentrancy

Non Reentrant

Parameters

Dir	Name	Description
[in]	configPtr	Pointer to selected configuration structure

Return type

void

CanTSyn_GetVersionInfo

void CanTSyn_GetVersionInfo(Std_VersionInfoType *versioninfoPtr)

This service returns the version information of this module.

Sync/Async

Synchronous

Reentrancy

Non Reentrant

Parameters

Dir	Name	Description
[out]	versioninfoPtr	See Std_VersionInfoType

Return type

void

CanTSyn_SetTransmissionMode

void CanTSyn_SetTransmissionMode(uint8 CtrlIdx, CanTSyn_TransmissionModeType Mode)

This API is used to turn on and off the TX capabilities of the CanTSyn.

Sync/Async

Synchronous

Reentrancy

Non Reentrant

Parameters

Dir	Name	Description
[in]	CtrlIdx	Index of the CAN channel
[in]	Mode	CANTSYN_TX_OFF CANTSYN_TX_ON

Return type

void

类型定义 Type Definitions

None

提供的服务 Services

CanTSyn_RxIndication

void CanTSyn_RxIndication(PduIdType RxPduId, const PduInfoType *PduInfoPtr)

Indication of a received PDU from a lower layer communication interface module.

Sync/Async

Synchronous

Reentrancy

Reentrant(Reentrant for different PduIds. Non reentrant for the same PduId.)

Parameters

Dir	Name	Description
[in]	RxPduId	ID of the received PDU.
[in]	PduInfoPtr	Contains the length (SduLength) of the received PDU, a pointer to a buffer (SduDataPtr) containing the PDU, and the MetaData related to this PDU.

Return type

void

CanTSyn_TxConfirmation

void CanTSyn_TxConfirmation(PduIdType TxPduId, Std_ReturnType result)

The lower layer communication interface module confirms the transmission of a PDU, or the failure to transmit a PDU.

Sync/Async

Synchronous

Reentrancy

Reentrant(Reentrant for different PduIds. Non reentrant for the same PduId.)

Parameters

Dir	Name	Description
[in]	TxPduId	ID of the PDU that has been transmitted.
[in]	result	E_OK: The PDU was transmitted. E_NOT_OK: Transmission of the PDU failed.

Return type

void

类型定义 Type Definitions

Type Name	Type	Description
CanTSyn_MasterTimeInfoType	struct	store the time information for a time master
CanTSyn_SlaveTimeInfoType	struct	store the time information for a time slave
CanTSyn_GlobalTimeMasterType	struct	define configuration of the global time master
CanTSyn_GlobalTimeSlaveType	struct	define configuration of the global time slave
CanTSyn_DataIDListElementType	struct	define DataIDList messages
CanTSyn_GlobalTimeDomainType	struct	define CanTSyn GlobalTimeDomain
CanTSyn_InitStatusType	enum	define CanTSyn module initiation status
CanTSyn_MasterStatusType	enum	define CanTSyn master operation status
CanTSyn_SlaveStatusType	enum	define CanTSyn Slave operation Status

配置函数 Configuration function

CanTSyn_MainFunction

void CanTSyn_MainFunction(void)

This function needs to be called periodically to perform the AUTOSAR CanTSyn activities.

Sync/Async

Asynchronous

Reentrancy

Reentrant (Reentrant for different partitions. Non reentrant for the same partition.)

Return type

void

依赖的服务 Applicable Services

强制接口 Compulsory interface

API Function	Header File	Description
StbM_GetCurrentTime	StbM.h	Returns a time value(Local Time Base derived from Global Time Base) in standard format.
StbM_GetTimeBaseUpdateCounter	StbM.h	Get the time base update counter value, that indicates a Time Base update to the Timesync Modules.
StbM_GetTimeBaseStatus	StbM.h	Returns detailed status information for a Synchronized(or Pure Local) Time Base.
StbM_GetCurrentVirtualLocalTime	StbM.h	Returns the Virtual Local Time of the referenced Time Base..
CanIf_Transmit	CanIf.h	Requests transmission of a PDU.

可选接口 Optional Interface

API Function	Header File	Description
Det_ReportError	Det.h	Service to report development errors.
Crc_CalculateCRC8H2F	Crc.h	Calculate CRC value.
GetApplicationID	Os.h	Get application ID.

配置接口 Configuration Interfaces

None

配置 Configuration

1.各CanTSynGlobalTimeDomain的CanTSynGlobalTimeDomainId是唯一的，不能出现相同。

1.CanTSynGlobalTimeDomainId for each CanTSynGlobalTimeDomain must be unique.

2.如果使能了CRC校验，那么相同CanTSynGlobalTimeDomainId的Master和Slave的CanTSynGlobalTimeSyncDataIDList、CanTSynGlobalTimeFupDataIDListElement配置项必须相同，否则校验不过。

2.If CRC checksum is enabled, CanTSynGlobalTimeSyncDataIDList and CanTSynGlobalTimeFupDataIDListElement configuration items must be identical for the Master and Slave within the same CanTSynGlobalTimeDomainId; otherwise, the check will fail.

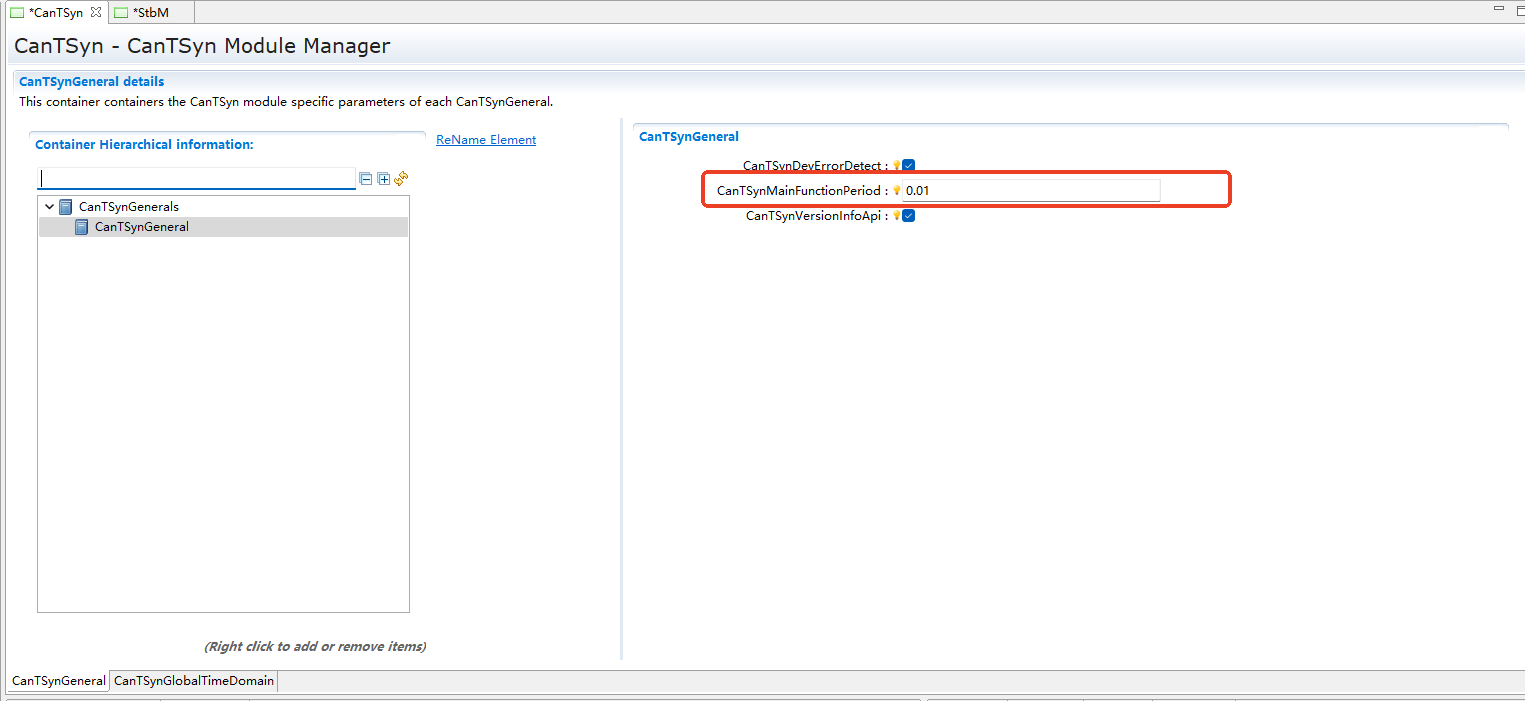

配置主函数周期。

Configure the main function period.

Master配置

Master Configuration

BSW部分

BSW Part

导入萃取文件前

Before Importing the Extraction File

注意：萃取文件更新步骤参考下文SWC部分

Note: For the steps to update the extraction file, refer to the SWC part below.

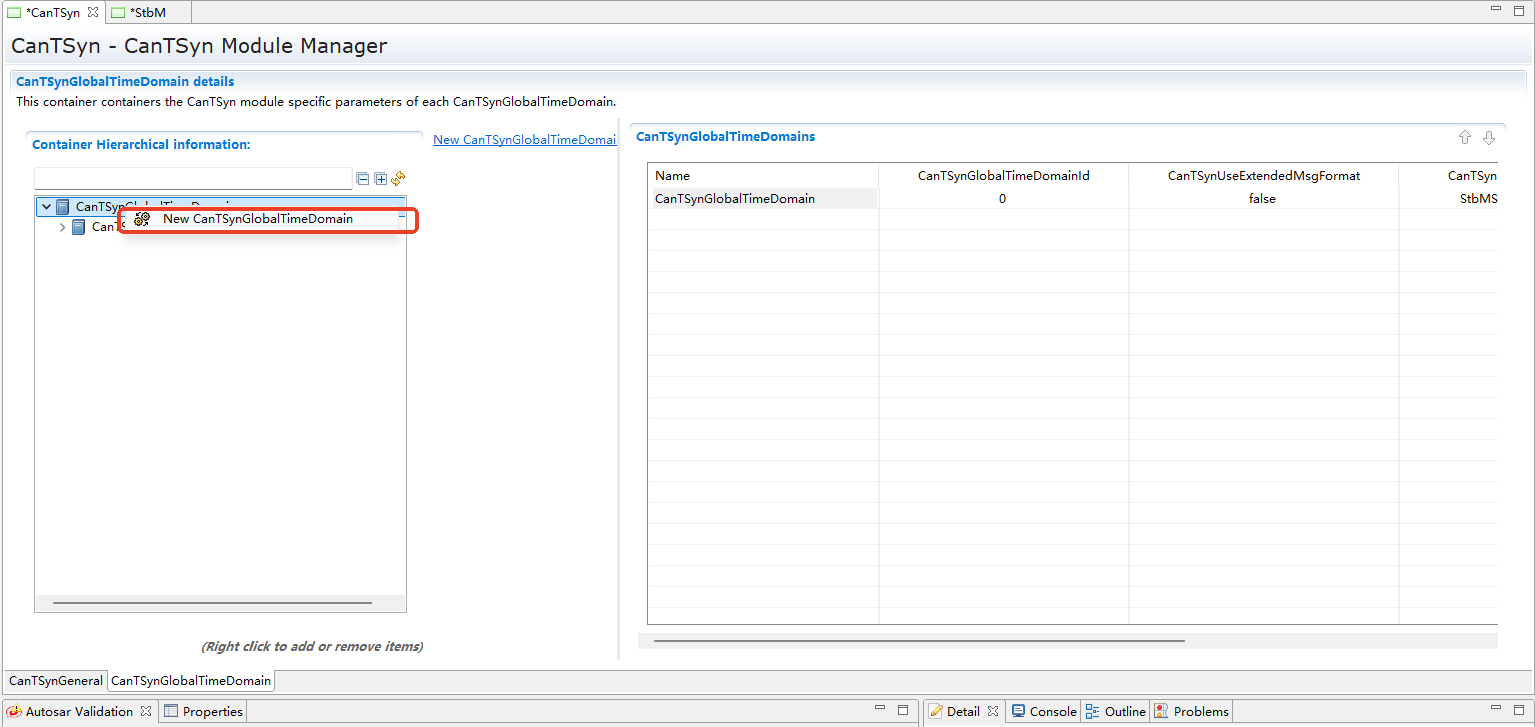

右键新增一个时间域。

Right-click to add a new time domain.

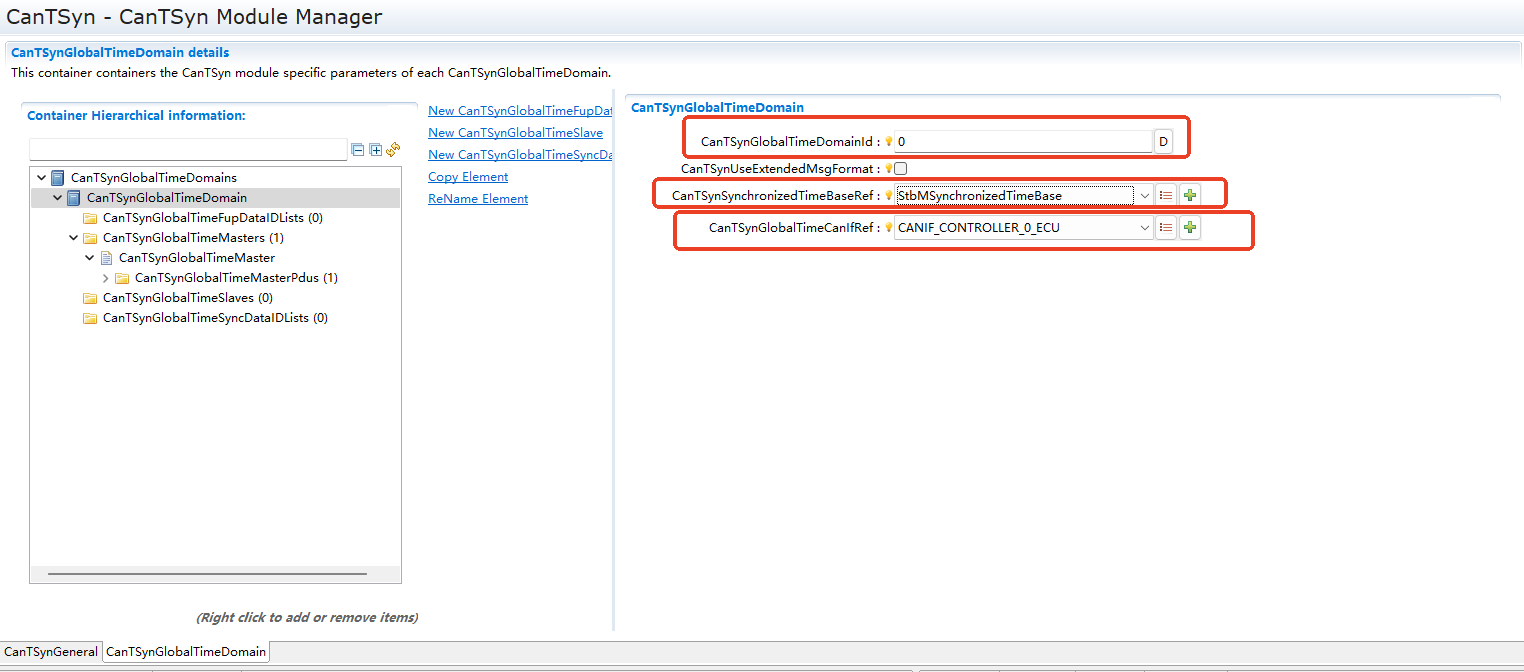

1.配置CanTSynGlobalTimeDomainId时间域的ID。（主从时间域ID必须一致才可进行同步，用于划分不同的同步局域网）

1.Configure the time domain ID CanTSynGlobalTimeDomainId. (The Master and Slave time domain IDs must be identical for synchronization. This is used to create separate synchronization networks.)

2.关联时间基。

2.Associate the time base.

3.关联CAN控制器。

3.Associate the CAN controller.

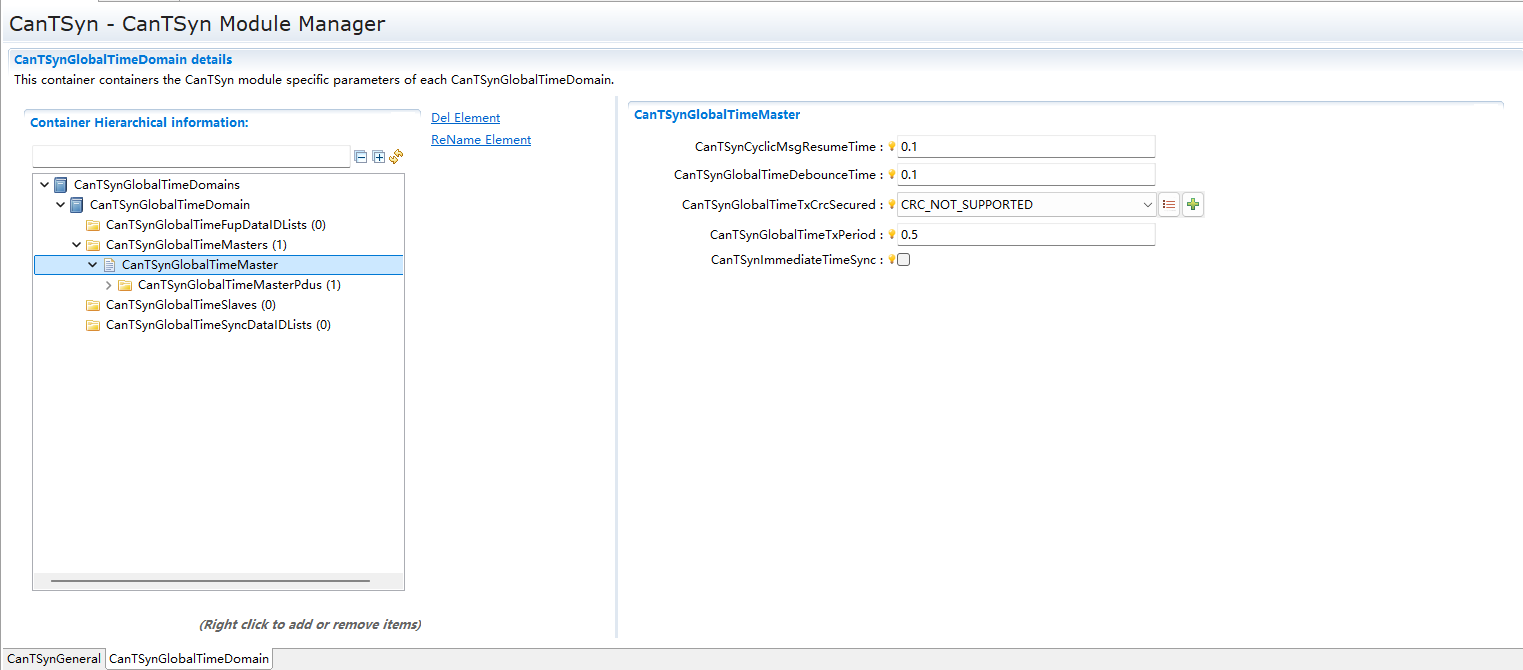

1.设置CanTSynCyclicMsgResumeTime时间，指从立即发送恢复到循环发送所需要的时间。

1.Set CanTSynCyclicMsgResumeTime, which specifies the time required to transition from immediate transmission back to cyclic transmission.

2.设置CanTSynGlobalTimeDebounceTime，指SYNC报文和FU报文之间的时间间隔。

2.Set CanTSynGlobalTimeDebounceTime, which specifies the time interval between the SYNC and FUP messages.

3.CanTSynGlobalTimeTxCrcSecured可选择支持或不支持CRC校验。（CRC校验会校验报文中的sequenceID，DomainID等信息）此处选择不支持。注意：若选择支持，则需要配置CanTSynGlobalTimeFupDataIDList和CanTSynGlobalTimeSyncDataIDList。

3.Set CanTSynGlobalTimeTxCrcSecured to either enable or disable CRC checksum. (CRC checksum checks information in the message such as the sequence ID and Domain ID). Here, it is set to disabled. Note: If enabled, CanTSynGlobalTimeFupDataIDList and CanTSynGlobalTimeSyncDataIDList must be configured.

4.设置同步报文的发送周期CanTSynGlobalTimeTxPeriod。

4.Set the transmission period for synchronization messages CanTSynGlobalTimeTxPeriod.

导入萃取文件后

After Importing the Extraction File

完成更新萃取文件后，按照以下步骤生成RTE

After updating the extraction file, follow the steps below to generate the RTE.

首先打开ECUC模块，在上图位置添加之前在SWC新增的应用组件。

First, open the ECUC module and add the application component previously created in the SWC, as shown in the figure above.

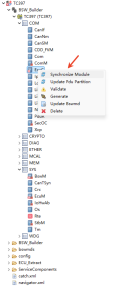

右键ECUC模块，同步一下模块。

Right-click the ECUC module and synchronize the module.

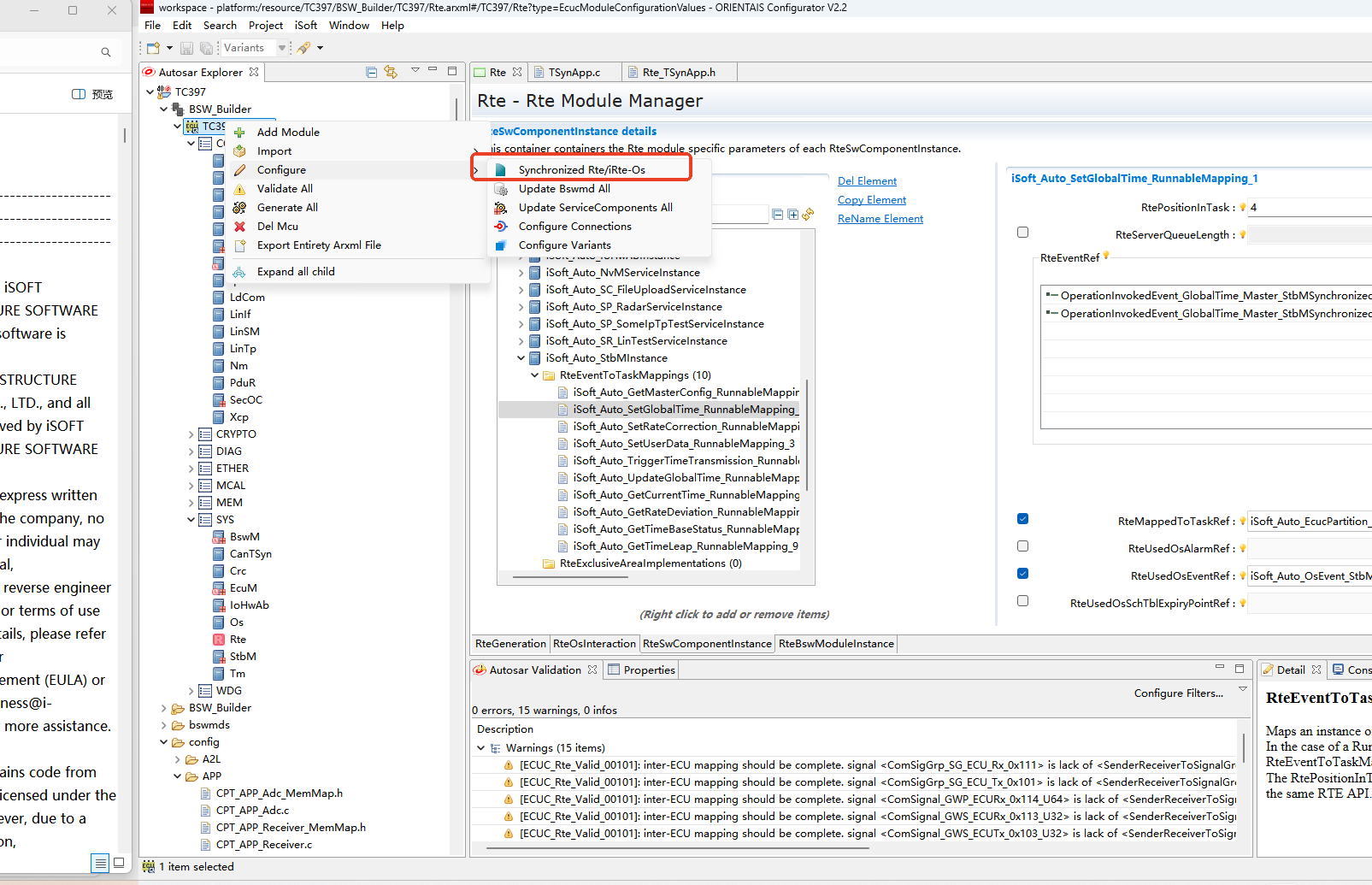

点金同步RTE/OS。

Click to synchronize RTE/OS.

生成RTE文件和APP文件。

Generate the RTE and APP files.

SWC部分

SWC Part

作为主时钟，需要将自己的本地时间基信息发送到总线上，在这之前需要设置主时钟关联的时间基。因此需要走SWC，通过StbM的服务组件设置时间基。

As a master clock, it needs to send its local time base information to the bus. Before doing so, the time base associated with the master clock must be set. Therefore, this is done through SWC by setting the time base via the StbM service component.

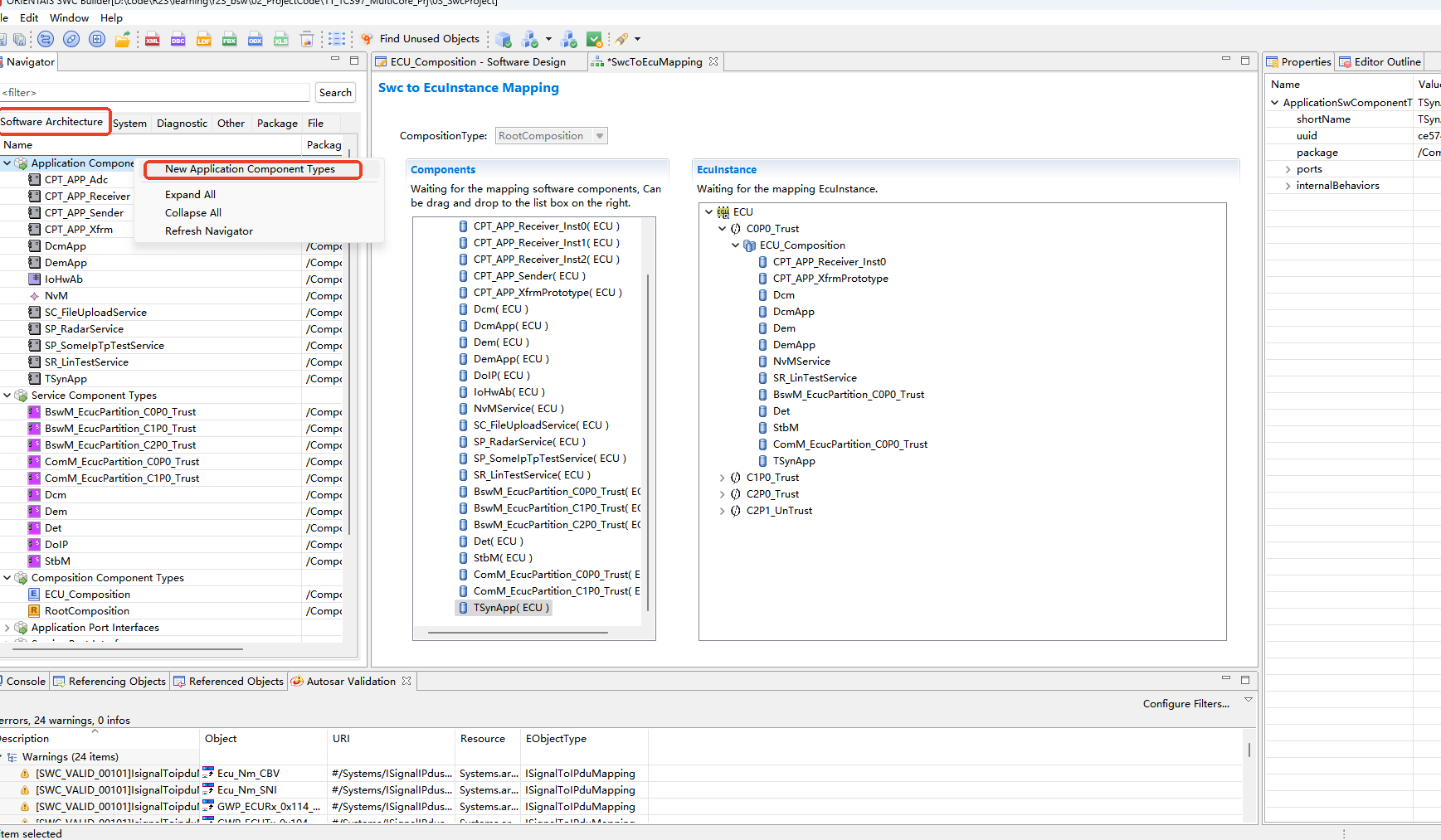

如上图所示，在Application Component处右键新增一个应用组件。

As shown in the figure above, right-click on Application Component to add a new application component.

对该APP组件进行命名。

Name this APP component.

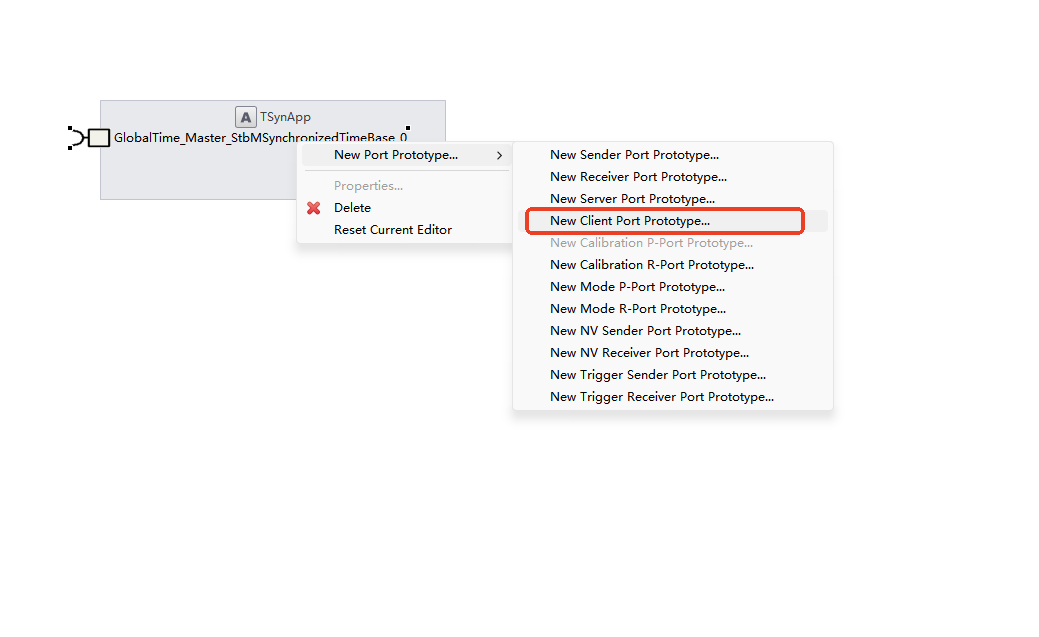

右键新增一个客户端Port。

Right-click to add a new client Port.

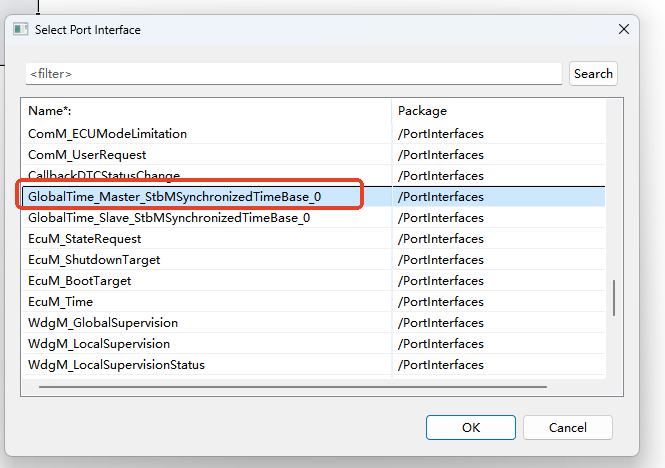

选中CanTSyn关联的时间基。

Select the time base associated with CanTSyn.

点击上图所示Runnable Entity List。

Click Runnable Entity List, as shown in the figure above.

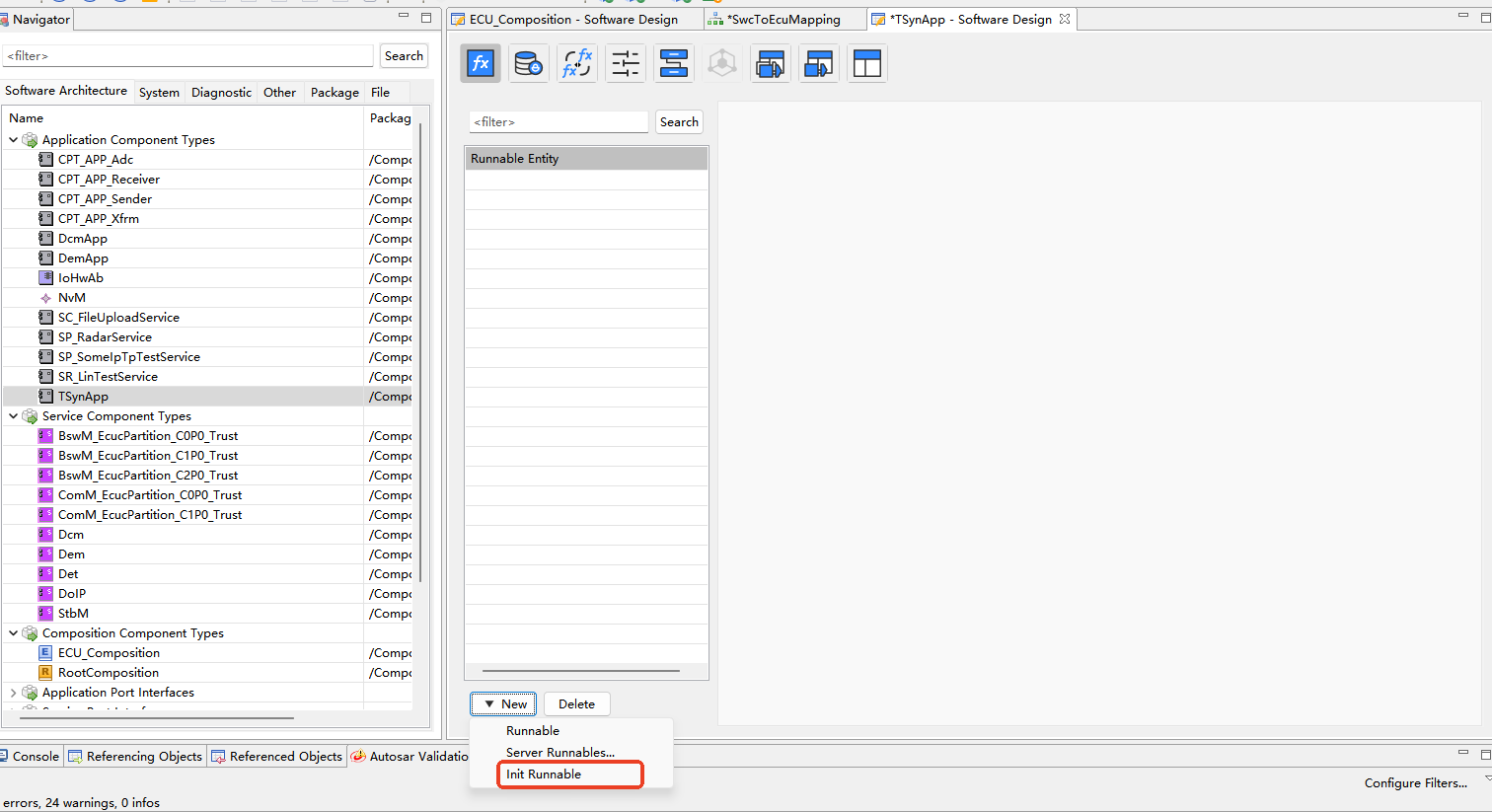

New一个Init Runnable。

Create a new Init Runnable.

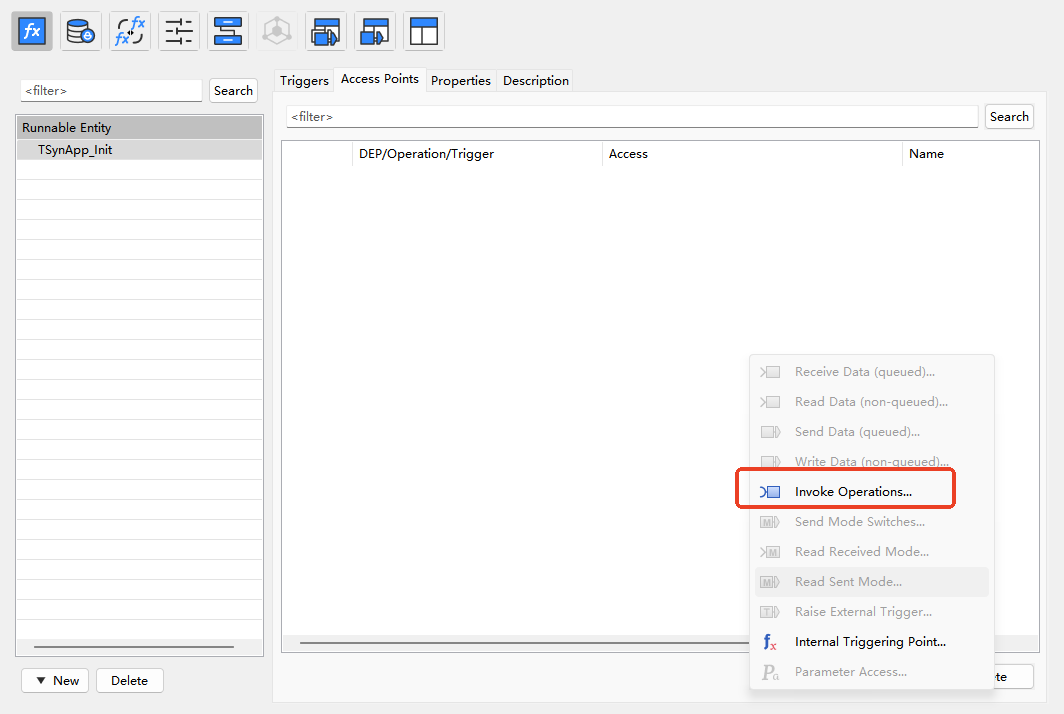

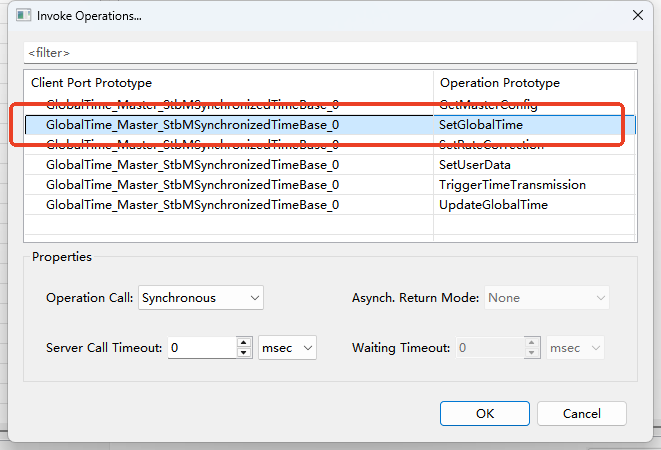

选择Access Points中的SetGlobalTime。

Select SetGlobalTime from the Access Points.

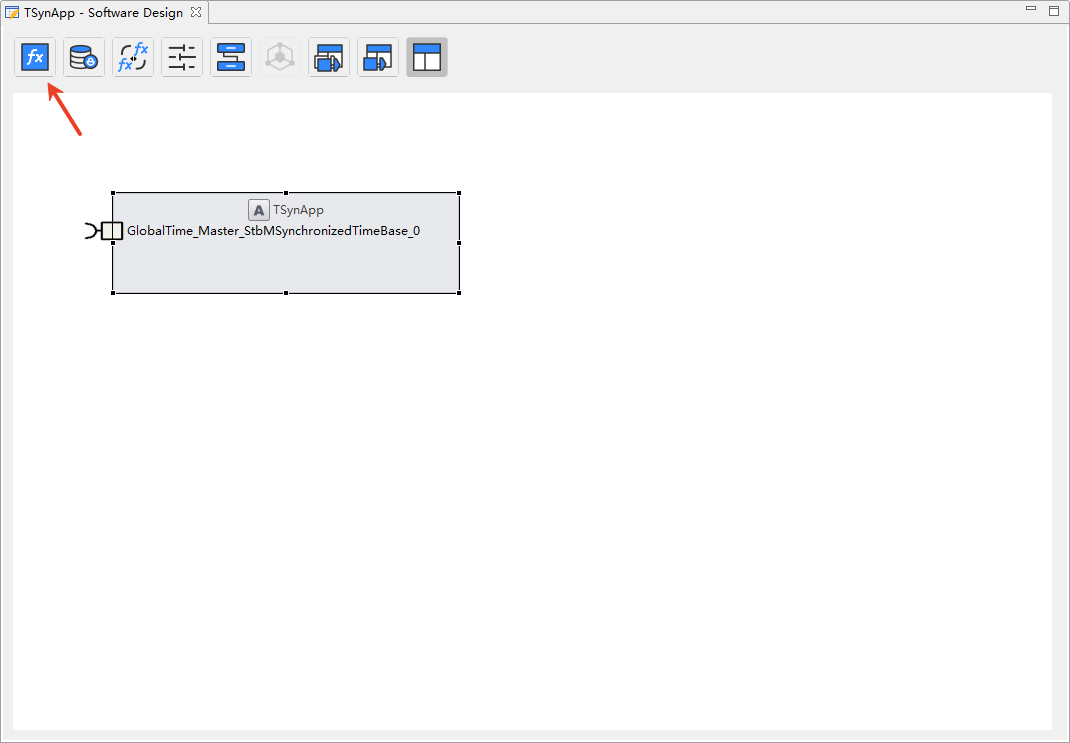

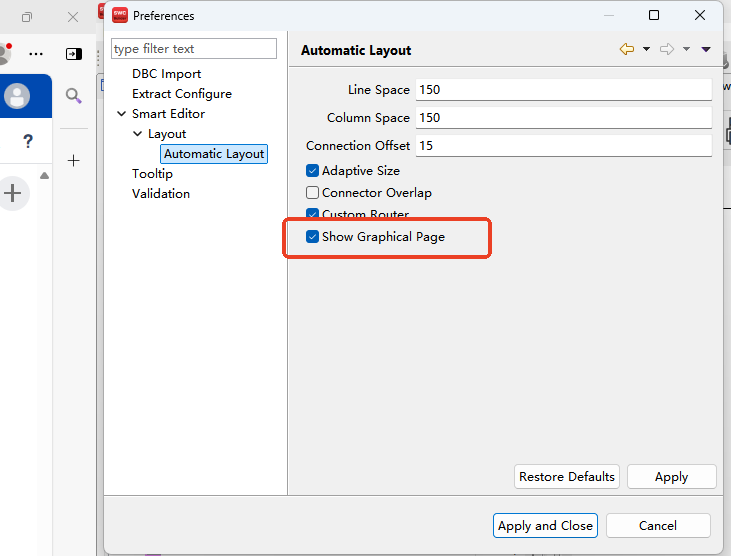

如上图所示开启图形界面。

Open the graphical interface, as shown in the figure above.

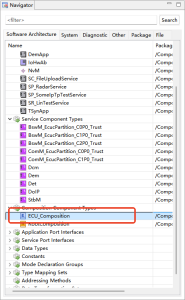

双击ECU_ComPosition。

Double-click ECU_Composition.

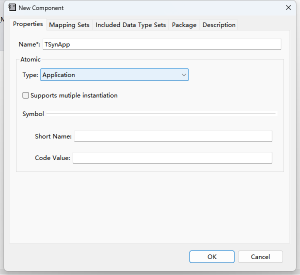

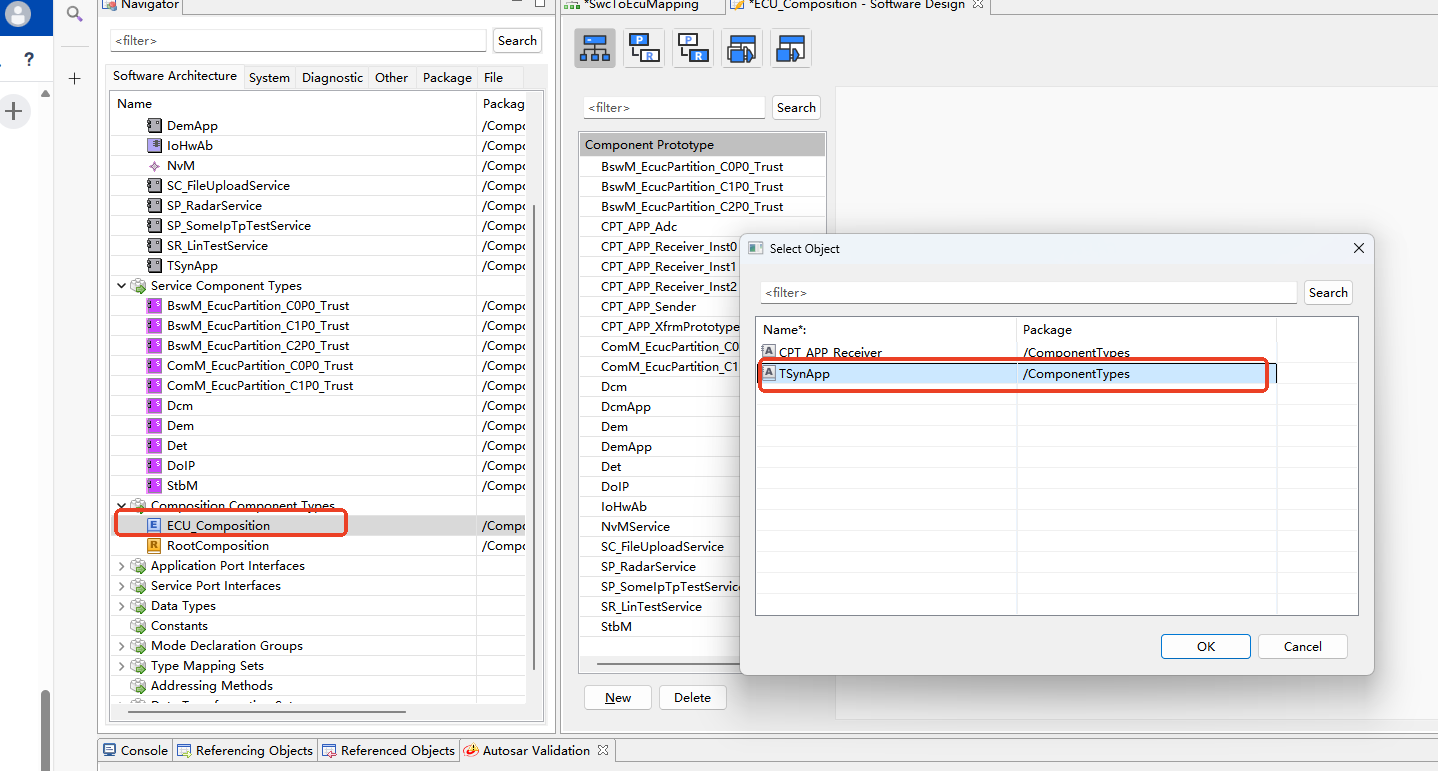

实例化TSyn_App。

Instantiate TSyn_App.

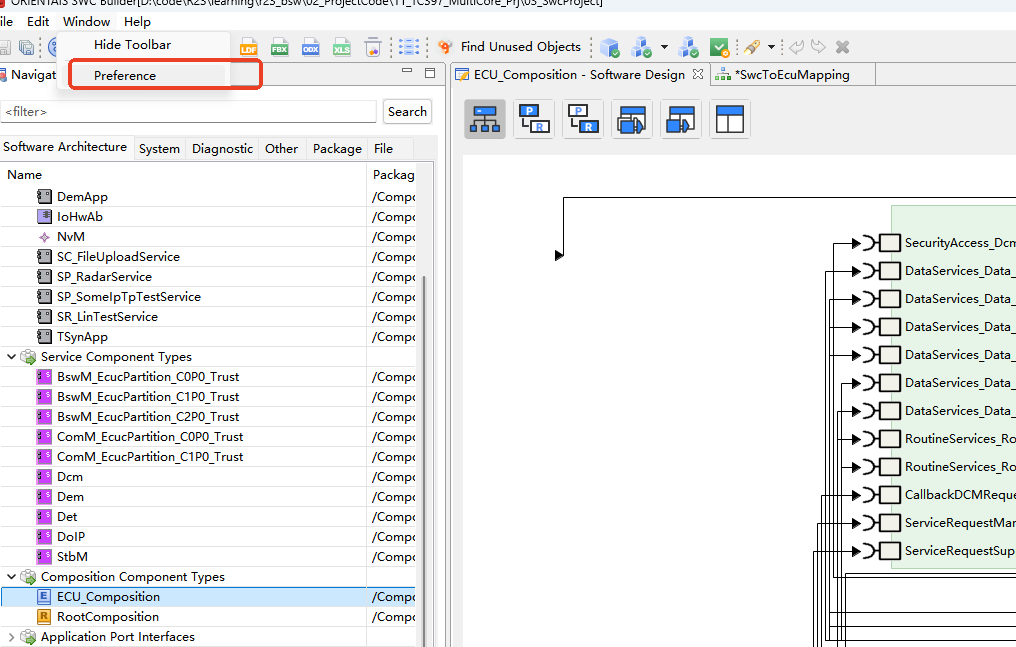

再次右键ECU_ComPosition打开图形化界面。

Right-click ECU_Composition again to open the graphical interface.

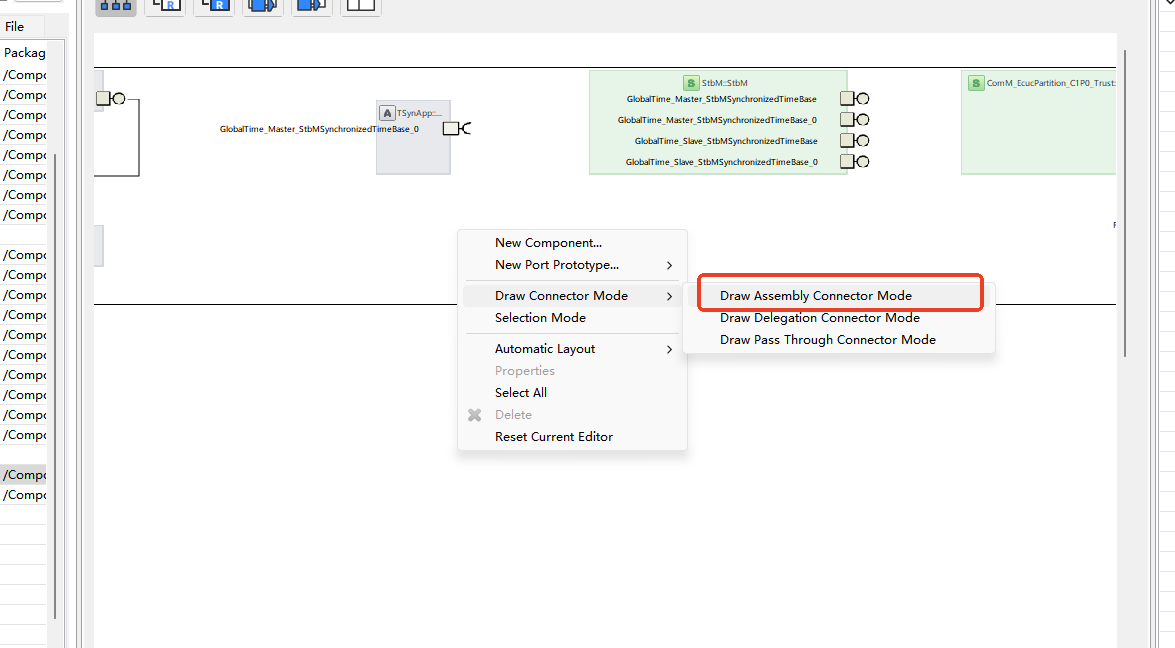

在空白处右键选择连接模式。

Right-click in the empty area and select the connection mode.

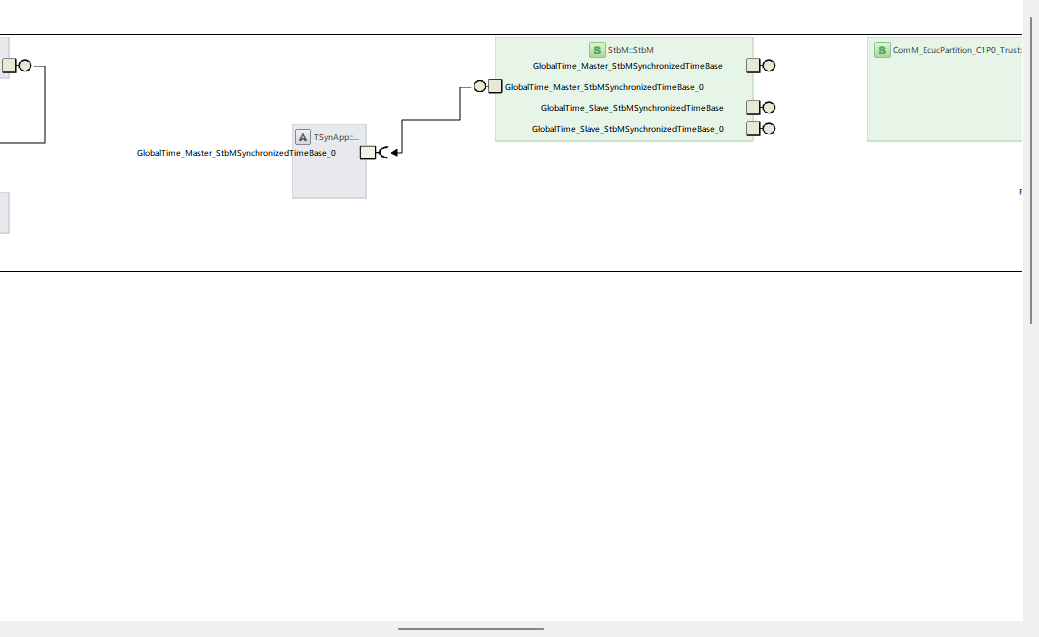

将StbM组件和TSynApp组件连接。

Connect the StbM component and the TSynApp component.

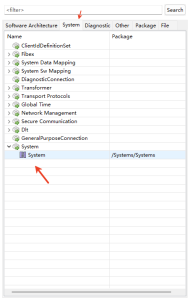

双击SysTem进入映射界面。

Double-click System to enter the mapping interface.

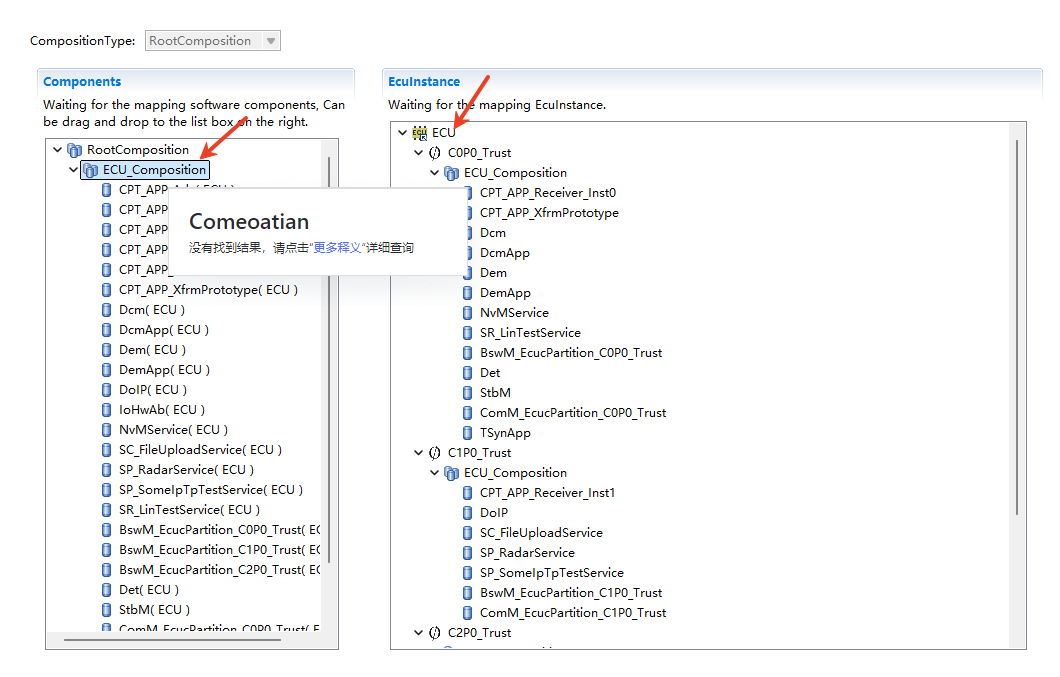

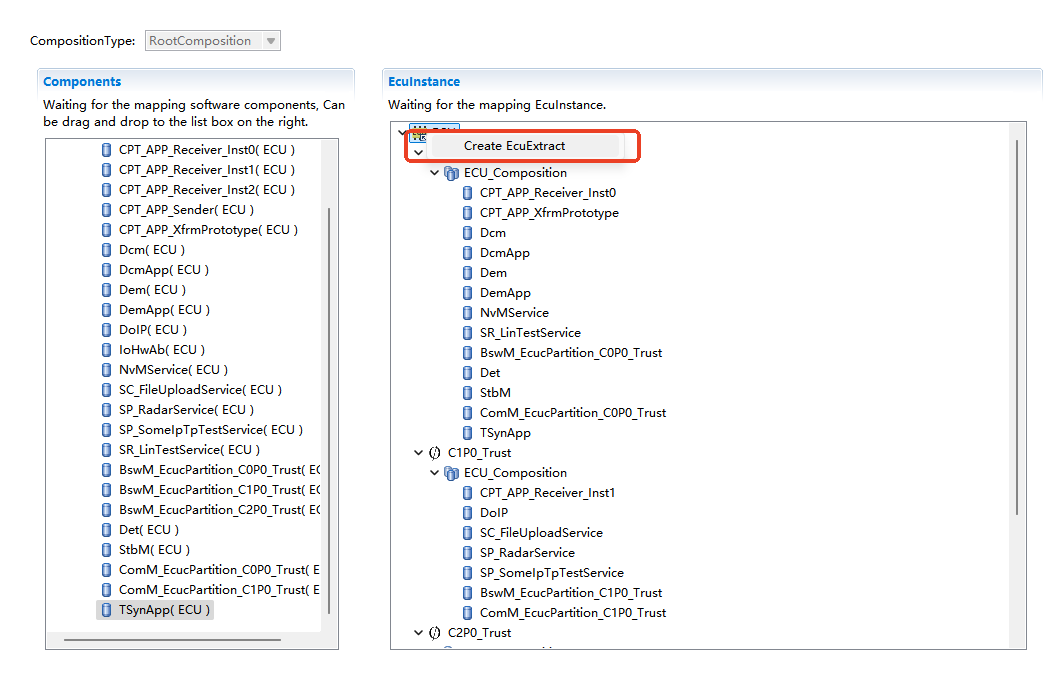

将ECU_Composition左键拖入ECU下，完成映射。

Drag ECU_Composition with the left mouse button under the ECU to complete the mapping.

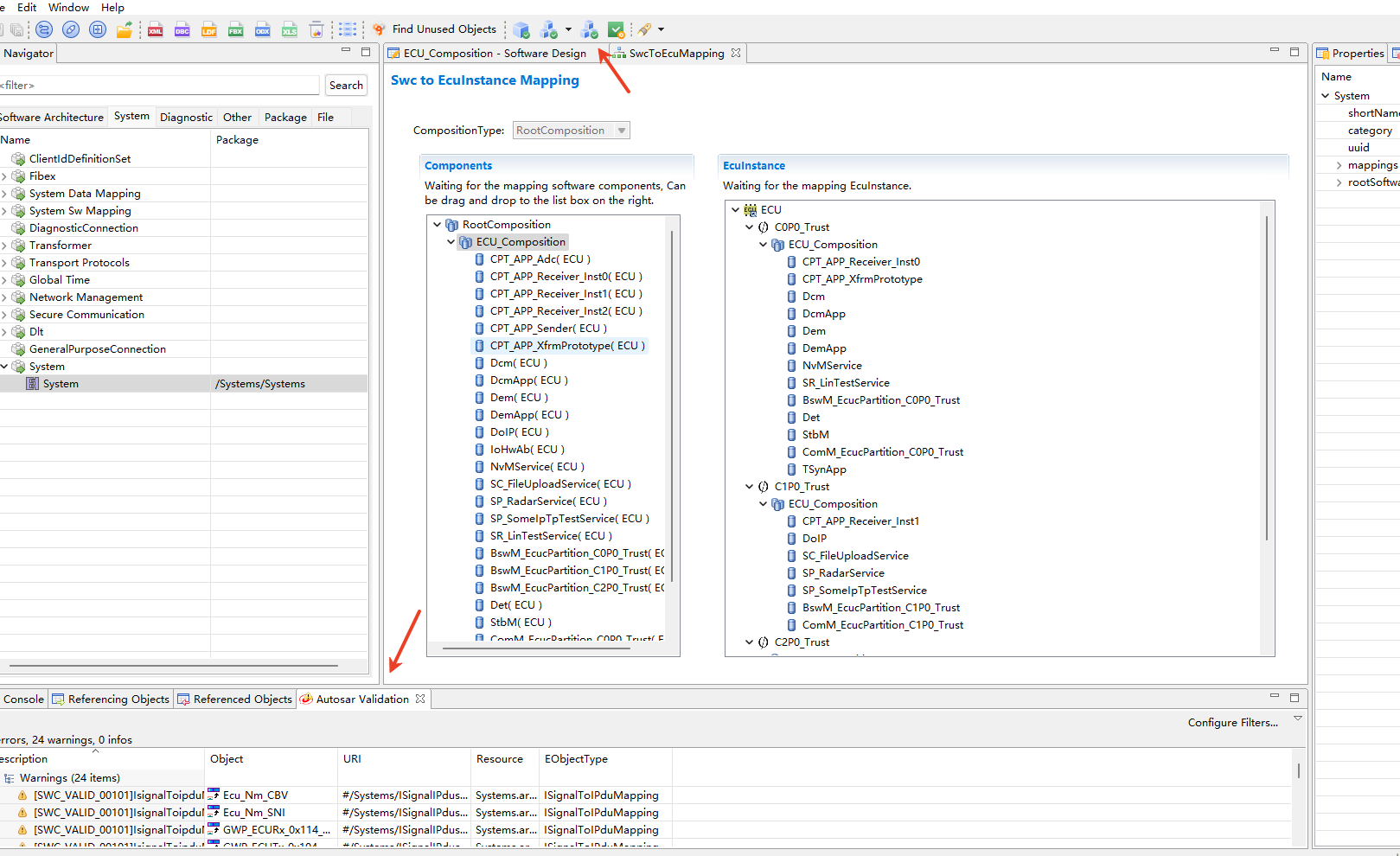

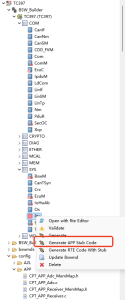

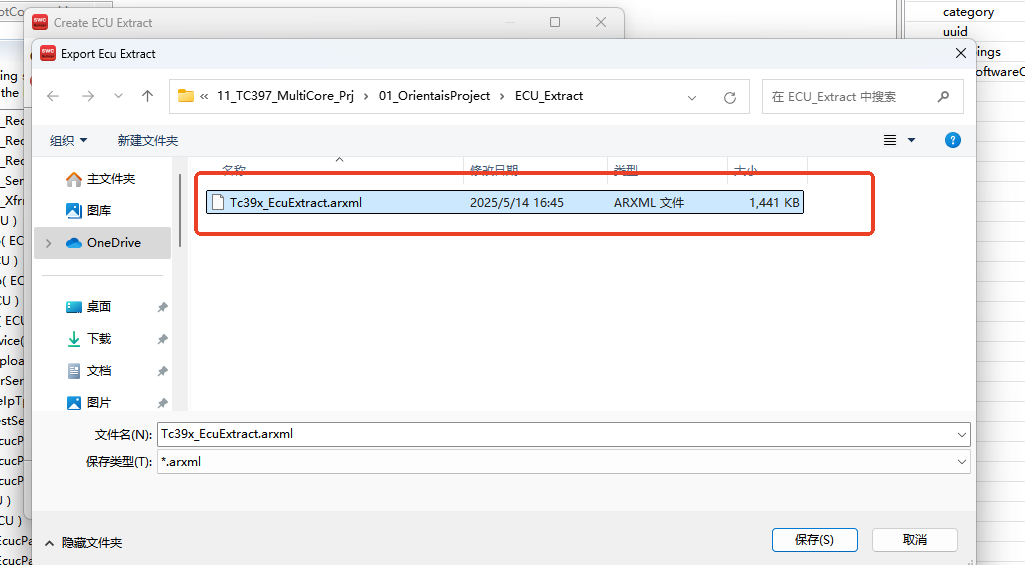

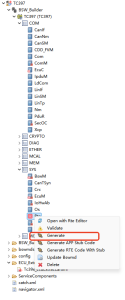

点击上方箭头处进行校验。在下方箭头处查看是否有报错。若无报错，则可按照下图进行萃取。

Click the arrow at the top to perform verification. Check the area indicated by the arrow below for any errors. If there are no errors, proceed with extraction as shown in the figure below.

如上图所示，在ECU处右键创建萃取文件。

As shown in the figure above, right-click the ECU to create the extraction file.

替换到原有工程下的萃取文件。

Replace the existing extraction file in the project directory.

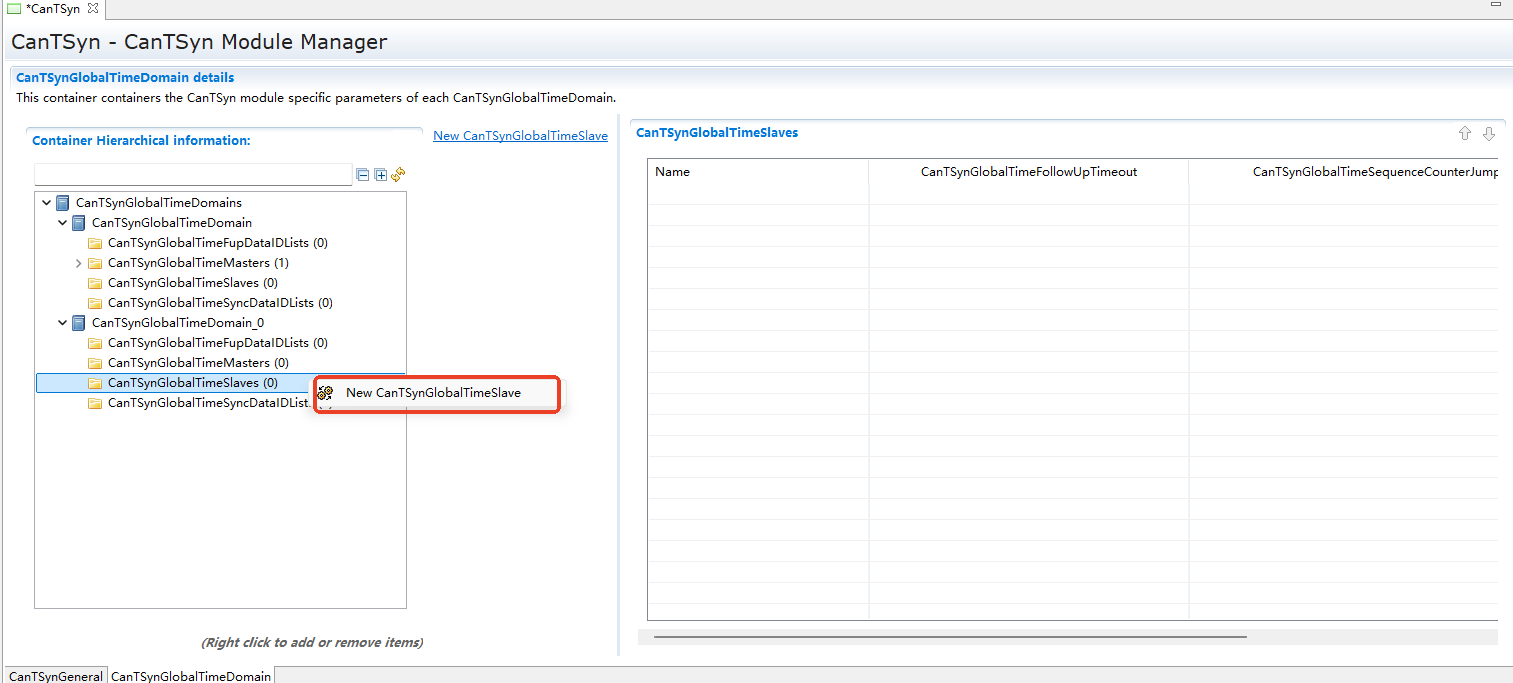

Slave配置

Slave Configuration

CanTSynGlobalTimeDomain配置与Master一致。区别在于需要设置的是CanTSynGlobalTimeSlave。

The CanTSynGlobalTimeDomain configuration is the same as that of the Master. The difference is that CanTSynGlobalTimeSlave needs to be configured.

1.设置FU报文的接收超时。指在这个时间内必须收到FU报文，否则丢弃。

1.Set the reception timeout for FUP messages. This means that the FUP message must be received within this time; otherwise, it is discarded.

2.设置CanTSynGlobalTimeSequenceCounterJumpWidth，指报文中的序列号SequenceCounter允许跳变的最大值，即可接受的最大丢帧数。

2.Set CanTSynGlobalTimeSequenceCounterJumpWidth, which specifies the maximum allowed jump for SequenceCounter in the message, i.e., the maximum number of acceptable lost frames.

3.由于不设置CRC校验，因此CanTSynRxCrcValidated需要设置为CRC_IGNORED。

3.Since CRC checksum is not being used, CanTSynRxCrcValidated must be set to CRC_IGNORED.
