Crypto_62¶
文档信息 Document Information¶
版本历史 Version History¶
日期(Date) |
作者(Author) |
版本(Version) |
状态(Status) |
说明(Description) |
|---|---|---|---|---|
2025/02/22 |
jie.gu |
V0.1 |
发布(Release) |
首次发布(First release) |
2025/04/04 |
jie.gu |
V1.0 |
发布(Release) |
正式发布(Official release) |
参考文档 References¶
编号(Number) |
分类(Classification) |
标题(Title) |
版本(Version) |
|---|---|---|---|
1 |
Autosar |
AUTOSAR_CP_SRS_CryptoStack.pdf |
R23-11 |
2 |
Autosar |
AUTOSAR_CP_SWS_CryptoDriver.pdf |
R23-11 |
术语与简写 Terms and Abbreviations¶
术语 Terms¶
术语(Terms) |
解释(Explanation) |
|---|---|
Crypto Driver Object |
Crypto Driver实现一个或多个Crypto Driver Object。Crypto Driver Object可通过硬件或软件提供不同的crypto primitive。同一Crypto Driver下的各个Crypto Driver Object彼此独立。每个Crypto Driver Object仅拥有一个workspace（即同一时间只能执行一个 crypto primitive）。(Crypto Driver realizes one or more Crypto Driver Objects.) The Crypto Driver Object can provide different crypto primitives via either hardware or software. Each Crypto Driver Object under the same Crypto Driver is independent from each other. Each Crypto Driver Object has one workspace only (i.e. only one crypto primitive can be executed each time). |
Key |
Key可由Csm中的job进行引用。在Crypto Driver中，该Key指向特定的key type。(Key can be referenced by job in Csm.) In Crypto Driver, this key points to the specific key type. |
Key Type |
key type由key element构成，且指向这些key element。通常，key type由Crypto Driver的供应商预先配置。(The key type consists of key elements and points to these key elements.) The key type is generally pre-configured by the supplier of the Crypto Driver. |
Key Element |
Key element用于存储数据。此类数据例如可以是密钥材料（key material），或是AES加密所需的初始向量（IV）；Key element还可用于配置密钥管理功能（key management functions）的行为。不同Key对应的Key element拥有不同的存储区域（包括非易失性存储区NV和随机存取存储区RAM）。(The key element is used for storing data.) This type of data can be key material or the initial vector (IV) required for AES encryption; furthermore, the Key elements can also be used for configuring the behavior of key management functions. The Key elements corresponding to different keys have different storage areas (including non-volatile memory NV and random access memory RAM). |
Job |
Job是已完成配置的 “CsmJob”。其中，Job会引用key、cryptographic primitive 以及reference channel等要素。(Job refers to the configured ‘CsmJob’.) To be specific, Job will reference elements such as key, cryptographic primitive, and reference channel. |
Channel |
channel是从Crypto Service Manager队列经Crypto Interface到特定Crypto Driver Object的路径。(Channel is the path from the Crypto Service Manager queue to a specific Crypto Driver Object via the Crypto Interface.) |
Primitive |
primitive是在Crypto Driver Object中实现的、已配置的加密算法（cryptographic algorithm）的实例。其中，primitive会引用CSM提供给应用的功能、具体的底层 “algorithmfamily”（如 AES、MD5、RSA等）以及 “algorithmmode”（如 ECB、CBC等）。(primitive is an instance of a configured cryptographic algorithm realized in the Crypto Driver Object.) To be specific, primitive will reference the functions provided by CSM for the application, the specific underlying “algorithm family” (such as AES, MD5, RSA, etc.), and “algorithm mod” (such as ECB, CBC, etc.). |
Operation |
crypto primitive的操作（operation）用于声明应执行该加密原语的哪部分功能。存在三种不同的操作类型：(The operation of crypto primitive is used for declaring the specific part of the function of the encryption primitive that should be executed) There’re three different operation types: |
START |
Operation表示一个新的crypto primitive请求，它应取消所有先前的请求，执行必要的初始化，并检查该加密原语是否可被处理。(Operation refers to a new crypto primitive request that should cancel all previous requests, perform necessary initialization, and check if the encryption primitive can be processed.) |
UPDATE |
Operation表示crypto primitive需要输入数据。更新操作（update operation）可提供中间结果。(Operation means that crypto primitive needs data inputting.) The update operation can provide intermediate results. |
FINISH |
Operation表示，至此所有数据已完全输入，crypto primitive可完成最终计算。完成操作（finish operation）可提供最终结果。(Operation means that all data has been fully inputted, and crypto primitive can complete the final calculation.) The finish operation can provide the final results. |
Priority |
job的priority定义了其重要程度。priority数值越高，job的执行就越紧急。cryptographic job的priority是配置的一部分。(The priority of job defines its level of importance.) The higher the priority value, the more urgent the job execution. The priority of cryptographic jobs is part of the configuration. |
Service |
service应按照《TR_Glossary》文档中的定义理解：service是一种operation类型，其接口（interface）和行为（behavior）具有公开的规范（published specification），涉及能力提供者（provider of the capability）与潜在客户端（potential clients）之间的约定（contract）。(Service should be understood according to the definition in the TR_Glossary file: Service refers to an operation type, the interface and behavior of which have published specifications. It involves the contract between providers of the capability and potential clients.) |
简写 Abbreviations¶
简写(Abbreviation) |
全称(Full name) |
解释(Explanation) |
|---|---|---|
CDD |
Complex Device Driver |
复杂设备驱动 |
CSM |
Crypto Service Manager |
加密服务管理器 |
CRYIF |
Crypto Interface |
加密接口层 |
CRYPTO |
Crypto Driver |
加密驱动 |
DET |
Default Error Tracer |
默认错误追踪器 |
HSM |
Hardware Security Module |
硬件安全模块 |
HW |
Hardware |
硬件 |
SHE |
Security Hardware Extension |
安全硬件扩展 |
SW |
Software |
软件 |
简介 Introduction¶
在AUTOSAR加密协议栈中，Crypto Driver处于最底层，为加密功能的最终处理模块。Crypto Driver会执行上层下发的算法任务，计算完成后把结果通过回调函数的方式通知到上层模块。加密算法可通过软件或者硬件HSM模块实现。在本文档中Crypto Driver主要指为软件方式实现的加密算法。
The Crypto Driver is at the bottom layer in the AUTOSAR encryption protocol stack, and serves as the final processing module for encryption functions. The Crypto Driver executes the algorithm tasks from the upper layer, and notifies the upper layer module of the results through callback functions after calculation is completed. The encryption algorithm can be implemented through software or hardware HSM modules. In this file, Crypto Driver mainly refers to encryption algorithms realized by software.
Crypto Driver能够向上层提供多种加密算法，如散列算法SHA、对称加密AES、非对称加密RSA以及随机数生成等。
Crypto Driver can provide several encryption algorithms for the upper layer, such as hash algorithm SHA, symmetric encryption AES, asymmetric encryption RSA, and random number generation.
功能描述 Functional Description¶
特性 Features¶
1.密钥管理
1.Key management
秘钥功能主要就是涉及到秘钥的保存与获取，包括公钥和私钥的生成等。秘钥通过Crypto_KeyElementSet把Key Element设置到内部Ram中，然后通过调用Crypto_KeySetValid把指定的key设置为有效。
The key function mainly includes the storage and retrieval of keys, including the generation of public and private keys. The key sets Key Element inside Ram through Crypto_KeyElementSet, and then sets the specified key valid by calling Crypto_KeySetValid.

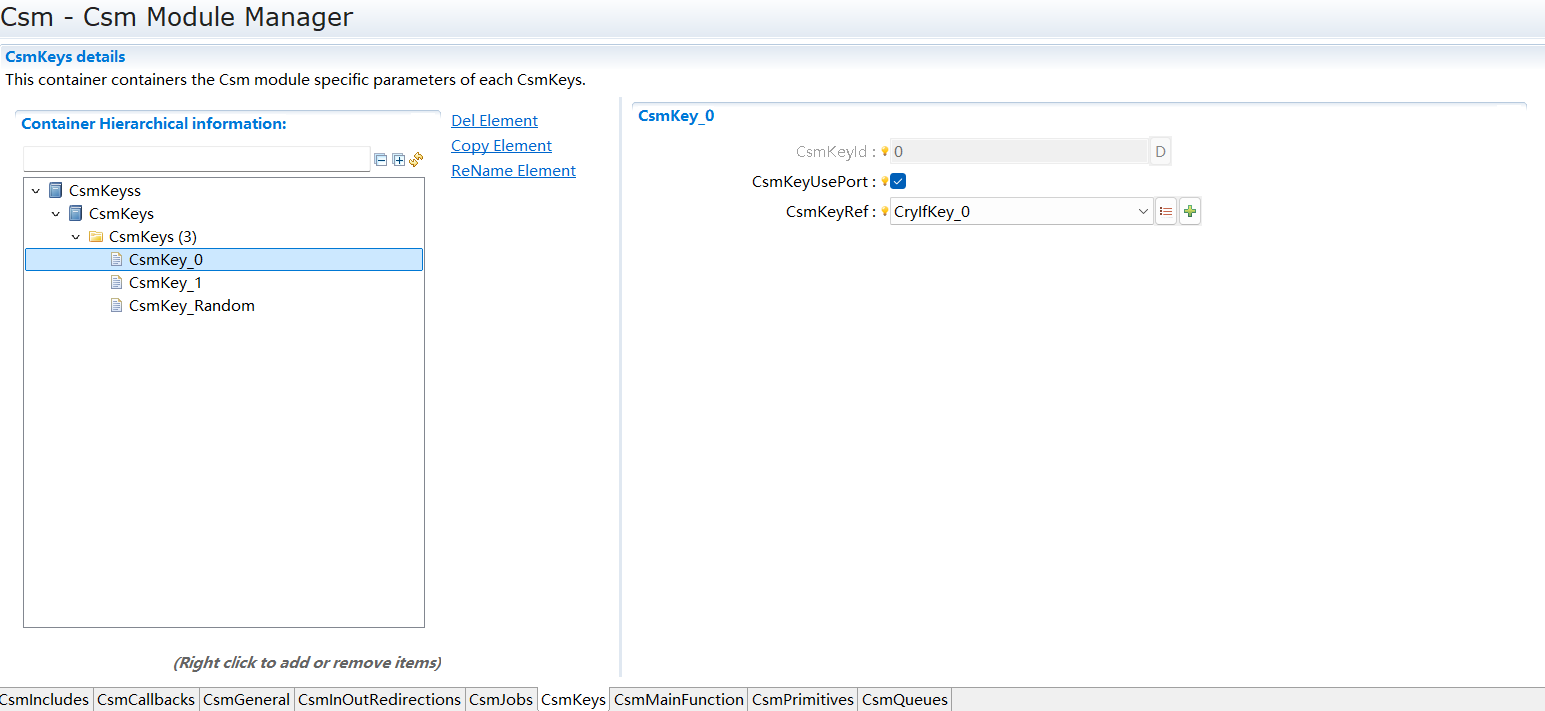

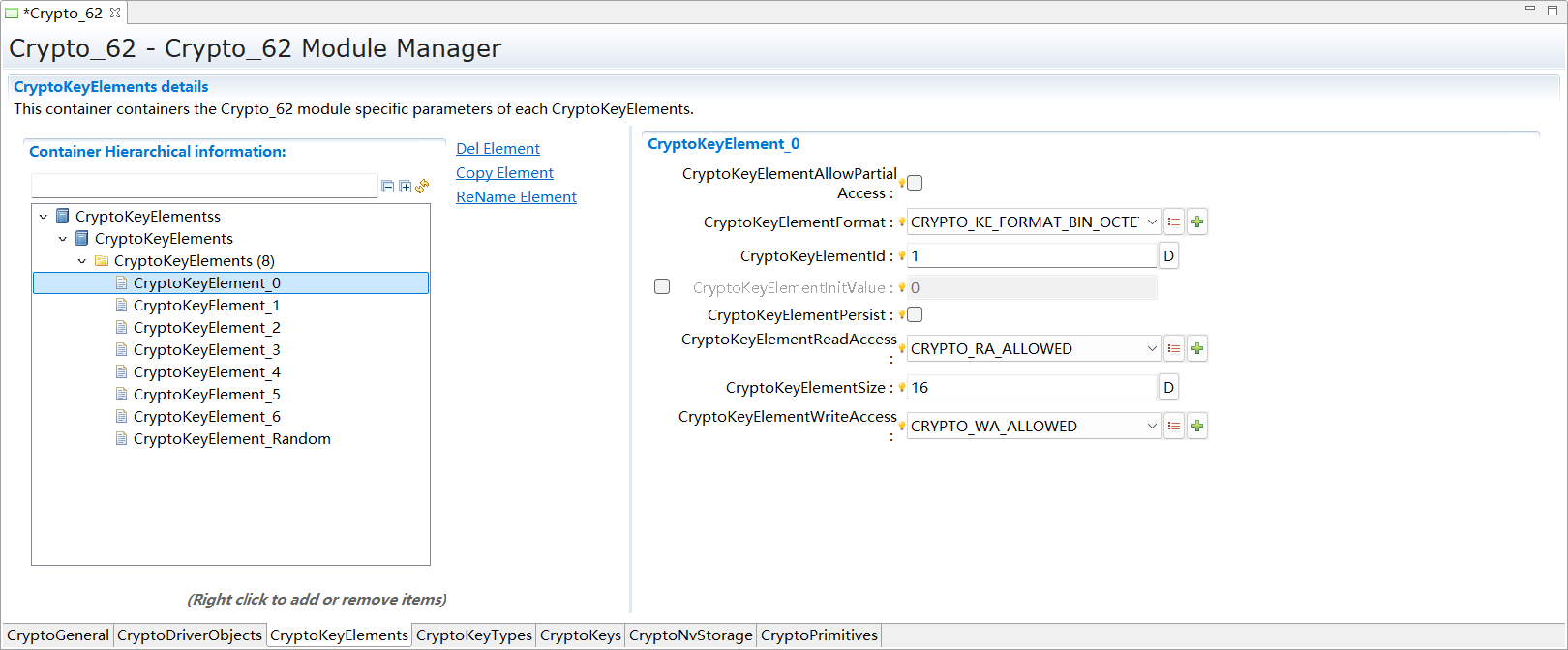

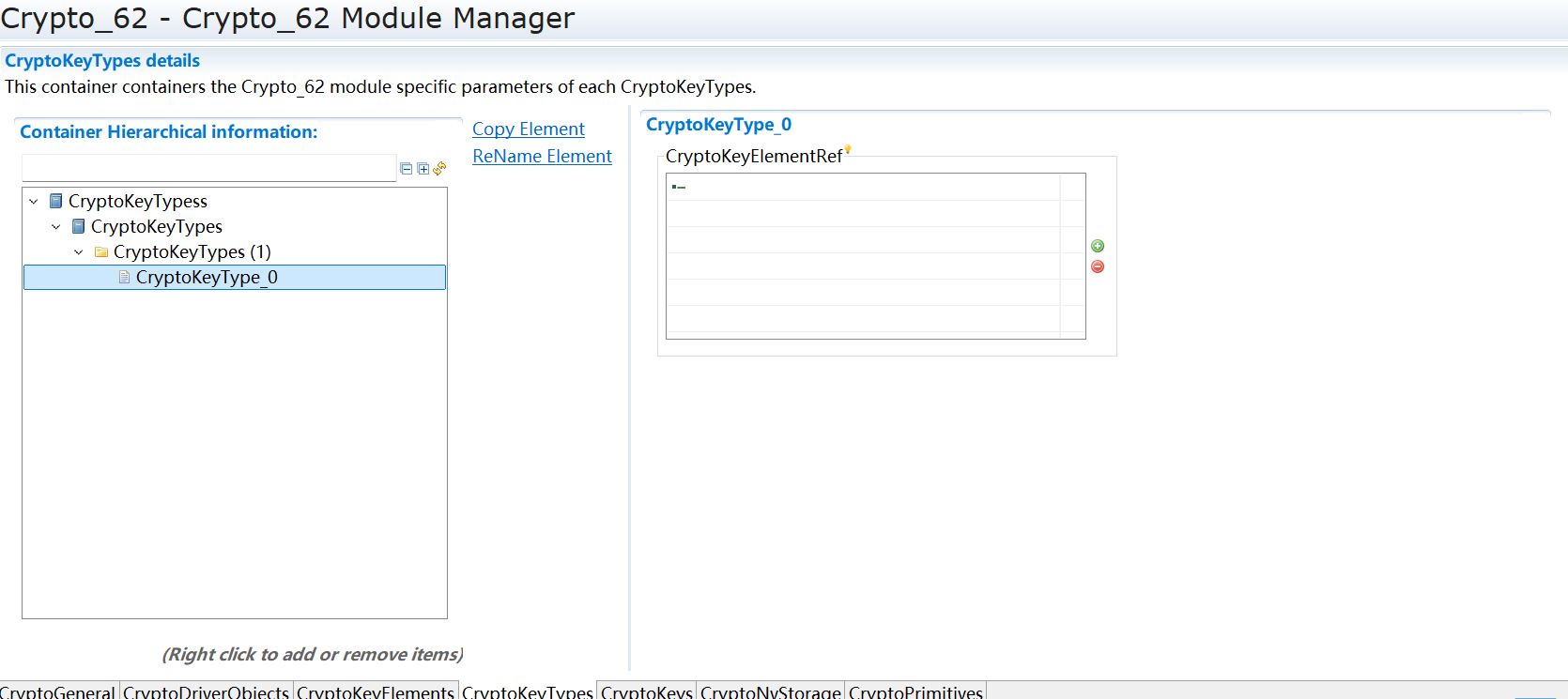

秘钥功能首先需要在Crypto中配置CryptoKeys，然后配置CryptoKeys->CryptoKeyTypes->CryptoKeyElements，不同的算法所需要的的Key Elements是不一样的，可参考[SWS_Csm_01022]规范，如下图：
To realize key function, first, configure CryptoKeys in Crypto, and then configure CryptoKeys->CryptoKeyTypes->CryptoKeyElements. Key Elements required for different algorithms are different (please refer to the [WS_Csm-01022] specification, as shown in the following figure:)
如MAC所示，使用时就可以配置3个KeyElement，分别为CRYPTO_KE_MAC_KEY（1），CRYPTO_KE_MAC_PROOF（2）以及CRYPTO_KE_KEYGENERATE_SEED（16）。
As shown in MAC, 3 KeyElement can be configured for use, including CRYPTO_KE_MAC_KEY (1), CRYPTO_KE_MAC_PROOF (2) and CRYPTO_KE_KEYGENERATE_SEED (16).
2.加密算法支持
2.Encryption algorithm supported
2.1HASH算法
2.1HASH algorithm

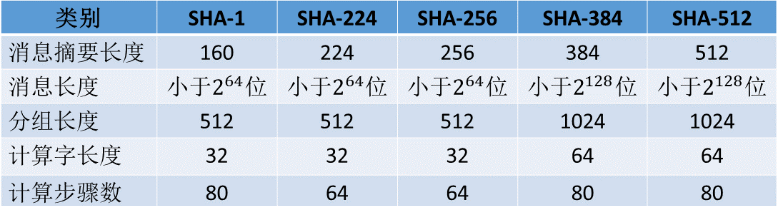

HASH（哈希）算法为不需要秘钥的算法，哈希算法又称杂凑算法，能将一定长度的消息计算出固定长度的字符串（又称消息摘要）。SHA包含11个算法，分别是SHA-1、SHA2-224、SHA2-256、SHA2-384,SHA2-512，SHA3-224、SHA3-256、SHA3-384和SHA3-512,SM3,RIPEMD160。SHA-1最大计算明文长度为2^64bit，属于分组算法，分组长度为512bit，产生的信息摘要长度为160bit，也就是20个字节。
The HASH algorithm requires no secret key. It can calculate a fixed length string (also known as message digest) from a certain length of message. SHA includes 11 algorithms, including SHA-1, SHA2-224, SHA2-256, SHA2-384,SHA2-512，SHA3-224, SHA3-256, SHA3-384, SHA3-512,SM3 and RIPEMD160. With a maximum plaintext length of 2^64 bits, SHA-1 belongs to the group algorithm. The group length is 512 bits, and the generated information digest length is 160 bits or 20 bytes.
2.2MAC算法
2.2MAC algorithm
MAC算法， SecOc比较常使用的算法，即带秘密密钥的Hash算法。消息的散列值由只有通信双方知道的秘钥K来控制。此时Hash值称作MAC。先对报文第一个64bit加密，得到64bit的加密后数据data1，接着再拿加密后的data1与报文第二个64bit数据进行按位异或，得到同样长64bit的数据data2，再用Key对data2加密，得到加密后的数据data3，再拿data3与报文第三个64bit数据进行按位异或，同样的处理依次类推，直到最后会得到一个64bit的数据，这个算法就叫做MAC算法。
MAC algorithm, a commonly used algorithm in SecOc, refers to the Hash algorithm with a secret key. The hash value of message is controlled by a secret key K known by the parties in communication parties only. In such case, Hash is called MAC. First, encrypt the first 64 bits of the message to obtain the encrypted data 1 of the 64 bits. Then, perform bitwise XOR between the encrypted data 1 and the second 64 bit data of the message to obtain the data 2 of the 64 bits with the same length. Encrypt data 2 with Key to obtain the encrypted data 3. Finally, perform bitwise XOR between data 3 and the third 64 bit data of the message, and do the rest in the same manner until a 64 bit data is obtained. This algorithm is called the MAC algorithm.
2.3AES算法
2.3AES algorithm

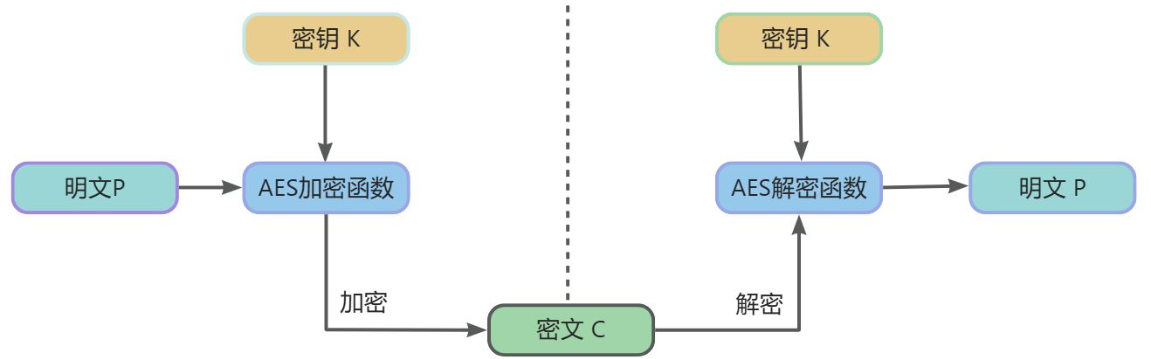

AES的处理单位是字节，128位的输入明文分组P和输入密钥K都被分成16个字节，分别记为P = P0 P1 … P15 和 K = K0 K1 … K15。如，明文分组为P = abcdefghijklmnop，其中的字符a对应P0，p对应P15。一般地，明文分组用字节为单位的正方形矩阵描述，称为状态矩阵。在算法的每一轮中，状态矩阵的内容不断发生变化，最后的结果作为密文输出。
The processing unit of AES is byte. The 128 bit input plaintext packet P and input key K are divided into 16 bytes, which are recorded as P=P0 P1… P15 and K=K0 K1… K15, respectively. For example, the plaintext is grouped as P = abcdefghijklmnop, where the character a corresponds to P0 and p corresponds to P15. General speaking, the plaintext grouping is described by a square matrix, the unit of which is byte, which is called state matrix. In each round of the algorithm, the content of the state matrix constantly changes, and the final result is output as ciphertext.
2.4RSA算法
2.4RSA algorithm
非对称加密指双方用不同的KEY加密和解密明文，通信双方都要有自己公共密钥和私有密钥。举个例子比较容易理解，我们们假设通信双方分别是A,B。A拥有KEY_A1（私钥），KEY_A2（公钥）。B拥有KEY_B1（私钥）,KEY_B2（公钥）。公钥和私钥的特点是，经过其中任何一把加密过的明文，只能用另外一把才能够解开。也就是说经过KEY_A1加密过的明文，只有KEY_A2才能够解密，反之亦然。
The asymmetric encryption means encrypting and decrypting plaintext using different KEYS. Both parties in communication have their own public and private keys. It can be understood easier by an example. Suppose the parties in communication are A and B, A has KEY_A1 (private key) and KEY_A2 (public key). B has KEY_B1 (private key) and KEY_B2 (public key). The characteristic of public and private keys is that plaintext encrypted by either one can only be decrypted by the other. In other words, the plaintext encrypted by KEY_A1 can only be decrypted by KEY_A2, and vice versa.
3.队列功能
3.Queue function
由于软件加密算法可能比较耗时，所以个别的算法可以配置为异步模式，即把内容传给下层后，下层不会直接运算，而是会根据下层的功能机制，在后续的mainfunction中对加密任务进行计算，并通过回调函数返回给上层。
As the software encryption algorithm may cost a lot of time, some algorithms can be configured in asynchronous mode, which means transmitting the content to the lower layer. Instead of performing calculation directly, the lower layer will calculate the encryption task in the subsequent mainfunction based on the function mechanism of lower layer and return it to the upper layer through a callback function.
由于异步加密任务可能存在延迟，例如未完成一次计算，又传入了很多其它的加密任务，这时可以启用队列功能。队列功能打开后，便可以同时缓存多个加密任务，每次在Crypto_Mainfunction中去依次执行缓存队列中的加密任务。
As asynchronous encryption task may be delayed, such as the failure in finishing calculation and transmission of many other encryption tasks, the queue function can be enabled. After the queue function is enabled, several encryption tasks can be cached at the same time. During each time, the encryption tasks in the cache queue are executed sequentially in Crypto_Sainfunction.
通过配置项CryptoQueueSize定义队列大小。CSM和Crypto Driver中均可定义队列，两者的功能大体一致，一般情况下是两者选其一即可。
The queue size is defined through the configuration item CryptoQueueSize. Both CSM and Crypto Driver can define queues and basically have the same functions. Either of them is required in general.
偏差 Deviation¶
其他SWS支持的算法正在逐步移植开发中.
Other algorithms supported by SWS are under transplantation and development.
扩展 Extension¶
None
集成 Integration¶
文件列表 File List¶
Crypto_62组件文件组织结构描述. (Description of Crypto_62 organization file organization structure.)¶
如图 Crypto_62组件文件组织结构描述. (Description of Crypto_62 organization file organization structure.) 所示，Crypto_62模块的文件引用关系如下：
As shown in the figure Crypto_62组件文件组织结构描述. (Description of Crypto_62 organization file organization structure.), the file reference relationship of the Crypto_62 module is as follows:
静态文件 Static Files¶
None
动态文件 Dynamic Files¶
文件(File)
描述(Description)
Crypto_62_Cfg.h
定义Crypto Driver模块预编译时用到的配置参数。(Defines the configuration parameters used for pre-compiling the Crypto Driver module.)
Crypto_62_Cfg.c
定义Crypto Driver模块中PC配置参数。(Defines the configuration parameters of PC in the Crypto Driver module.)
Crypto_62.h
Crypto_62模块头文件，包含了API函数的扩展声明并定义了端口的数据结构。(The Crypto_62 module header file contains extension declarations for API functions and defines the data structure of port.)
Crypto_62.c
Crypto_62模块源文件，包含了外部API函数的实现。(The Crypto_62 module source file, which contains the realization of external API functions.)
Crypto_62_internal.c
定义内部函数的实现，如查找配置，缓存拷贝等.(-Define the realization of internal functions, such as searching configurations, caching copies, etc)
Crypto_62_internal.h
定义内部数据结构，内部函数声明等.(Defines internal data structures, internal function declarations, etc.)
Crypto_62_Types.h
定义规范中定义的数据结构等.(Defines the data structure, etc. defined in the specification)
Crypto_MemMap.h
定义数据、代码所用的Memmap段。(Defines the Memmap segment used for data and code.)
Crypto_62_KeyManagerment.c
包含了Crypto_62模块中密钥管理部分API函数的实现。(Contains the realization of API functions for key management in the Crypto_62 module.)
错误处理 Error Handling¶
开发错误 Development Errors¶
Error code
Value[hex]
Description
CRYPTO_E_UNINIT
0x00
API request called before initialization of CryptoDriver.
CRYPTO_E_INIT_FAILED
0x01
Initialization of Crypto Driver failed
CRYPTO_E_PARAM_POINTER
0x02
API request called with invalid parameter(Nullpointer without redirection).
CRYPTO_E_PARAM_HANDLE
0x04
API request called with invalid parameter (out ofrange).
CRYPTO_E_PARAM_VALUE
0x05
API request called with invalid parameter (invalidvalue).
CRYPTO_E_SMALL_BUFFER
0x06
Buffer is too small for operation
产品错误 Product Errors¶
None
运行时错误 Runtime Errors¶
Error code
Value[hex]
Description
CRYPTO_E_RE_ENTROPY_EXHAUSTED
0x03
Entropy is too low
CRYPTO_E_RE_NVM_ACCESS_FAILED
0x04
NVM access has failed
应用程序集成 Application Integration¶
1.依赖模块
1.Dependency module

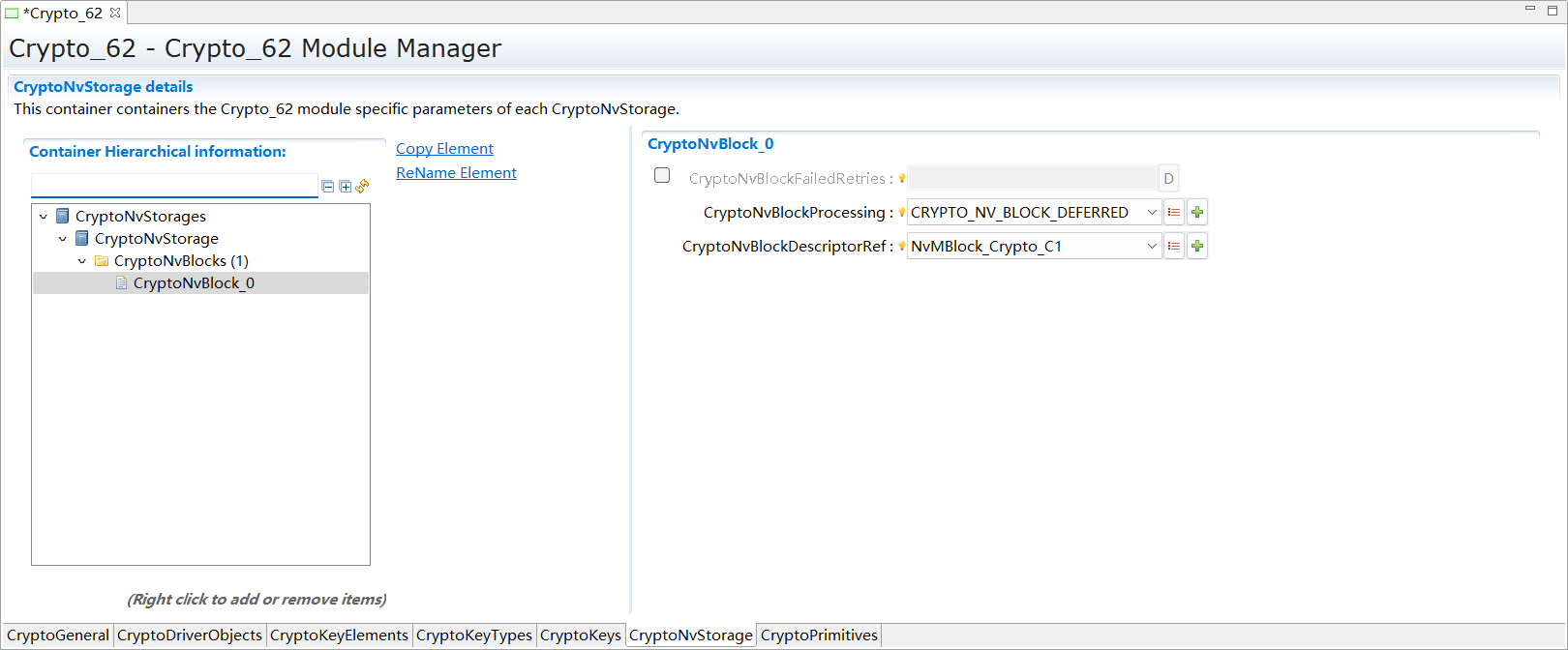

CryptoDriver作为最底层驱动模块，其依赖模块可以为空。当需要存储秘钥等信息时，需要依赖NVM模块。
CryptoDriver is the lowest underlying driver module, whose dependency modules can be empty. Use NVM module when storing keys and other information.
外部类型定义 Definition of External Types¶
Type Name |
Type |
Description |
|---|---|---|
Crypto_62_ConfigType |
uint8 |
Configuration type. |
提供外部的服务 External Services Provided¶
Crypto_62_Init¶
void Crypto_62_Init(const Crypto_62_ConfigType *configPtr)
Initializes the Crypto_62 module.
- Sync/Async
TRUE
- Reentrancy
Not reentrant
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
configPtr |
Pointer to the Crypto_62 configuration structure. |
- Return type
void
Crypto_62_GetVersionInfo¶
void Crypto_62_GetVersionInfo(Std_VersionInfoType *versioninfo)
Retrieves the version information of the Crypto_62 module.
- Sync/Async
TRUE
- Reentrancy
Not reentrant
Parameters
Dir |
Name |
Description |
|---|---|---|
[out] |
versioninfo |
Pointer to the version information structure. |
- Return type
void
Crypto_62_ProcessJob¶
Std_ReturnType Crypto_62_ProcessJob(uint32 objectId, Crypto_JobType *job)
Processes a cryptographic job.
- Sync/Async
TRUE
- Reentrancy
Not reentrant for the same object ID
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
objectId |
The ID of the cryptographic object. |
[in] |
job |
Pointer to the cryptographic job structure. |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The job was processed successfully. |
E_NOT_OK |
The job could not be processed due to an error. |
CRYPTO_E_BUSY |
The cryptographic object is busy. |
CRYPTO_E_PARAM_HANDLE |
The job’s service or key ID is invalid. |
CRYPTO_E_PARAM_POINTER |
The job pointer is NULL. |
CRYPTO_E_UNINIT |
The Crypto_62 module is not initialized. |
Crypto_62_CancelJob¶
Std_ReturnType Crypto_62_CancelJob(uint32 objectId, Crypto_JobType *job)
Cancels a cryptographic job.
- Sync/Async
TRUE
- Reentrancy
Not reentrant for the same object ID
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
objectId |
The ID of the cryptographic object. |
[in] |
job |
Pointer to the cryptographic job structure. |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The job was canceled successfully. |
E_NOT_OK |
The job could not be canceled due to an error. |
CRYPTO_E_JOB_CANCELED |
The job was canceled and the callback was notified. |
CRYPTO_E_PARAM_HANDLE |
The object ID is invalid. |
CRYPTO_E_PARAM_POINTER |
The job pointer is NULL. |
CRYPTO_E_UNINIT |
The Crypto_62 module is not initialized. |
Crypto_62_KeyElementSet¶
Std_ReturnType Crypto_62_KeyElementSet(uint32 cryptokeyId, uint32 keyElementId, const uint8 *keyPtr, uint32 keyLength)
Sets a key element for a cryptographic key.
- Sync/Async
TRUE
- Reentrancy
Not reentrant
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
cryptokeyId |
The ID of the cryptographic key. |
[in] |
keyElementId |
The ID of the key element to set. |
[in] |
keyPtr |
Pointer to the key data. |
[in] |
keyLength |
The length of the key data. |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The key element was set successfully. |
E_NOT_OK |
The key element could not be set due to an error. |
CRYPTO_E_PARAM_HANDLE |
The cryptographic key ID is invalid. |
CRYPTO_E_PARAM_POINTER |
The key pointer is NULL. |
CRYPTO_E_PARAM_VALUE |
The key length is zero. |
CRYPTO_E_UNINIT |
The Crypto_62 module is not initialized. |
Crypto_62_KeySetValid¶
Std_ReturnType Crypto_62_KeySetValid(uint32 cryptoKeyId)
Sets a cryptographic key to a valid state.
- Sync/Async
TRUE
- Reentrancy
Not reentrant
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
cryptoKeyId |
The ID of the cryptographic key. |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The key was set to a valid state successfully. |
E_NOT_OK |
The key could not be set to a valid state due to an error. |
CRYPTO_E_PARAM_HANDLE |
The cryptographic key ID is invalid. |
CRYPTO_E_UNINIT |
The Crypto_62 module is not initialized. |
CRYPTO_E_RE_NVM_ACCESS_FAILED |
Access to the NVM block failed. |
Crypto_62_KeySetInValid¶
Std_ReturnType Crypto_62_KeySetInValid(uint32 cryptoKeyId)
Sets a cryptographic key to an invalid state.
- Sync/Async
TRUE
- Reentrancy
Not reentrant
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
cryptoKeyId |
The ID of the cryptographic key. |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The key was set to an invalid state successfully. |
E_NOT_OK |
The key could not be set to an invalid state due to an error. |
CRYPTO_E_PARAM_HANDLE |
The cryptographic key ID is invalid. |
CRYPTO_E_UNINIT |
The Crypto_62 module is not initialized. |
Crypto_62_KeyElementGet¶
Std_ReturnType Crypto_62_KeyElementGet(uint32 cryptoKeyId, uint32 keyElementId, uint8 *resultPtr, uint32 *resultLengthPtr)
Retrieves a key element from a cryptographic key.
- Sync/Async
TRUE
- Reentrancy
Not reentrant
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
cryptoKeyId |
The ID of the cryptographic key. |
[in] |
keyElementId |
The ID of the key element to retrieve. |
[out] |
resultPtr |
Pointer to the buffer where the key element will be stored. |
[inout] |
resultLengthPtr |
Pointer to the length of the buffer. On return, it contains the actual length of the key element. |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The key element was retrieved successfully. |
E_NOT_OK |
The key element could not be retrieved due to an error. |
CRYPTO_E_PARAM_HANDLE |
The cryptographic key ID is invalid or the key is not valid. |
CRYPTO_E_PARAM_POINTER |
The result pointer or result length pointer is NULL. |
CRYPTO_E_PARAM_VALUE |
The result length is zero. |
CRYPTO_E_SMALL_BUFFER |
The result buffer is too small. |
CRYPTO_E_KEY_READ_FAIL |
The key element cannot be read due to access restrictions. |
CRYPTO_E_UNINIT |
The Crypto_62 module is not initialized. |
Crypto_62_KeyGetStatus¶
Std_ReturnType Crypto_62_KeyGetStatus(uint32 cryptoKeyId, Crypto_KeyStatusType *keyStatusPtr)
Retrieves the status of a cryptographic key.
- Sync/Async
TRUE
- Reentrancy
Not reentrant
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
cryptoKeyId |
The ID of the cryptographic key. |
[out] |
keyStatusPtr |
Pointer to the variable where the key status will be stored. |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The key status was retrieved successfully. |
E_NOT_OK |
The key status could not be retrieved due to an error. |
CRYPTO_E_PARAM_HANDLE |
The cryptographic key ID is invalid. |
CRYPTO_E_PARAM_POINTER |
The key status pointer is NULL. |
CRYPTO_E_UNINIT |
The Crypto_62 module is not initialized. |
Crypto_62_KeyElementCopy¶
Std_ReturnType Crypto_62_KeyElementCopy(uint32 cryptoKeyId, uint32 keyElementId, uint32 targetCryptoKeyId, uint32 targetKeyElementId)
Copies a key element from one cryptographic key to another.
- Sync/Async
TRUE
- Reentrancy
Not reentrant
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
cryptoKeyId |
The ID of the source cryptographic key. |
[in] |
keyElementId |
The ID of the key element to copy from the source key. |
[in] |
targetCryptoKeyId |
The ID of the target cryptographic key. |
[in] |
targetKeyElementId |
The ID of the key element to copy to in the target key. |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The key element was copied successfully. |
E_NOT_OK |
The key element could not be copied due to an error. |
CRYPTO_E_PARAM_HANDLE |
The source or target cryptographic key ID is invalid. |
CRYPTO_E_KEY_READ_FAIL |
The source key element cannot be read due to access restrictions. |
CRYPTO_E_KEY_WRITE_FAIL |
The target key element cannot be written due to access restrictions. |
CRYPTO_E_KEY_SIZE_MISMATCH |
The source and target key elements have different sizes. |
CRYPTO_E_UNINIT |
The Crypto_62 module is not initialized. |
Crypto_62_KeyElementCopyPartial¶
Std_ReturnType Crypto_62_KeyElementCopyPartial(uint32 cryptoKeyId, uint32 keyElementId, uint32 keyElementSourceOffset, uint32 keyElementTargetOffset, uint32 keyElementCopyLength, uint32 targetCryptoKeyId, uint32 targetKeyElementId)
Copies a partial key element from one cryptographic key to another.
- Sync/Async
TRUE
- Reentrancy
Not reentrant
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
cryptoKeyId |
The ID of the source cryptographic key. |
[in] |
keyElementId |
The ID of the key element to copy from the source key. |
[in] |
keyElementSourceOffset |
The offset in the source key element where the copy starts. |
[in] |
keyElementTargetOffset |
The offset in the target key element where the copy starts. |
[in] |
keyElementCopyLength |
The length of the data to be copied. |
[in] |
targetCryptoKeyId |
The ID of the target cryptographic key. |
[in] |
targetKeyElementId |
The ID of the key element to copy to in the target key. |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The partial key element was copied successfully. |
E_NOT_OK |
The partial key element could not be copied due to an error. |
CRYPTO_E_PARAM_HANDLE |
The source or target cryptographic key ID is invalid. |
CRYPTO_E_KEY_READ_FAIL |
The source key element cannot be read due to access restrictions. |
CRYPTO_E_KEY_WRITE_FAIL |
The target key element cannot be written due to access restrictions. |
CRYPTO_E_KEY_SIZE_MISMATCH |
The source and target key elements have different sizes or the copy length exceeds the element size. |
CRYPTO_E_UNINIT |
The Crypto_62 module is not initialized. |
Crypto_62_KeyCopy¶
Std_ReturnType Crypto_62_KeyCopy(uint32 cryptoKeyId, uint32 targetCryptoKeyId)
Copies all key elements from one cryptographic key to another.
- Sync/Async
TRUE
- Reentrancy
Not reentrant
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
cryptoKeyId |
The ID of the source cryptographic key. |
[in] |
targetCryptoKeyId |
The ID of the target cryptographic key. |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
All key elements were copied successfully. |
E_NOT_OK |
The key elements could not be copied due to an error. |
CRYPTO_E_PARAM_HANDLE |
The source or target cryptographic key ID is invalid. |
CRYPTO_E_UNINIT |
The Crypto_62 module is not initialized. |
Crypto_62_KeyElementIdsGet¶
Std_ReturnType Crypto_62_KeyElementIdsGet(uint32 cryptoKeyId, uint32 *keyElementIdsPtr, uint32 *keyElementIdsLengthPtr)
Retrieves the IDs and lengths of all key elements for a cryptographic key.
- Sync/Async
TRUE
- Reentrancy
Not reentrant
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
cryptoKeyId |
The ID of the cryptographic key. |
[out] |
keyElementIdsPtr |
Pointer to the array where the key element IDs will be stored. |
[out] |
keyElementIdsLengthPtr |
Pointer to the array where the key element lengths will be stored. |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The key element IDs and lengths were retrieved successfully. |
E_NOT_OK |
The key element IDs and lengths could not be retrieved due to an error. |
CRYPTO_E_PARAM_HANDLE |
The cryptographic key ID is invalid. |
CRYPTO_E_UNINIT |
The Crypto_62 module is not initialized. |
Crypto_62_RandomSeed¶
Std_ReturnType Crypto_62_RandomSeed(uint32 cryptoKeyId, const uint8 *seedPtr, uint32 seedLength)
Seeds the random number generator with a given seed.
- Sync/Async
TRUE
- Reentrancy
Not reentrant
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
cryptoKeyId |
The ID of the cryptographic key associated with the random number generator. |
[in] |
seedPtr |
Pointer to the seed data. |
[in] |
seedLength |
The length of the seed data. |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The random number generator was seeded successfully. |
E_NOT_OK |
The random number generator could not be seeded due to an error. |
CRYPTO_E_PARAM_HANDLE |
The cryptographic key ID is invalid. |
CRYPTO_E_PARAM_POINTER |
The seed pointer is NULL. |
CRYPTO_E_PARAM_VALUE |
The seed length is zero. |
CRYPTO_E_KEY_NOT_VALID |
The cryptographic key is not valid. |
CRYPTO_E_UNINIT |
The Crypto_62 module is not initialized. |
Crypto_62_KeyGenerate¶
Std_ReturnType Crypto_62_KeyGenerate(uint32 cryptoKeyId)
Generates a cryptographic key.
- Sync/Async
TRUE
- Reentrancy
Not reentrant
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
cryptoKeyId |
The ID of the cryptographic key to generate. |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The key was generated successfully. |
E_NOT_OK |
The key could not be generated due to an error. |
CRYPTO_E_PARAM_HANDLE |
The cryptographic key ID is invalid. |
CRYPTO_E_UNINIT |
The Crypto_62 module is not initialized. |
Crypto_62_KeyDerive¶
Std_ReturnType Crypto_62_KeyDerive(uint32 cryptoKeyId, uint32 targetCryptoKeyId)
Derives a cryptographic key from another key.
- Sync/Async
TRUE
- Reentrancy
Not reentrant
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
cryptoKeyId |
The ID of the source cryptographic key. |
[in] |
targetCryptoKeyId |
The ID of the target cryptographic key to derive. |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The key was derived successfully. |
E_NOT_OK |
The key could not be derived due to an error. |
CRYPTO_E_PARAM_HANDLE |
The source or target cryptographic key ID is invalid. |
CRYPTO_E_UNINIT |
The Crypto_62 module is not initialized. |
Crypto_62_KeyExchangeCalcPubVal¶
Std_ReturnType Crypto_62_KeyExchangeCalcPubVal(uint32 cryptoKeyId, uint8 *publicValuePtr, uint32 *publicValueLengthPtr)
Calculates the public value for a key exchange operation.
- Sync/Async
TRUE
- Reentrancy
Not reentrant
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
cryptoKeyId |
The ID of the cryptographic key used for the key exchange. |
[out] |
publicValuePtr |
Pointer to the buffer where the public value will be stored. |
[inout] |
publicValueLengthPtr |
Pointer to the length of the public value buffer. On return, it contains the actual length of the public value. |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The public value was calculated successfully. |
E_NOT_OK |
The public value could not be calculated due to an error. |
CRYPTO_E_PARAM_HANDLE |
The cryptographic key ID is invalid. |
CRYPTO_E_PARAM_POINTER |
The public value pointer or public value length pointer is NULL. |
CRYPTO_E_PARAM_VALUE |
The public value length is zero. |
CRYPTO_E_UNINIT |
The Crypto_62 module is not initialized. |
Crypto_62_KeyExchangeCalcSecret¶
Std_ReturnType Crypto_62_KeyExchangeCalcSecret(uint32 cryptoKeyId, const uint8 *partnerPublicValuePtr, uint32 partnerPublicValueLength)
Calculates the shared secret for a key exchange operation.
- Sync/Async
TRUE
- Reentrancy
Not reentrant
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
cryptoKeyId |
The ID of the cryptographic key used for the key exchange. |
[in] |
partnerPublicValuePtr |
Pointer to the partner’s public value. |
[in] |
partnerPublicValueLength |
The length of the partner’s public value. |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The shared secret was calculated successfully. |
E_NOT_OK |
The shared secret could not be calculated due to an error. |
CRYPTO_E_PARAM_HANDLE |
The cryptographic key ID is invalid. |
CRYPTO_E_PARAM_POINTER |
The partner’s public value pointer is NULL. |
CRYPTO_E_PARAM_VALUE |
The partner’s public value length is zero. |
CRYPTO_E_UNINIT |
The Crypto_62 module is not initialized. |
Crypto_62_CustomSync¶
Std_ReturnType Crypto_62_CustomSync(uint32 dispatchId, uint32 keyId, uint32 keyElementId, uint32 targetKeyId, uint32 targetKeyElementId, const uint8 *inputPtr, uint32 inputLength, uint8 *outputPtr, uint32 *outputLengthPtr, uint8 *secondaryOutputPtr, uint32 *secondaryOutputLengthPtr)
Performs a custom synchronous cryptographic operation.
- Sync/Async
TRUE
- Reentrancy
Not reentrant
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
dispatchId |
The ID of the dispatch table entry. |
[in] |
keyId |
The ID of the source cryptographic key. |
[in] |
keyElementId |
The ID of the source key element. |
[in] |
targetKeyId |
The ID of the target cryptographic key. |
[in] |
targetKeyElementId |
The ID of the target key element. |
[in] |
inputPtr |
Pointer to the input data. |
[in] |
inputLength |
The length of the input data. |
[out] |
outputPtr |
Pointer to the buffer where the output data will be stored. |
[inout] |
outputLengthPtr |
Pointer to the length of the output buffer. On return, it contains the actual length of the output data. |
[out] |
secondaryOutputPtr |
Pointer to the buffer where the secondary output data will be stored. |
[inout] |
secondaryOutputLengthPtr |
Pointer to the length of the secondary output buffer. On return, it contains the actual length of the secondary output data. |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The operation was performed successfully. |
E_NOT_OK |
The operation could not be performed due to an error. |
CRYPTO_E_PARAM_HANDLE |
The target cryptographic key ID is invalid. |
CRYPTO_E_UNINIT |
The Crypto_62 module is not initialized. |
提供的服务 Services¶
Crypto_62_Encrypt_Process¶
Std_ReturnType Crypto_62_Encrypt_Process(uint32 objectId, Crypto_AlgorithmFamilyType algorithmfamily, Crypto_AlgorithmModeType mode, Crypto_OperationModeType operateMode)
Processes an encryption operation.
- Sync/Async
TRUE
- Reentrancy
Not reentrant for the same object ID
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
objectId |
The ID of the cryptographic object. |
[in] |
algorithmfamily |
The family of the encryption algorithm. |
[in] |
mode |
The mode of the encryption algorithm. |
[in] |
operateMode |
The operation mode of the encryption process (e.g., start, update, finish). |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The encryption process was successful. |
E_NOT_OK |
The encryption process failed. |
CRYPTO_ERROR_ALGO_NOT_SUPPORTED |
The specified algorithm family is not supported. |
Crypto_62_Decrypt_Process¶
Std_ReturnType Crypto_62_Decrypt_Process(uint32 objectId, Crypto_AlgorithmFamilyType algorithmfamily, Crypto_AlgorithmModeType mode, Crypto_OperationModeType operateMode)
Processes a decryption operation.
- Sync/Async
TRUE
- Reentrancy
Not reentrant for the same object ID
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
objectId |
The ID of the cryptographic object. |
[in] |
algorithmfamily |
The family of the decryption algorithm. |
[in] |
mode |
The mode of the decryption algorithm. |
[in] |
operateMode |
The operation mode of the decryption process (e.g., start, update, finish). |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The decryption process was successful. |
E_NOT_OK |
The decryption process failed. |
CRYPTO_ERROR_ALGO_NOT_SUPPORTED |
The specified algorithm family is not supported. |
Crypto_62_AeadEncrypt_Process¶
Std_ReturnType Crypto_62_AeadEncrypt_Process(uint32 objectId, Crypto_AlgorithmFamilyType algorithmfamily, Crypto_AlgorithmModeType mode, Crypto_OperationModeType operateMode)
Processes an AEAD (Authenticated Encryption with Associated Data) encryption operation.
- Sync/Async
TRUE
- Reentrancy
Not reentrant for the same object ID
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
objectId |
The ID of the cryptographic object. |
[in] |
algorithmfamily |
The family of the AEAD encryption algorithm. |
[in] |
mode |
The mode of the AEAD encryption algorithm. |
[in] |
operateMode |
The operation mode of the AEAD encryption process (e.g., start, update, finish). |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The AEAD encryption process was successful. |
E_NOT_OK |
The AEAD encryption process failed. |
CRYPTO_ERROR_ALGO_NOT_SUPPORTED |
The specified algorithm family is not supported. |
Crypto_62_AeadDecrypt_Process¶
Std_ReturnType Crypto_62_AeadDecrypt_Process(uint32 objectId, Crypto_AlgorithmFamilyType algorithmfamily, Crypto_AlgorithmModeType mode, Crypto_OperationModeType operateMode)
Processes an AEAD (Authenticated Encryption with Associated Data) decryption operation.
- Sync/Async
TRUE
- Reentrancy
Not reentrant for the same object ID
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
objectId |
The ID of the cryptographic object. |
[in] |
algorithmfamily |
The family of the AEAD decryption algorithm. |
[in] |
mode |
The mode of the AEAD decryption algorithm. |
[in] |
operateMode |
The operation mode of the AEAD decryption process (e.g., start, update, finish). |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The AEAD decryption process was successful. |
E_NOT_OK |
The AEAD decryption process failed. |
CRYPTO_ERROR_ALGO_NOT_SUPPORTED |
The specified algorithm family is not supported. |
Crypto_62_SignatureGenerate_Process¶
Std_ReturnType Crypto_62_SignatureGenerate_Process(uint32 objectId, Crypto_AlgorithmFamilyType algorithmfamily, Crypto_AlgorithmModeType mode, Crypto_OperationModeType operateMode)
Processes a signature generation operation.
- Sync/Async
TRUE
- Reentrancy
Not reentrant for the same object ID
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
objectId |
The ID of the cryptographic object. |
[in] |
algorithmfamily |
The family of the signature generation algorithm. |
[in] |
mode |
The mode of the signature generation algorithm. |
[in] |
operateMode |
The operation mode of the signature generation process (e.g., start, update, finish). |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The signature generation process was successful. |
E_NOT_OK |
The signature generation process failed. |
Crypto_62_SignatureVerify_Process¶
Std_ReturnType Crypto_62_SignatureVerify_Process(uint32 objectId, Crypto_AlgorithmFamilyType algorithmfamily, Crypto_AlgorithmModeType mode, Crypto_OperationModeType operateMode)
Processes a signature verification operation.
- Sync/Async
TRUE
- Reentrancy
Not reentrant for the same object ID
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
objectId |
The ID of the cryptographic object. |
[in] |
algorithmfamily |
The family of the signature verification algorithm. |
[in] |
mode |
The mode of the signature verification algorithm. |
[in] |
operateMode |
The operation mode of the signature verification process (e.g., start, update, finish). |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The signature verification process was successful. |
E_NOT_OK |
The signature verification process failed. |
Crypto_62_RandomGenerate_Process¶
Std_ReturnType Crypto_62_RandomGenerate_Process(uint32 objectId, Crypto_AlgorithmFamilyType algorithmfamily, Crypto_AlgorithmModeType mode, Crypto_OperationModeType operateMode)
Processes a random number generation operation.
- Sync/Async
TRUE
- Reentrancy
Not reentrant for the same object ID
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
objectId |
The ID of the cryptographic object. |
[in] |
algorithmfamily |
The family of the random number generation algorithm. |
[in] |
mode |
The mode of the random number generation algorithm. |
[in] |
operateMode |
The operation mode of the random number generation process (e.g., start, update, finish). |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The random number generation process was successful. |
E_NOT_OK |
The random number generation process failed. |
CRYPTO_ERROR_ALGO_NOT_SUPPORTED |
The specified algorithm mode is not supported. |
Crypto_62_RandomSeed_Process¶
Std_ReturnType Crypto_62_RandomSeed_Process(uint32 objectId, Crypto_AlgorithmFamilyType algorithmfamily, Crypto_AlgorithmModeType mode)
Processes a random number generator (RNG) seeding operation.
- Sync/Async
TRUE
- Reentrancy
Not reentrant for the same object ID
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
objectId |
The ID of the cryptographic object. |
[in] |
algorithmfamily |
The family of the RNG algorithm. |
[in] |
mode |
The mode of the RNG algorithm (not used in this function). |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The RNG seeding process was successful. |
E_NOT_OK |
The RNG seeding process failed. |
Crypto_62_KeyGenerate_Process¶
Std_ReturnType Crypto_62_KeyGenerate_Process(uint32 objectId, Crypto_AlgorithmFamilyType algorithmfamily, Crypto_AlgorithmModeType mode)
Processes a key generation operation.
- Sync/Async
TRUE
- Reentrancy
Not reentrant for the same object ID
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
objectId |
The ID of the cryptographic object. |
[in] |
algorithmfamily |
The family of the key generation algorithm. |
[in] |
mode |
The mode of the key generation algorithm (not used in this function). |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The key generation process was successful. |
E_NOT_OK |
The key generation process failed. |
Crypto_62_KeyDerive_Process¶
Std_ReturnType Crypto_62_KeyDerive_Process(uint32 objectId, Crypto_AlgorithmFamilyType algorithmfamily, Crypto_AlgorithmModeType mode)
Processes a key derivation operation.
- Sync/Async
TRUE
- Reentrancy
Not reentrant for the same object ID
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
objectId |
The ID of the cryptographic object. |
[in] |
algorithmfamily |
The family of the key derivation algorithm. |
[in] |
mode |
The mode of the key derivation algorithm (not used in this function). |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The key derivation process was successful. |
E_NOT_OK |
The key derivation process failed. |
Crypto_62_KeyExchangeCalcPubval_Process¶
Std_ReturnType Crypto_62_KeyExchangeCalcPubval_Process(uint32 objectId, Crypto_AlgorithmFamilyType algorithmfamily, Crypto_AlgorithmModeType mode)
Processes a key exchange operation to calculate the public value.
- Sync/Async
TRUE
- Reentrancy
Not reentrant for the same object ID
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
objectId |
The ID of the cryptographic object. |
[in] |
algorithmfamily |
The family of the key exchange algorithm. |
[in] |
mode |
The mode of the key exchange algorithm (not used in this function). |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The public value calculation was successful. |
E_NOT_OK |
The public value calculation failed. |
Crypto_62_KeyExchangeCalcSecret_Process¶
Std_ReturnType Crypto_62_KeyExchangeCalcSecret_Process(uint32 objectId, Crypto_AlgorithmFamilyType algorithmfamily, Crypto_AlgorithmModeType mode)
Processes a key exchange operation to calculate the shared secret.
- Sync/Async
TRUE
- Reentrancy
Not reentrant for the same object ID
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
objectId |
The ID of the cryptographic object. |
[in] |
algorithmfamily |
The family of the key exchange algorithm. |
[in] |
mode |
The mode of the key exchange algorithm (not used in this function). |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The shared secret calculation was successful. |
E_NOT_OK |
The shared secret calculation failed. |
Custom_Service_Process¶
Std_ReturnType Custom_Service_Process(uint32 objectId, Crypto_AlgorithmFamilyType algorithmfamily, Crypto_AlgorithmModeType mode)
Processes a custom cryptographic service.
- Sync/Async
TRUE
- Reentrancy
Not reentrant for the same object ID
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
objectId |
The ID of the cryptographic object. |
[in] |
algorithmfamily |
The family of the custom cryptographic algorithm. |
[in] |
mode |
The mode of the custom cryptographic algorithm (not used in this function). |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The custom service process was successful. |
E_NOT_OK |
The custom service process failed. |
Crypto_AesDecryptProcess¶
Std_ReturnType Crypto_AesDecryptProcess(uint32 objectId, Crypto_AlgorithmModeType mode)
Processes an AES decryption operation.
- Sync/Async
TRUE
- Reentrancy
Not reentrant for the same object ID
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
objectId |
The ID of the cryptographic object. |
[in] |
mode |
The mode of the AES decryption algorithm. |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The AES decryption process was successful. |
E_NOT_OK |
The AES decryption process failed. |
CRYPTO_ERROR_ALGO_NOT_SUPPORTED |
The specified algorithm mode is not supported. |
Crypto_AesEncryptProcess¶
Std_ReturnType Crypto_AesEncryptProcess(uint32 objectId, Crypto_AlgorithmModeType mode)
Processes an AES encryption operation.
- Sync/Async
TRUE
- Reentrancy
Not reentrant for the same object ID
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
objectId |
The ID of the cryptographic object. |
[in] |
mode |
The mode of the AES encryption algorithm. |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The AES encryption process was successful. |
E_NOT_OK |
The AES encryption process failed. |
CRYPTO_ERROR_ALGO_NOT_SUPPORTED |
The specified algorithm mode is not supported. |
Crypto_62_ProcessAsyncJob_NonQueue¶
Std_ReturnType Crypto_62_ProcessAsyncJob_NonQueue(uint32 objectId, Crypto_JobType *job)
Processes an asynchronous cryptographic job without queuing.
- Sync/Async
TRUE
- Reentrancy
Not reentrant for the same object ID
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
objectId |
The ID of the cryptographic object. |
[in] |
job |
Pointer to the cryptographic job structure. |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The job was processed successfully. |
E_NOT_OK |
The job could not be processed due to an error. |
Crypto_ProcessAlgorithm¶
Std_ReturnType Crypto_ProcessAlgorithm(uint32 objectId, Crypto_OperationModeType operateMode)
Processes the specified cryptographic algorithm based on the given object ID and operation mode.
- Sync/Async
TRUE
- Reentrancy
Reentrant but not for the same object ID
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
objectId |
Unique identifier of the cryptographic job. |
[in] |
operateMode |
Mode of operation for the cryptographic process (e.g., initialization, processing, finalization). |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The cryptographic operation was successfully processed. |
E_NOT_OK |
The cryptographic operation failed due to an underlying error or unsupported algorithm/service. |
Crypto_62_ProcessJob_Internal¶
Std_ReturnType Crypto_62_ProcessJob_Internal(uint32 objectId, Crypto_JobType *job, Crypto_OperationModeType operationMode)
Processes a cryptographic job internally based on the specified operation mode.
- Sync/Async
TRUE
- Reentrancy
Reentrant but not for the same object ID and job
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
objectId |
Unique identifier of the cryptographic job. |
[inout] |
job |
Pointer to the cryptographic job structure containing input and output data. |
[in] |
operationMode |
Mode of operation for the cryptographic job (e.g., start, update, finish). |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The cryptographic job was successfully processed according to the specified operation mode. |
E_NOT_OK |
The cryptographic job failed due to an underlying error, invalid operation mode, or job state mismatch. |
Crypto_62_QueueInJob¶
Std_ReturnType Crypto_62_QueueInJob(uint32 objectid, Crypto_JobType *job)
Enqueues a cryptographic job into the job queue based on its priority.
- Sync/Async
TRUE
- Reentrancy
Reentrant but not for the same object ID and job
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
objectid |
Unique identifier of the cryptographic job |
[in] |
job |
Pointer to the cryptographic job structure to be enqueued. |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The cryptographic job was successfully enqueued. |
E_NOT_OK |
The cryptographic job failed to be enqueued due to an underlying error. |
CRYPTO_E_BUSY |
The job queue is full and the job cannot be enqueued at this time. |
内部类型定义 Definition of Internal Types¶
Type Name |
Type |
Description |
|---|---|---|
Crypto_62_KeyElementCfgType |
struct Crypto_62_KeyElementCfgTag |
key element config type |
Crypto_62_KeyTypeCfgType |
struct Crypto_62_KeyTypeCfgTag |
Structure of a key type. |
Crypto_62_NvStorageCfgType |
struct Crypto_62_NvStorageCfgTag |
Structure of a non-volatile block. |
Crypto_62_KeyCfgType |
struct Crypto_62_KeyCfgTag |
Structure of a CRYPTO Key. |
Crypto_62_DriverObjectCfgType |
struct Crypto_62_DriverObjectCfgTag |
structure of a driver object |
Crypto_62_PrimitiveCfgType |
struct Crypto_62_PrimitiveCfgTag |
structure of a primitive |
Crypto_62_DriverStatusType |
enum |
current driver status |
Crypto_62_ObjectStatusType |
enum |
crypto key element type |
CryptoKeyElementFormat |
enum |
crypto key element format |
Crypto_62_KeyElemReadAccessType |
enum |
crypto key element access type |
Crypto_62_KeyElemWriteAccessType |
enum |
key element write access type |
Crypto_62_NvBlockProcessingType |
enum |
nvm process type |
配置 Configuration¶
通用配置 General Configurations¶
在CryptoGeneral配置界面中进行一些类似于DET开关的配置，版本号开关，分区信息等，建议优先配置这里。
In the CryptoGeneral configuration interface, perform some configurations similar to DET switches, version number switches, partition information, etc. It is recommended to prioritize the configuration here.

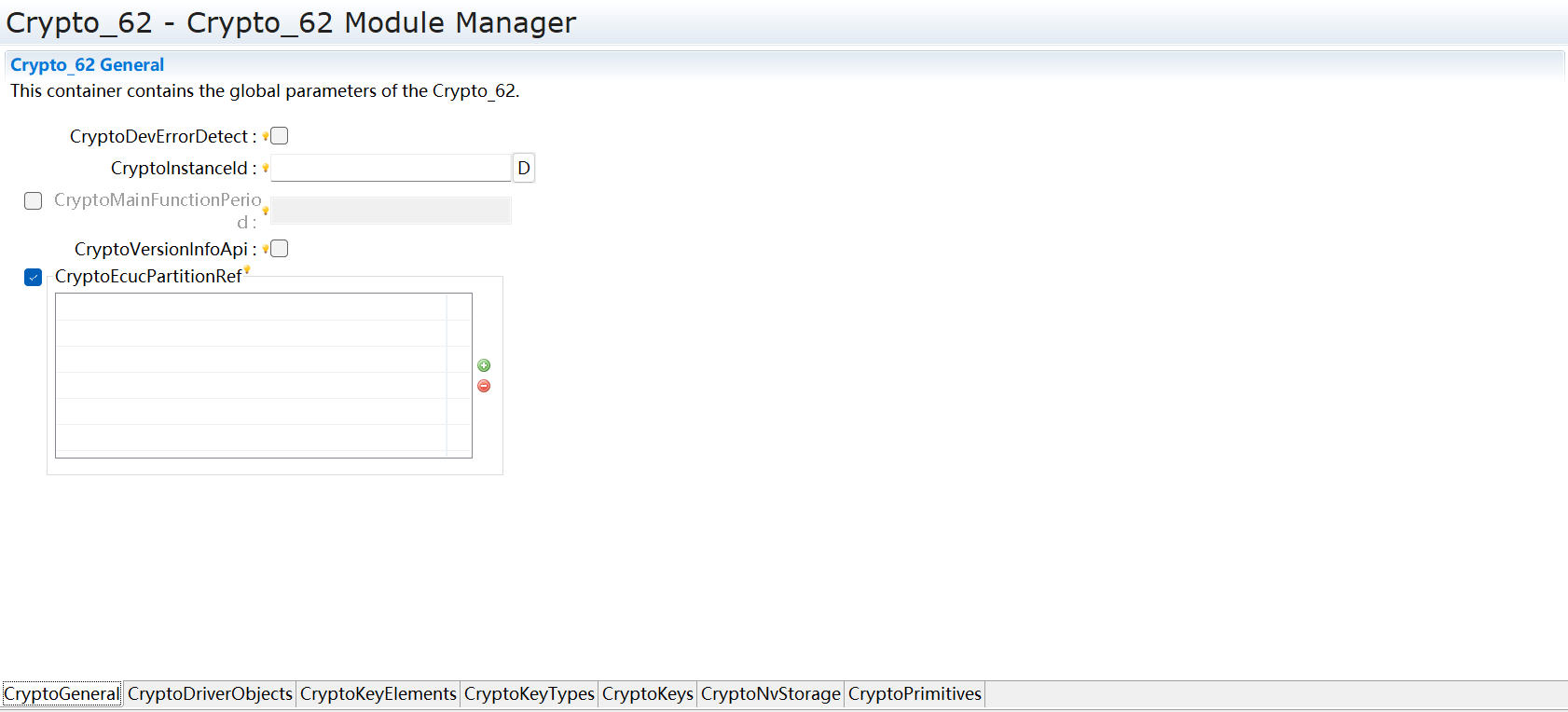

CryptoGeneral配置图 (CryptoGeneral Configuration Diagram)¶
UI 名称（UI name） |
描述（Description） |
|||
CryptoDevErrorDetect |
取值范围（Value range） |
TRUE/FALSE |
默认取值（Default value） |
FALSE |
参数描述（Parameter description） |
是否使能开发错误检查（Enable development error detection or not） |
|||
依赖关系（Dependence） |
无（None） |
|||
CryptoInstanceId |
取值范围（Value range） |
0..255 |
默认取值（Default value） |
无（None） |
参数描述（Parameter description） |
加密驱动程序的实例ID，此ID用于识别多个加密驱动程序，以防在同一ECU中使用多个加密驱动（The instance ID of encryption driver; it is used for identifying several encryption drivers to prevent the use of multiple encryption drivers in the same ECU） |
|||
依赖关系（Dependence） |
无（None） |
|||
CryptoMainFunctionPeriod |
取值范围（Value range） |
0..INF |
默认取值（Default value） |
无（None） |
参数描述（Parameter description） |
表示调用Crypto_MainFunction的周期（It indicates the cycle of calling Crypto_MainFunction） |
|||
依赖关系（Dependence） |
无（None） |
|||
CryptoVersionInfoApi |
取值范围（Value range） |
TRUE/FALSE |
默认取值（Default value） |
FALSE |
参数描述（Parameter description） |
表示是否使能版本获取API（It indicates whether to enable version to get API） |
|||
依赖关系（Dependence） |
无（None） |
|||
CryptoEcucPartitionRef |
取值范围（Value range） |
引用到EcucPartition（Reference to EcucPartition） |
默认取值（Default value） |
无（None） |
参数描述（Parameter description） |
映射Crypto驱动到partition（Map Crypto driver to partition） |
|||
依赖关系（Dependence） |
仅存在于多核多分区系统中（Existing in multi-core multi-partition system only） |
|||
秘钥配置 Key Configuration¶
大部分加密算法是需要使用到秘钥的，所以第一步需要配置秘钥，先创建秘钥元素，然后配置秘钥元素组合成秘钥组即keytype。按照秘钥组的使用方式进行配置秘钥，同一个keytype可以配置多个秘钥元素，如果需要安全存储秘钥到NVM的话需要依赖NVM模块配置block。
Key is required by a majority of encryption algorithms. In the first step, configure the key: Create key elements, and then combine them into a key group, which is keytype. Configure key according to the use method of the key group. Multiple key elements can be configured for one keytype. If the key needs securely storing to NVM, configure block via NVM module.
CryptoKeyElements配置图 (CryptoKeyElements Configuration Diagram)¶
UI 名称（UI name） |
描述（Description） |
|||
CryptoKeyElementAllowPartialAccess |
取值范围（Value range） |
TRUE/FALSE |
默认取值（Default value） |
无（None） |
参数描述（Parameter description） |
表示此KeyElement是否允许被局部访问，访问的长度小于CryptoKeyElementSize配置的长度（It indicates whether this KeyElement is allowed to be accessed locally, and that the length of the access is less than that configured by CryptoKeyElementSize） |
|||
依赖关系（Dependence） |
无（None） |
|||
CryptoKeyElementFormat |
取值范围（Value range） |
无（None） |
默认取值（Default value） |
无（None） |
参数描述（Parameter description） |
定义KeyElement的格式（Define the format of KeyElement） |
|||
依赖关系（Dependence） |
无（None） |
|||
CryptoKeyElementId |
取值范围（Value range） |
Uint32 |
默认取值（Default value） |
无（None） |
参数描述（Parameter description） |
定义KeyElement的索引（Define the index of KeyElement ） |
|||
依赖关系（Dependence） |
ID值依赖于算法，如MAC算法可配置ID分别为1,2,16（The ID value depends on the algorithm; for example, the MAC algorithm can configure IDs as 1, 2, and 16 respectively） |
|||
CryptoKeyElementInitValue |
取值范围（Value range） |
无（None） |
默认取值（Default value） |
无（None） |
参数描述（Parameter description） |
用于startup时填充key element初始值（Used for filling in the initial value of key element during startup） |
|||
依赖关系（Dependence） |
仅适用于RAM Key，ROM key存在NVRAM中，无法被修改（CryptoKeyElementPersist = FALSE）（Applicable to RAM Key, ROM key in NVRAM only, cannot be modified (CryptoKeyElementPersist = FALSE)） |
|||
CryptoKeyElementPersist |
取值范围（Value range） |
TRUE/FALSE |
默认取值（Default value） |
FALSE |
参数描述（Parameter description） |
表示是否需要将此key element存储到NVRAM（It indicates whether to store this key |
|||
依赖关系（Dependence） |
无（None） |
|||
CryptoKeyElementReadAccess |
取值范围（Value range） |
CRYPTO_RA_ALLOWED |
默认取值（Default value） |
无（None） |
CRYPTO_RA_DENIED |
||||
CRYPTO_RA_ENCRYPTED |
||||
CRYPTO_RA_INTERNAL_COPY |
||||
参数描述（Parameter description） |
定义此Key element的访问权限（Define the access permission of this Key element） |
|||
依赖关系（Dependence） |
无（None） |
|||
CryptoKeyElementSize |
取值范围（Value range） |
Uint32 |
默认取值（Default value） |
无（None） |
参数描述（Parameter description） |
定义此key element的长度（Define the length of key element ） |
|||
依赖关系（Dependence） |
无（None） |
|||
CryptoKeyElementWriteAccess |
取值范围（Value range） |
CRYPTO_WA_ALLOWED |
默认取值（Default value） |
无（None） |
CRYPTO_WA_DENIED |
||||
CRYPTO_WA_ENCRYPTED |
||||
CRYPTO_WA_INTERNAL_COPY |
||||
参数描述（Parameter description） |
定义此Key element的写权限（Define the writing permission of this Key element） |
|||
依赖关系（Dependence） |
无（None） |
|||
CryptoKeyTypes配置图 (CryptoKeyTypes Configuration Diagram)¶
UI 名称（UI name） |
描述（Description） |
|||
CryptoKeyElementRef |
取值范围（Value range） |
引用[CryptoKeyElement]（Reference [CryptoKeyElement]） |
默认取值（Default value） |
无（None） |
参数描述（Parameter description） |
表示此CryptoKeyType包含哪些Key element（It indicates the specific Key elements contained by this CryptoKeyType） |
|||
依赖关系（Dependence） |
无（None） |
|||
CryptoKey配置图 (CryptoKey Configuration Diagram)¶
UI 名称（UI name） |
描述（Description） |
|||
CryptoKeyId |
取值范围（Value range） |
Uint32 |
默认取值（Default value） |
无（None） |
参数描述（Parameter description） |
Crypto 秘钥索引（Crypto Key index） |
|||
依赖关系（Dependence） |
无（None） |
|||
CryptoKeyTypeRef |
取值范围（Value range） |
引用[CryptoKeyType]（Reference [CryptoKeyType]） |
默认取值（Default value） |
无（None） |
参数描述（Parameter description） |
表示此Crypto Key包含哪些CryptoKeyType（It indicates the CryptoKeyTypes contained in Crypto Key ） |
|||
依赖关系（Dependence） |
无（None） |
|||
CryptoKeyNvBlockRef |
取值范围（Value range） |
引用CryptoKeyNvBlock（Reference CryptoKeyNvBlock） |
默认取值（Default value） |
无（None） |
参数描述（Parameter description） |
表示此Crypto Key关联的Nvblock（It indicates Nvblock linked with this Crypto Key ） |
|||
依赖关系（Dependence） |
无（None） |
|||
CryptoNvStorage配置图 (CryptoNvStorage Configuration Diagram)¶
UI 名称（UI name） |
描述（Description） |
|||
CryptoNvBlockFailedRetries |
取值范围（Value range） |
Uint16 |
默认取值（Default value） |
无（None） |
参数描述（Parameter description） |
尝试请求NVM服务的次数（Times of trying to request NVM services） |
|||
依赖关系（Dependence） |
无（None） |
|||
CryptoNvBlockProcessing |
取值范围（Value range） |
Enumeration |
默认取值（Default value） |
无（None） |
参数描述（Parameter description） |
更新NVM块的时候采取的模式（Mode used for updating NVM block ） |
|||
依赖关系（Dependence） |
无（None） |
|||
CryptoNvBlockDescriptorRef |
取值范围（Value range） |
引用NvMBlockDescriptor（Reference NvMBlockDescriptor） |
默认取值（Default value） |
无（None） |
参数描述（Parameter description） |
表示此Crypto Key关联的Nvblock（It indicates Nvblock linked with this Crypto Key ） |
|||
依赖关系（Dependence） |
需要NVM配置NvMBlockDescriptor（NVM needs to be configured with NvMBlockDescriptor） |
|||
加密算法配置 Configuration of Encryption Algorithm¶
这里需要配置加密算法的种类和模式，如加密服务的AES种类下面的ECB模式，用于生成宏定义开关。
The type and mode of encryption algorithm need configuring here, such as the ECB mode under the AES type of encryption service, in order to generate the macro defined switches.
CryptoPrimitives配置图 (CryptoPrimitives Configuration Diagram)¶
UI 名称（UI name） |
描述（Description） |
|||
CryptoPrimitiveAlgorithmFamily |
取值范围（Value range） |
Enumeration |
默认取值（Default value） |
无（None） |
参数描述（Parameter description） |
确定用于加密服务的算法系列（Determine the algorithm series used for encryption services） |
|||
依赖关系（Dependence） |
无（None） |
|||
CryptoPrimitiveAlgorithmMode |
取值范围（Value range） |
Enumeration |
默认取值（Default value） |
无（None） |
参数描述（Parameter description） |
确定用于加密服务的算法模式（Determine the algorithm mode used for encryption services） |
|||
依赖关系（Dependence） |
无（None） |
|||
CryptoPrimitiveAlgorithmSecondaryFamily |
取值范围（Value range） |
Enumeration |
默认取值（Default value） |
无（None） |
参数描述（Parameter description） |
确定用于加密服务的算法二级系列（Determine the secondary series of algorithms used for encryption services） |
|||
依赖关系（Dependence） |
无（None） |
|||
CryptoPrimitiveService |
取值范围（Value range） |
Enumeration |
默认取值（Default value） |
无（None） |
参数描述（Parameter description） |
确定用于定义功能的加密服务（Determine the encryption services used for defining functions） |
|||
依赖关系（Dependence） |
无（None） |
|||
队列配置Queue Configuration¶
加密驱动以Object为单位，可以配置多个Object，每个Object可以配置多个服务，按照队列的形式处理任务。
The encryption driver takes Object as the unit and can configure several objects, each of which can be configured with several services to process tasks in a queue format.
CryptoDriverObject配置图 (CryptoDriverObject Configuration Diagram)¶
UI 名称（UI name） |
描述（Description） |
|||
CryptoDriverObjectId |
取值范围（Value range） |
Uint32 |
默认取值（Default value） |
无（None） |
参数描述（Parameter description） |
加密驱动对象ID（Encryption driver object ID） |
|||
依赖关系（Dependence） |
无（None） |
|||
CryptoQueueSize |
取值范围（Value range） |
Uint32 |
默认取值（Default value） |
无（None） |
参数描述（Parameter description） |
定义队列的长度（Define queue length） |
|||
依赖关系（Dependence） |
无（None） |
|||
CryptoDefaultRandomKeyRef |
取值范围（Value range） |
引用[CryptoKey]（Reference [CryptoKey]） |
默认取值（Default value） |
无（None） |
参数描述（Parameter description） |
密钥包含为随机数生成器提供种子所必需的关键元素（The key contains the key elements required for providing seeds for the random number generator） |
|||
依赖关系（Dependence） |
无（None） |
|||
CryptoDefaultRandomPrimitiveRef |
取值范围（Value range） |
引用[CryptoPrimitive]（Reference [CryptoPrimitive]） |
默认取值（Default value） |
无（None） |
参数描述（Parameter description） |
对配置默认随机数生成器的原语的引用（Reference the primitive for configuring the default random number generator） |
|||
依赖关系（Dependence） |
无（None） |
|||
CryptoDriverObjectEcucPartitionRef |
取值范围（Value range） |
引用[EcucPartition]（Reference[EcucPartition]） |
默认取值（Default value） |
无（None） |
参数描述（Parameter description） |
表示此CryptoDriverObject处于哪一个分区中（It indicates the specific partition where this CryptoDriver Object is located） |
|||
依赖关系（Dependence） |
仅在多核系统中配置（Configured in multi-core system only） |
|||
CryptoPrimitiveRef |
取值范围（Value range） |
引用[CryptoPrimitive]（Reference [CryptoPrimitive] ） |
默认取值（Default value） |
无（None） |
参数描述（Parameter description） |
加密服务的预配置（pre-configuration of encryption services） |
|||
依赖关系（Dependence） |
无（None） |
|||
