PduR¶

文档信息（Document Information）¶

版本历史（Version History）¶

日期（Date）	作者（Author）	版本（Version）	状态（Status）	说明（Description）
2024/11/28	赵彤（Zhao Tong）	V0.1	发布（Release）	首次发布（First release）
2025/04/04	赵彤（Zhao Tong）	V1.0	发布（Release）	正式发布（Official release）

参考文档（Reference Document）¶

编号（Number）	分类（Classification）	标题（Title）	版本（Version）
1	Autosar	AUTOSAR_CP_SRS_Gateway	R23-11
2	Autosar	AUTOSAR_CP_SWS_PDURouter.pdf	R23-11

术语与简写（Terms and Abbreviations）¶

术语（Term）¶

术语（Term）	解释（Explanation）
on-the-fly gatewaying	网关能力：在两个TP模块之间进行路由，在接收到所有数据之前（当达到指定阈值时）开始转发数据。 Gateway capabilities: Route between two TP modules and start forwarding data before all data is received (when the specified threshold is reached).
multicast operation	多播路由，即1：N Multicast routing, i.e., 1:N
data provision	数据提供方式：direct data provision 和 trigger transmit data provision Data provision methods: direct data provision and trigger transmit data provision
last-is-best buffering	Buffer策略：队列深度为1，后接收的数据回覆盖前面存储的数据 Buffer strategy: The queue depth is 1, and the later received data will overwrite the previously stored data
FIFO buffering	Buffer策略：队列深度大于1，采用First in first out Buffer strategy: The queue depth is greater than 1, using First In First Out

简写（Abbreviation）¶

简写（Abbreviation）	全称（Full name）	解释（Explanation）
<SrcLo>	Lower layer communication interface module acting as a source of the I-PDU	下层IF模块关联的PDU作为PduR中的Source I-PDU
<DstLo>	Lower layer communication interface module acting as a destination of the I-PDU	下层IF模块关联的PDU作为PduR中的Dest I-PDU
<SrcLoTp>	Lower layer transport protocol module acting as a source of the I-PDU	下层TP模块关联的PDU作为PduR中的Source I-PDU
<DstLoTp>	Lower layer transport protocol module acting as a destination of the I-PDU	下层TP模块关联的PDU作为PduR中的Dest I-PDU
I-PDU ID	PDU Identifier	Pdu的Id号
I-PDU	Interaction Layer PDU	交互层Pdu，涉及Pdu的Id号，Pdu长度，Pdu数据
Upper Layer Modules (Up)	Modules above the PDU Router	在AUTOSAR架构下，处于PduR上层的模块
Lower Layer Modules (Lo)	Modules below the PDU Router	在AUTOSAR架构下，处于PduR下层的模块
FIFO	first in first out	Buffer深度大于1，采用先入先出机制存储
DET	Default Error Tracer	错误检测模块

简介（Introduction）¶

PduR模块主要为通信接口模块（如CanIf），传输协议模块（如CanTp），诊断服务模块（如Dcm），通信服务模块（如Com, LdCom），以及IpduM，SecOc等模块提供基于PDU的路由服务。PduR模块主要实现基于PDU的接收路由（PDU从CanIf→PduR→Com），发送路由(Com→PduR→CanIf)，网关路由功能（CanIf→PduR→CanIf）。

The PduR module mainly provides PDU-based routing services for communication interface modules (such as CanIf), transmission protocol modules (such as CanTp), diagnostic service modules (such as Dcm), communication service modules (such as Com, LdCom), as well as modules like IpduM and SecOc. The PduR module mainly implements PDU-based reception routing (PDU from CanIf→PduR→Com), transmission routing (Com→PduR→CanIf), and gateway routing functions (CanIf→PduR→CanIf).

fig_模块层次图 — PduR模块层次图¶

PduR Module Hierarchy Diagram

与PduR模块存在交互的模块可分为三类：1.下层模块（如CanIf, CanTp）;2.上层模块（如Com, Dcm）;3既是上层又是下层模块（IpduM, SecOC）。 PduR与所有交互模块间实现IF Pdu和TP Pdu的接收与发送功能。

Modules that interact with the PduR module can be divided into three categories: 1. Lower-layer modules (such as CanIf, CanTp); 2. Upper-layer modules (such as Com, Dcm); 3. Modules that are both upper-layer and lower-layer (IpduM, SecOC). The PduR and all interacting modules implement the receiving and sending functions of IF Pdu and TP Pdu

功能描述（Functional Description）¶

特性（Features ）¶

发送路由功能（Transmit Routing Function）¶

TxPdu的发送分为两种方式（IF和TP），在PduR模块实现TP PDU的1：1发送路由，IF PDU的1：N发送路由。通过PduR模块的路由配置可以为上层屏蔽网络细节，上层模块专注于TxPdu报文数据的封装。

The transmission of TxPdu is divided into two modes (IF and TP). The PduR module implements 1:1 transmit routing for TP PDU and 1:N transmit routing for IF PDU. Through the routing configuration of the PduR module, network details can be shielded from the upper layer, allowing upper-layer modules to focus on encapsulating TxPdu message data.

接收路由功能（Receive Routing Function）¶

RxPdu的接收分为两种方式（IF和TP），在PduR模块实现TP PDU的1：N发送路由，IF PDU的1：N路由。当PDU从下层模块接收到，根据PduR配置的路由路径传递到上层模块。上层模块不必关注网络细节，专注于接收PDU的解析。

The reception of RxPdu is divided into two modes (IF and TP). The PduR module implements 1:N transmit routing for TP PDU and 1:N routing for IF PDU. When a PDU is received from a lower-layer module, it is delivered to the upper-layer module according to the routing path configured by PduR. Upper-layer modules do not need to pay attention to network details and can focus on parsing the received PDU.

网关路由功能（Gateway Routing Function）¶

PDU的网关同样分为IF/TP两种方式，IF网关支持1：N，TP网关也支持1：N，不涉及任何报文数据的变化，收发报文速率保持一致（如果Dest端的报文长度小于Src端的报文长度，存在截断以使网关成功）。需注意PDU的网关不能IF、TP混淆，即接收IF PDU只能通过发送IF PDU进行转发，接收TP PDU只能通过TP PDU进行转发。

The PDU gateway is also divided into IF/TP modes. The IF gateway supports 1:N, and the TP gateway also supports 1:N. It does not involve any changes in message data, and the sending and receiving message rates remain consistent (if the message length of the Dest end is less than that of the Src end, truncation occurs to ensure the gateway functions successfully). It should be noted that the PDU gateway cannot mix IF and TP, that is, received IF PDUs can only be forwarded through sending IF PDUs, and received TP PDUs can only be forwarded through TP PDUs.

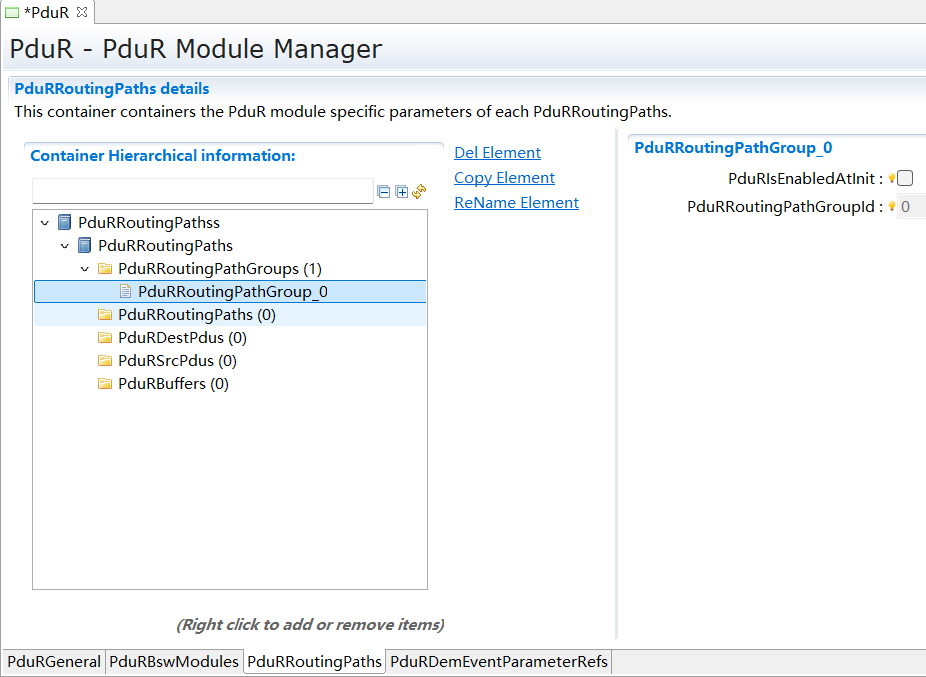

路由控制功能（Routing Control Function）¶

PduR的路由控制以RoutingPathGroup为单位进行Enable/Disable控制，而PduRRoutingPath通过PduRRoutingPathGroupRef可以关联N个RoutingPathGroup，只要关联的至少一个RoutingPathGroupEnable，则对应的PduRDestPdu使能。

The routing control of PduR performs Enable/Disable control in units of RoutingPathGroup. PduRRoutingPath can be associated with N RoutingPathGroups through PduRRoutingPathGroupRef. As long as at least one associated RoutingPathGroup is enabled, the corresponding PduRDestPdu is enabled.

偏差¶

None

扩展¶

None

集成（Integration）¶

文件列表（File List）¶

静态文件（Static Files）¶

文件（File）	描述（Description）
PduR.c	作为PduR模块的核心文件，实现PduR模块全部对外接口，以及实现PduR模块功能所必须的local变量定义、local函数定义和声明。 As the core files of the PduR module, they implement all the external interfaces of the PduR module, as well as the definitions and declarations of local variables and local functions necessary for realizing the functions of the PduR module.
PduR.h	实现PduR模块全部外部接口的声明，以及配置文件中全局变量的声明，必要宏的定义。 Implements the declarations of all external interfaces of the PduR module, as well as the declarations of global variables in the configuration files and the definitions of necessary macros.
PduR_Route.c	实现PduR模块Route功能需要使用到的全部内部接口函数定义、local函数声明。 Implements the definitions of all internal interface functions and the declarations of local functions used for realizing the Route function of the PduR module.
PduR_Route.h	实现PduR模块Route功能需要使用到的全部内部接口函数声明。 Implements the declarations of all internal interface functions used for realizing the Route function of the PduR module.
PduR_Buffer.c	实现PduR模块Buffer功能需要使用到的全部内部接口函数定义，以及实现Buffer功能所必须的local变量定义、local函数定义和声明。 Implements the definitions of all internal interface functions used for realizing the Buffer function of the PduR module, as well as the definitions and declarations of local variables and local functions necessary for realizing the Buffer function.
PduR_Buffer.h	实现PduR模块Buffer功能需要使用到的全部内部接口函数声明。 Implements the declarations of all internal interface functions used for realizing the Buffer function of the PduR module.
PduR_Internal.c	实现PduR模块内部全局变量的定义，内部接口的实现。 Implements the definitions of internal global variables and the realization of internal interfaces of the PduR module.
PduR_Internal.h	实现PduR模块内部宏的定义，全局变量的声明，内部inline接口的实现。 Implements the definitions of internal macros, the declarations of global variables, and the realization of internal inline interfaces of the PduR module.
PduR_Types.h	实现外部/内部类型的定义，包括AUTOSAR标准定义的类型，以及PB/PC配置参数结构体类型，以及内部运行时结构体类型。 Implements the definitions of external/internal types, including types defined by the AUTOSAR standard, structure types of PB/PC configuration parameters, and internal runtime structure types.
PduR_MemMap.h	实现PduR模块内存布局。 Implements the memory layout of the PduR module.

动态文件（Dynamic Files）¶

文件（File）	描述（Description）
PduR_Cfg.h	定义PduR模块PC配置的宏定义 Defines the macro definitions for the PC configuration of the PduR module
PduR_Cfg.c	定义PduR模块PC配置的结构体参数 Defines the structure parameters for the PC configuration of the PduR module
PduR_PBcfg.h	定义PduR模块PB配置的宏定义 Defines the macro definitions for the PB configuration of the PduR module
PduR_PBcfg.c	定义PduR模块PB配置的结构体参数 Defines the structure parameters for the PB configuration of the PduR module
PduR_<Module>.h	实现Module需要调用的PduR接口宏定义 Implements the macro definitions of PduR interfaces that need to be called by the Module

错误处理（Error handling）¶

开发错误（Development errors）¶

Error code	Value[hex]	Description
PDUR_E_INIT_FAILED	0x00	Invalid configuration pointer
PDUR_E_UNINIT	0x01	API service (except PduR_GetVersionInfo) used without module initialization or PduR_Init called in any state other than PDUR_UNINIT
PDUR_E_PDU_ID_INVALID	0x02	Invalid PDU identifier
PDUR_E_ROUTING_PATH_GROUP_ID_INVALID	0x08	If the routing table is invalid that is given to the PduR_EnableRouting or PduR_DisableRouting functions

产品错误（Product Error）¶

无

运行时错误（Runtime error）¶

Error code	Value[hex]	Description
PDUR_E_TP_GW_TX_REQ_REJECTED	0x03	TP module rejected a transmit request for a valid PDU identifier in case of gateway operation
PDUR_E_PDU_INSTANCES_LOST	0x0a	Loss of a PDU instance (buffer overrun in gateway operation)

接口描述（Interface Description）¶

类型定义（Type Definitions）¶

Type Name	Type	Description
PduR_PBConfigIdType	uint16	Identification of the post-build configuration.
PduR_RoutingPathGroupIdType	uint16	Identification of a Routing group.
PduR_QueueDepthType	uint8	PduR queue depth type.
PduR_BufferPoolSizeType	uint8	PduR buffer pool size type.
PduR_BufferIndexType	uint16	PduR buffer index type.
PduR_RoutingPathGroupType	struct	PduR route path group type.
PduR_BufferPoolType	struct	PduR buffer pool type.
PduR_QueueCfgType	struct	PduR queue configuration type.
PduR_DefaultValueType	struct	PduR path default value type.
PduR_SrcPduType	struct	PduR src pdu type.
PduR_DestPduType	struct	PduR dest pdu type.
PduR_RoutingPathType	struct	PduR route path type.
PduR_RoutingTableType	struct	PduR route table type.
PduR_PBConfigType	struct	The root struct configuration parameters of PduR.
PduR_ModuleCancelReceiveApiType	Std_ReturnType func(PduIdType)	PduRCancelReceive function prototype.
PduR_ModuleIfTpCancelTransmitApiType	Std_ReturnType func(PduIdType)	PduRCancelTransmit function prototype.
PduR_ModuleTriggertransmitApiType	Std_ReturnType func(PduIdType, PduInfoType*)	PduRTriggertransmit function prototype.
PduR_ModuleIfTransmitApiType	Std_ReturnType func(PduIdType, const PduInfoType*)	PduRTransmit function prototype.
PduR_ModuleTxConfirmationApiType	void func(PduIdType, Std_ReturnType)	PduRTxConfirmation function prototype.
PduR_ModuleIfRxIndicationApiType	void func(PduIdType, const PduInfoType*)	PduRRxIndication function prototype.
PduR_ModuleTpTransmitApiType	Std_ReturnType func(PduIdType, const PduInfoType*)	PduRTpTransmit function prototype.
PduR_ModuleCopyTxDataApiType	BufReq_ReturnType func(PduIdType, const PduInfoType, const RetryInfoType, PduLengthType*)	PduRCopyTxData function prototype.
PduR_ModuleTpTxConfirmationApiType	void func(PduIdType, Std_ReturnType)	PduRTpTxConfirmation function prototype.
PduR_ModuleStartOfReceptionApiType	BufReq_ReturnType func(PduIdType, const PduInfoType, PduLengthType, PduLengthType)	PduRStartOfReception function prototype.
PduR_ModuleCopyRxDataApiType	BufReq_ReturnType func(PduIdType, const PduInfoType, PduLengthType)	PduRCopyRxData function prototype.
PduR_ModuleTpRxIndicationApiType	void func(PduIdType, Std_ReturnType)	PduRTpRxIndication function prototype.
PduR_BswModuleType	struct	PduR Module configuration type.
PduR_BufferType	struct	PduRTxBuffer design.
PduR_QueueRuntimeType	struct	PduR queue runtime type.

None

提供的服务（Provided Services）¶

PduR_Init¶

void PduR_Init(const PduR_PBConfigType *ConfigPtr)

Initializes the PDU Router.

Sync/Async: TRUE
Reentrancy: Non Reentrant

Parameters

Dir	Name	Description
[in]	ConfigPtr	Pointer to Post build configuration data.

Return type: void

PduR_GetVersionInfo¶

void PduR_GetVersionInfo(Std_VersionInfoType *versionInfo)

Returns the version information of this module.

Sync/Async: TRUE
Reentrancy: Reentrant

Parameters

Dir	Name	Description
[out]	versionInfo	Pointer to where to store the version information of this module.

Return type: void

PduR_GetConfigurationId¶

PduR_PBConfigIdType PduR_GetConfigurationId(void)

Returns the unique identifier of the post-build time configuration of the PDU Router.

Sync/Async: TRUE
Reentrancy: Reentrant
Return type: PduR_PBConfigIdType

PduR_EnableRouting¶

void PduR_EnableRouting(PduR_RoutingPathGroupIdType id)

Enables a routing path group.

Sync/Async: TRUE
Reentrancy: Reentrant

Parameters

Dir	Name	Description
[in]	id	Identification of the routing path group. Routing path groups are defined in the PDU router configuration.

Return type: void

PduR_DisableRouting¶

void PduR_DisableRouting(PduR_RoutingPathGroupIdType id, boolean initialize)

Disables a routing path group.

Sync/Async: TRUE
Reentrancy: Reentrant

Parameters

Dir	Name	Description
[in]	id	Identification of the routing path group. Routing path groups are defined in the PDU router configuration.
[in]	initialize	true : initialize single buffers to the default value false : retain current value of single buffers

Return type: void

PduR_Transmit¶

Std_ReturnType PduR_Transmit(PduIdType TxPduId, const PduInfoType *PduInfoPtr)

Requests transmission of a PDU.

Sync/Async: TRUE
Reentrancy: Reentrant for different PduIds. Non reentrant for the same PduId.

Parameters

Dir	Name	Description
[in]	TxPduId	Identifier of the PDU to be transmitted
[in]	PduInfoPtr	Length of and pointer to the PDU data and pointer to MetaData.

Return type: Std_ReturnType

Return values

Name	Description
E_OK	Transmit request has been accepted.
E_NOT_OK	Transmit request has not been accepted.

PduR_CancelTransmit¶

Std_ReturnType PduR_CancelTransmit(PduIdType TxPduId)

Requests cancellation of an ongoing transmission of a PDU in a lower layer communication module.

Sync/Async: TRUE
Reentrancy: Reentrant for different PduIds. Non reentrant for the same PduId.

Parameters

Dir	Name	Description
[in]	TxPduId	Identifier of the PDU to be transmitted

Return type: Std_ReturnType

Return values

Name	Description
E_OK	Cancellation was executed successfully by the destination module.
E_NOT_OK	Cancellation was rejected by the destination module.

PduR_CancelReceive¶

Std_ReturnType PduR_CancelReceive(PduIdType RxPduId)

Requests cancellation of an ongoing reception of a PDU in a lower layer transport protocol module.

Sync/Async: TRUE
Reentrancy: Non Reentrant

Parameters

Dir	Name	Description
[in]	RxPduId	Identification of the PDU to be cancelled.

Return type: Std_ReturnType

Return values

Name	Description
E_OK	Cancellation was executed successfully by the destination module.
E_NOT_OK	Cancellation was rejected by the destination module.

PduR_IfRxIndication¶

void PduR_IfRxIndication(PduIdType RxPduId, const PduInfoType *PduInfoPtr)

Indication of a received PDU from a lower layer communication interface module.

Sync/Async: TRUE
Reentrancy: Reentrant for different PduIds. Non reentrant for the same PduId

Parameters

Dir	Name	Description
[in]	RxPduId	ID of the received PDU.
[in]	PduInfoPtr	Contains the length (SduLength) of the received PDU, a pointer to a buffer (SduDataPtr) containing the PDU, and the MetaData related to this PDU.

Return type: void

PduR_IfTxConfirmation¶

void PduR_IfTxConfirmation(PduIdType TxPduId, Std_ReturnType result)

The lower layer communication interface module confirms the transmission of a PDU, or the failure to transmit a PDU.

Sync/Async: TRUE
Reentrancy: Reentrant for different PduIds. Non reentrant for the same PduId

Parameters

Dir	Name	Description
[in]	TxPduId	ID of the PDU that has been transmitted.
[in]	result	E_OK : The PDU was transmitted. E_NOT_OK : Transmission of the PDU failed.

Return type: void

PduR_IfTriggerTransmit¶

Std_ReturnType PduR_IfTriggerTransmit(PduIdType TxPduId, PduInfoType *PduInfoPtr)

Within this API, the upper layer module (called module) shall check whether the available data fits into the buffer size reported by PduInfoPtr->SduLength. If it fits, it shall copy its data into the buffer provided by PduInfoPtr->SduDataPtr and update the length of the actual copied data in PduInfoPtr->SduLength. If not, it returns E_NOT_OK without changing PduInfoPtr.

Sync/Async: TRUE
Reentrancy: Reentrant for different PduIds. Non reentrant for the same PduId

Parameters

Dir	Name	Description
[in]	TxPduId	ID of the SDU that is requested to be transmitted.
[inout]	PduInfoPtr	Contains a pointer to a buffer (SduDataPtr) to where the SDU data shall be copied, and the available buffer size in SduLengh. On return, the service will indicate the length of the copied SDU data in SduLength.

Return type: Std_ReturnType

Return values

Name	Description
E_OK	SDU has been copied and SduLength indicates the number of copied bytes.
E_NOT_OK	No SDU data has been copied. PduInfoPtr must not be used since it may contain a NULL pointer or point to invalid data.

PduR_TpCopyRxData¶

BufReq_ReturnType PduR_TpCopyRxData(PduIdType id, const PduInfoType *info, PduLengthType *bufferSizePtr)

This function is called to provide the received data of an I-PDU segment (N-PDU) to the upper layer. Each call to this function provides the next part of the I-PDU data. The size of the remaining buffer is written to the position indicated by bufferSizePtr.

Sync/Async: TRUE
Reentrancy: Reentrant

Parameters

Dir	Name	Description
[in]	id	Identification of the received I-PDU.
[in]	info	Provides the source buffer (SduDataPtr) and the number of bytes to be copied (SduLength). An SduLength of 0 can be used to query the current amount of available buffer in the upper layer module. In this case, the SduDataPtr may be a NULL_PTR.
[out]	bufferSizePtr	Available receive buffer after data has been copied.

Return type: BufReq_ReturnType

Return values

Name	Description
BUFREQ_OK	Data copied successfully
BUFREQ_E_NOT_OK	Data was not copied because an error occurred.

PduR_TpRxIndication¶

void PduR_TpRxIndication(PduIdType id, Std_ReturnType result)

Called after an I-PDU has been received via the TP API, the result indicates whether the transmission was successful or not.

Sync/Async: TRUE
Reentrancy: Reentrant

Parameters

Dir	Name	Description
[in]	id	Identification of the received I-PDU.
[in]	result	E_OK : The PDU was received. E_NOT_OK : Reception of the PDU failed.

Return type: void

PduR_TpStartOfReception¶

BufReq_ReturnType PduR_TpStartOfReception(PduIdType id, const PduInfoType *info, PduLengthType TpSduLength, PduLengthType *bufferSizePtr)

This function is called at the start of receiving an N-SDU. The N-SDU might be fragmented into multiple N-PDUs (FF with one or more following CFs) or might consist of a single N-PDU (SF). The service shall provide the currently available maximum buffer size when invoked with TpSdu Length equal to 0.

Sync/Async: TRUE
Reentrancy: Reentrant

Parameters

Dir	Name	Description
[in]	id	Identification of the I-PDU.
[in]	info	Pointer to a PduInfoType structure containing the payload data (without protocol information) and payload length of the first frame or single frame of a transport protocol I-PDU reception, and the MetaData related to this PDU. If neither first/single frame data nor MetaData are available, this parameter is set to NULL_PTR.
[in]	TpSduLength	Total length of the N-SDU to be received.
[out]	bufferSizePtr	Available receive buffer in the receiving module. This parameter will be used to compute the Block Size (BS) in the transport protocol module.

Return type: BufReq_ReturnType

Return values

Name	Description
BUFREQ_OK	Connection has been accepted. bufferSizePtr indicates the available receive buffer; reception is continued. If no buffer of the requested size is available, a receive buffer size of 0 shall be indicated by bufferSizePtr.
BUFREQ_E_NOT_OK	Connection has been rejected; reception is aborted. bufferSizePtr remains unchanged.
BUFREQ_E_OVFL	No buffer of the required length can be provided; reception is aborted. bufferSizePtr remains unchanged.

PduR_TpCopyTxData¶

BufReq_ReturnType PduR_TpCopyTxData(PduIdType id, const PduInfoType *info, const RetryInfoType *retry, PduLengthType *availableDataPtr)

This function is called to acquire the transmit data of an I-PDU segment (N-PDU). Each call to this function provides the next part of the I-PDU data unless retry->TpDataState is TP_DATARETRY. In this case the function restarts to copy the data beginning at the offset from the current position indicated by retry->TxTpDataCnt. The size of the remaining data is written to the position indicated by availableDataPtr.

Sync/Async: TRUE
Reentrancy: Reentrant

Parameters

Dir	Name	Description
[in]	id	Identification of the transmitted I-PDU.
[in]	info	Provides the destination buffer (SduDataPtr) and the number of bytes to be copied (SduLength). If not enough transmit data is available, no data is copied by the upper layer module and BUFREQ_E_BUSY is returned. The lower layer module may retry the call. An SduLength of 0 can be used to indicate state changes in the retry parameter or to query the current amount of available data in the upper layer module. In this case, the Sdu DataPtr may be a NULL_PTR.
[in]	retry	This parameter is used to acknowledge transmitted data or to retransmit data after transmission problems. If the retry parameter is a NULL_PTR, it indicates that the transmit data can be removed from the buffer immediately after it has been copied. Otherwise, the retry parameter must point to a valid RetryInfoType element. If TpDataState indicates TP_CONFPENDING, the previously copied data must remain in the TP buffer to be available for error recovery. TP_DATACONF indicates that all data that has been copied before this call is confirmed and can be removed from the TP buffer. Data copied by this API call is excluded and will be confirmed later. TP_DATARETRY indicates that this API call shall copy previously copied data in order to recover from an error. In this case TxTpDataCnt specifies the offset in bytes from the current data copy position.
[out]	availableDataPtr	Indicates the remaining number of bytes that are available in the upper layer module’s Tx buffer. availableDataPtr can be used by TP modules that support dynamic payload lengths (e.g. FrIsoTp) to determine the size of the following CFs.

Return type: BufReq_ReturnType

Return values

Name	Description
BUFREQ_OK	Data has been copied to the transmit buffer completely as requested.
BUFREQ_E_BUSY	Request could not be fulfilled, because the required amount of Tx data is not available. The lower layer module may retry this call later on. No data has been copied.
BUFREQ_E_NOT_OK	Data has not been copied. Request failed.

PduR_TpTxConfirmation¶

void PduR_TpTxConfirmation(PduIdType id, Std_ReturnType result)

This function is called after the I-PDU has been transmitted on its network, the result indicates whether the transmission was successful or not.

Sync/Async: TRUE
Reentrancy: Reentrant

Parameters

Dir	Name	Description
[in]	id	Identification of the transmitted I-PDU.
[in]	result	E_OK : The PDU was transmitted. E_NOT_OK : Transmission of the PDU failed.

Return type: void

配置（configuration）¶

发送路由配置（Transmit Routing Configuration）¶

IF PDU的发送：

Transmission of IF PDU:

在PduR添加配置路由PduRRoutingPath，为每一个PduRDestPdu配置一个PduRRoutingPath（IF PDU 1：N路由场景就存在N个PduRRoutingPath，这N个PduRRoutingPath的PduRSrcPduRRef相同）。其中PduRRouteType配置为IF，配置项PduRSrcPduRRef关联一个PduRSrcPdu，该PduRSrcPdu通过PduRSrcPduRef关联的Pdu（EcuC）与上层模块发送TxPdu关联，配置项PduRDestPduRRef关联一个PduRDestPdu，该PduRDestPdu通过PduRDestPduRef关联的Pdu与下层IF模块关联。上层模块通过调用PduR_<User：Up>Transmit或者下层模块通过调用PduR_<User：Lo>TriggerTransmit（传递到上层）请求PDU的发送，发送成功后调用上层PduR_<User：Lo>TxConfirmation进行发送成功确认。

Add and configure the routing PduRRoutingPath in PduR, and configure a PduRRoutingPath for each PduRDestPdu (in the case of IF PDU 1:N routing, there will be N PduRRoutingPaths, and these N PduRRoutingPaths have the same PduRSrcPduRRef). Among them, PduRRouteType is configured as IF, the configuration item PduRSrcPduRRef is associated with a PduRSrcPdu, and this PduRSrcPdu is associated with the TxPdu sent by the upper-layer module through the Pdu (EcuC) associated with PduRSrcPduRef. The configuration item PduRDestPduRRef is associated with a PduRDestPdu, and this PduRDestPdu is associated with the lower-layer IF module through the Pdu associated with PduRDestPduRef. The upper-layer module requests the transmission of PDU by calling PduR_User:UpTransmit, or the lower-layer module requests the transmission of PDU by calling PduR_User:LoTriggerTransmit (passed to the upper layer). After the transmission is successful, call the upper-layer PduR_User:LoTxConfirmation to confirm the successful transmission.

TP PDU的发送：

Transmission of TP PDU:

在PduR添加配置路由PduRRoutingPath，为每一个PduRDestPdu配置一个PduRRoutingPath。其中PduRRouteType配置为TP，配置项PduRSrcPduRRef关联一个PduRSrcPdu，该PduRSrcPdu通过PduRSrcPduRef关联的Pdu（EcuC）与上层模块发送TxPdu关联，配置项PduRDestPduRRef关联一个PduRDestPdu，该PduRDestPdu通过PduRDestPduRef关联的Pdu与下层TP模块关联。上层模块通过调用PduR_<User：Up>Transmit请求PDU的发送，下层模块通过调用PduR_<User：LoTp>CopyTxData（传递到上层）来获取PDU发送数据段，下层模块通过调用PduR_<User：LoTp>TxConfirmation（传递到上层）通知上层发送结束（成功/失败）。

Add and configure the routing PduRRoutingPath in PduR, and configure a PduRRoutingPath for each PduRDestPdu. Among them, PduRRouteType is configured as TP, the configuration item PduRSrcPduRRef is associated with a PduRSrcPdu, This PduRSrcPdu is associated with the TxPdu sent by the upper-layer module through the Pdu (EcuC) associated with PduRSrcPduRef. The configuration item PduRDestPduRRef is associated with a PduRDestPdu, and this PduRDestPdu is associated with the lower-layer TP module through the Pdu associated with PduRDestPduRef. The upper-layer module requests the transmission of PDU by calling PduR_User:UpTransmit, and the lower-layer module obtains the PDU transmission data segment by calling PduR_User:LoTpCopyTxData (passed to the upper layer). The lower-layer module notifies the upper layer of the end of transmission (success/failure) by calling PduR_User:LoTpTxConfirmation (passed to the upper layer).

接收路由配置（Receive Routing Configuration）¶

IF PDU的接收：

Reception of IF PDU:

在PduR添加配置路由PduRRoutingPath，为每一个PduRDestPdu配置一个PduRRoutingPath（1：N路由场景就存在N个PduRRoutingPath，这N个PduRRoutingPath的PduRSrcPduRRef相同）。其中PduRRouteType配置为IF，配置项PduRSrcPduRRef关联一个PduRSrcPdu，该PduRSrcPdu通过PduRSrcPduRef关联的Pdu（EcuC）与下层IF模块接收RxPdu关联，配置项PduRDestPduRRef关联一个PduRDestPdu，该PduRDestPdu通过PduRDestPduRef关联的Pdu与上层模块关联。下层模块通过调用PduR_<User：Lo>RxIndication将接收报文传递给上层。

Add and configure the routing PduRRoutingPath in PduR, and configure a PduRRoutingPath for each PduRDestPdu (in the case of 1:N routing, there will be N PduRRoutingPaths, and these N PduRRoutingPaths have the same PduRSrcPduRRef). Among them, PduRRouteType is configured as IF, the configuration item PduRSrcPduRRef is associated with a PduRSrcPdu, and this PduRSrcPdu is associated with the RxPdu received by the lower-layer IF module through the Pdu (EcuC) associated with PduRSrcPduRef. The configuration item PduRDestPduRRef is associated with a PduRDestPdu, and this PduRDestPdu is associated with the upper-layer module through the Pdu associated with PduRDestPduRef. The lower-layer module passes the received message to the upper layer by calling PduR_User:LoRxIndication.

TP PDU的接收：

Reception of TP PDU:

在PduR添加配置路由PduRRoutingPath，为每一个PduRDestPdu配置一个PduRRoutingPath（1：N路由场景就存在N个PduRRoutingPath，这N个PduRRoutingPath的PduRSrcPduRRef相同）。其中PduRRouteType配置为TP，配置项PduRSrcPduRRef关联一个PduRSrcPdu，该PduRSrcPdu通过PduRSrcPduRef关联的Pdu（EcuC）与下层TP模块接收RxPdu关联，配置项PduRDestPduRRef关联一个PduRDestPdu，该PduRDestPdu通过PduRDestPduRef关联的Pdu与上层模块关联。调用PduR_<User：LoTp>StartOfReception， PduR_<User：LoTp>CopyRxData，PduR_<User：LoTp>RxIndication完成TP PDU接收流程。

Add and configure the routing PduRRoutingPath in PduR, and configure a PduRRoutingPath for each PduRDestPdu (in the case of 1:N routing, there will be N PduRRoutingPaths, and these N PduRRoutingPaths have the same PduRSrcPduRRef). Among them, PduRRouteType is configured as TP, the configuration item PduRSrcPduRRef is associated with a PduRSrcPdu, and this PduRSrcPdu is associated with the RxPdu received by the lower-layer TP module through the Pdu (EcuC) associated with PduRSrcPduRef. The configuration item PduRDestPduRRef is associated with a PduRDestPdu, and this PduRDestPdu is associated with the upper-layer module through the Pdu associated with PduRDestPduRef. Call PduR_User:LoTpStartOfReception, PduR_User:LoTpCopyRxData, PduR_User:LoTpRxIndication to complete the TP PDU reception process.

网关路由配置（Gateway Routing Configuration）¶

IF PDU的网关：

Gateway of IF PDU:

在PduR添加配置路由PduRRoutingPath，为每一个PduRDestPdu配置一个PduRRoutingPath（1：N路由场景就存在N个PduRRoutingPath，这N个PduRRoutingPath的PduRSrcPduRRef相同）。其中PduRRouteType配置为IF，配置项PduRSrcPduRRef关联一个PduRSrcPdu，该PduRSrcPdu通过PduRSrcPduRef关联的Pdu（EcuC）与下层IF模块接收RxPdu关联，配置项PduRDestPduRRef关联一个PduRDestPdu，该PduRDestPdu通过PduRDestPduRef关联的Pdu与下层IF模块发送TxPdu关联，若PduRDestPduRRef通过PduRDestPduRef关联的TxPdu发送方式为TriggerTransmit, 则相应PduRDestPdu的PduRDestPduDataProvision需配置为PDUR_TRIGGERTRANSMIT，反之配置为PDUR_DIRECT。若配置为PDUR_TRIGGERTRANSMIT则必须为该PduRRoutingPath配置queue，以及配置PduRDefaultValueElement来设置Pdu初始默认值。配置为PDUR_DIRECT时也可以选择配置queue，以降低丢帧概率。

Add and configure the routing PduRRoutingPath in PduR, and configure a PduRRoutingPath for each PduRDestPdu (in the case of 1:N routing, there will be N PduRRoutingPaths, and these N PduRRoutingPaths have the same PduRSrcPduRRef). Among them, PduRRouteType is configured as IF, the configuration item PduRSrcPduRRef is associated with a PduRSrcPdu, and this PduRSrcPdu is associated with the RxPdu received by the lower-layer IF module through the Pdu (EcuC) associated with PduRSrcPduRef. The configuration item PduRDestPduRRef is associated with a PduRDestPdu, and this PduRDestPdu is associated with the TxPdu sent by the lower-layer IF module through the Pdu associated with PduRDestPduRef. If the transmission mode of the TxPdu associated with PduRDestPduRRef through PduRDestPduRef is TriggerTransmit, then PduRDestPduDataProvision of the corresponding PduRDestPdu must be configured as PDUR_TRIGGERTRANSMIT; otherwise, it is configured as PDUR_DIRECT. If configured as PDUR_TRIGGERTRANSMIT, a queue must be configured for this PduRRoutingPath, and PduRDefaultValueElement must be configured to set the initial default value of Pdu. When configured as PDUR_DIRECT, a queue can also be optionally configured to reduce the probability of frame loss.

注意：queue的配置，①需要在相应的PduRRoutingPath中配置非0的PduRQueueDepth值；②添加PduRTxBuffer配置，没有被任何PduRRoutingPath关联的PduRTxBuffer属于Global buffer，存在资源抢占。仅被某一个PduRRoutingPath关联的PduRTxBuffer属于该PduRRoutingPath的Dedicated buffer，该PduRTxBuffer仅可以被该PduRRoutingPath申请；③PduRDestTxBufferRef可以关联最多PduRQueueDepth个PduRTxBuffer，也可以不关联任何PduRTxBuffer。

Note: For queue configuration, ① a non-zero PduRQueueDepth value needs to be configured in the corresponding PduRRoutingPath; ② add PduRTxBuffer configuration. PduRTxBuffer not associated with any PduRRoutingPath belongs to the Global buffer, and there is resource preemption. PduRTxBuffer associated with only one PduRRoutingPath belongs to the Dedicated buffer of that PduRRoutingPath, and this PduRTxBuffer can only be applied for by that PduRRoutingPath; ③ PduRDestTxBufferRef can be associated with up to PduRQueueDepth PduRTxBuffers, or it can not be associated with any PduRTxBuffer.

TP PDU的网关：

Gateway of TP PDU:

在PduR添加配置路由PduRRoutingPath，为每一个PduRDestPdu配置一个PduRRoutingPath（1：N路由场景就存在N个PduRRoutingPath，这N个PduRRoutingPath的PduRSrcPduRRef相同）。其中PduRRouteType配置为TP，配置项PduRSrcPduRRef关联一个PduRSrcPdu，该PduRSrcPdu通过PduRSrcPduRef关联的Pdu（EcuC）与下层TP模块接收RxPdu关联，配置项PduRDestPduRRef关联一个PduRDestPdu，该PduRDestPdu通过PduRDestPduRef关联的Pdu与下层TP模块发送TxPdu关联。若不希望等到全部RxPdu数据接收完成才开始执行转发，即希望通过“gatewaying-on-the-fly”方式进行转发，可通过配置PduRTpThreshold（1：N时只允许最多一个相同PduRSrcPduRRef的PduRRoutingPath配置阈值）来实现，当接收数据长度超过该阈值或者接收完成，则触发TxPdu进行转发。

Add and configure the routing PduRRoutingPath in PduR, and configure a PduRRoutingPath for each PduRDestPdu (in the case of 1:N routing, there will be N PduRRoutingPaths, and these N PduRRoutingPaths have the same PduRSrcPduRRef). Among them, PduRRouteType is configured as TP, the configuration item PduRSrcPduRRef is associated with a PduRSrcPdu, and this PduRSrcPdu is associated with the RxPdu received by the lower-layer TP module through the Pdu (EcuC) associated with PduRSrcPduRef. The configuration item PduRDestPduRRef is associated with a PduRDestPdu, and this PduRDestPdu is associated with the TxPdu sent by the lower-layer TP module through the Pdu associated with PduRDestPduRef. If you do not want to wait for all RxPdu data to be received before starting forwarding, that is, you want to forward in the “gatewaying-on-the-fly” mode, you can configure PduRTpThreshold (in the case of 1:N, only one PduRRoutingPath with the same PduRSrcPduRRef is allowed to configure the threshold). When the received data length exceeds this threshold or the reception is completed, the TxPdu is triggered for forwarding.

注意：TP PDU的网关必须配置queue；IF PDU的网关（PduRDestPduDataProvision为PDUR_TRIGGERTRANSMIT的路由必须配置queue；PDUR_DIRECT的路由不需要配queue，如果配置的话可以在一定程度上减少丢帧）

Note: The gateway of TP PDU must be configured with a queue; for the gateway of IF PDU (the route with PduRDestPduDataProvision as PDUR_TRIGGERTRANSMIT must be configured with a queue; the route with PDUR_DIRECT does not need to be configured with a queue, but if configured, it can reduce frame loss to a certain extent)

路由控制配置（Routing Control Configuration）¶

基于下面原则：（Based on the following principles:）¶

RoutingPathGroup通过配置项PduRIsEnabledAtInit决定初始化之后，该RoutingPathGroup的使能状态

RoutingPathGroup determines the enable state of the RoutingPathGroup after initialization through the configuration item PduRIsEnabledAtInit
所有PduRRoutingPath通过PduRRoutingPathGroupRef会关联0..N个RoutingPathGroup

All PduRRoutingPaths will be associated with 0..N RoutingPathGroups through PduRRoutingPathGroupRef
如果该PduRRoutingPath未关联任何RoutingPathGroup 或者关联的至少一个RoutingPathGroup处于使能状态，则该PduRRoutingPath对应的PduRDestPdu（唯一）为Enable，否则为Disable状态

If the PduRRoutingPath is not associated with any RoutingPathGroup or is associated with at least one enabled RoutingPathGroup, then the PduRDestPdu (unique) corresponding to the PduRRoutingPath is in the Enable state; otherwise, it is in the Disable state
运行时，通过调用PduR_EnableRouting/ PduR_DisableRouting来控制RoutingPathGroup的使能状态，从而间接控制PduRDestPdu使能状态

During runtime, call PduR_EnableRouting/ PduR_DisableRouting to control the enable state of RoutingPathGroup, thereby indirectly controlling the enable state of PduRDestPdu
未通过PduRRoutingPathGroupRef关联任何RoutingPathGroup的PduRDestPdu初始化之后其状态一直为Enable，不可改变

The PduRDestPdu not associated with any RoutingPathGroup through PduRRoutingPathGroupRef will remain in the Enable state after initialization and cannot be changed

多分区控制配置（Multi-Partition Control Configuration）¶

如果在工程中EcucPartition存在大于1个的配置，则认为该工程支持多分区 / 多核。 PduR共有三个独占区保护类型：

If there are more than one configurations for EcucPartition in the project, the project is considered to support multi-partition/multi-core. PduR has three exclusive area protection types:

SchM_Enter_PduR_ExclusiveArea_Group是对于Group使能或者禁用的保护，因为一个group下的destpdu均属于一个分区，推荐使用禁中断方式ALL_INTERRUPT_BLOCKING

SchM_Enter_PduR_ExclusiveArea_Group is for protecting the enabling or disabling of Group. Since the destpdus under a group belong to one partition, it is recommended to use the interrupt disabling method ALL_INTERRUPT_BLOCKING
SchM_Enter_PduR_ExclusiveArea_Route是对于PduRBuffer申请的保护，

SchM_Enter_PduR_ExclusiveArea_Route is for protecting the application for PduRBuffer,
- (推荐)如果所有需要配置PduRBuffer的PduRRoutingPath，均配置了私有buffer，且不存在共用私有buffer，则推荐使用禁中断方式ALL_INTERRUPT_BLOCKING；

  (Recommended) If all PduRRoutingPaths that need to configure PduRBuffer are configured with private buffers and there is no shared private buffer, it is recommended to use the interrupt disabling method ALL_INTERRUPT_BLOCKING;
- 如果存在共用buffer且会同时申请buffer，则需要配置为OS_SPINLOCK;

  If there are shared buffers and they may apply for buffers at the same time, it needs to be configured as OS_SPINLOCK;
SchM_Enter_PduR_ExclusiveArea_Init是对于初始化时逻辑的保护，推荐使用禁中断方式ALL_INTERRUPT_BLOCKING

SchM_Enter_PduR_ExclusiveArea_Init is for protecting the logic during initialization, and it is recommended to use the interrupt disabling method ALL_INTERRUPT_BLOCKING

配置（configuration）¶

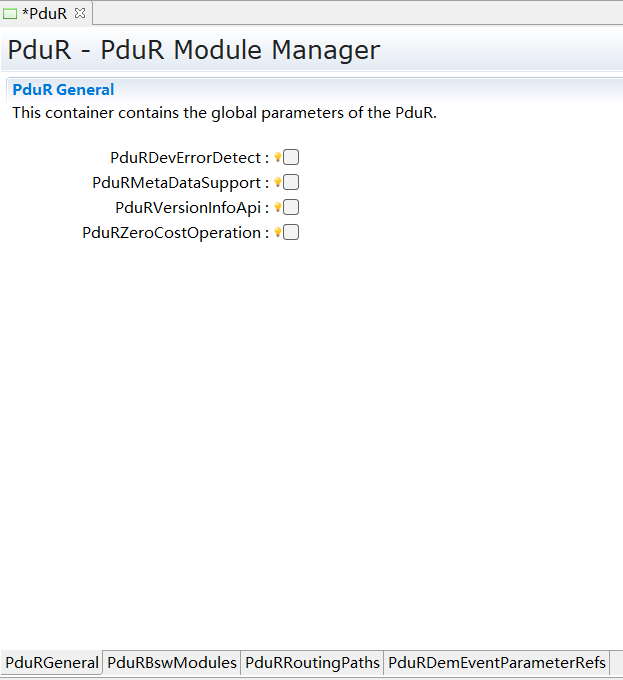

PduRGeneral配置（PduRGeneral Configuration）¶

常规参数配置列表（List of General Parameter Configurations）¶

参数名称（Parameter Name）	参数范围（Parameter Range）	默认取值（Default Value）	参数描述（Parameter Description）	依赖关系（Dependencies）
PduRDevErrorDetect	TRUE/FALSE	FALSE	是否使能DET开发错误检测 Whether to enable DET development error detection	依赖于Det模块的支持 Depends on the support of the Det module
PduRMetaDataSupport	TRUE/FALSE	FALSE	是否使能MetaData机制 Whether to enable the MetaData mechanism	路由表中Soure Pdu和Dest Pdu的MetaData类型必须一致 The MetaData types of Source Pdu and Dest Pdu in the routing table must be consistent
PduRVersionInfoApi	TRUE/FALSE	FALSE	是否使能获取模块软件版本 Whether to enable obtaining the module software version	无 None
PduRZeroCostOperation	TRUE/FALSE	FALSE	是否使能PduR“透传模式” Whether to enable PduR “transparent transmission mode”	“透传模式”通常用于PduR上下层模块固定且一一对应，不涉及网关。 The “transparent transmission mode” is usually used when the upper and lower modules of PduR are fixed and in one-to-one correspondence, and no gateway is involved.

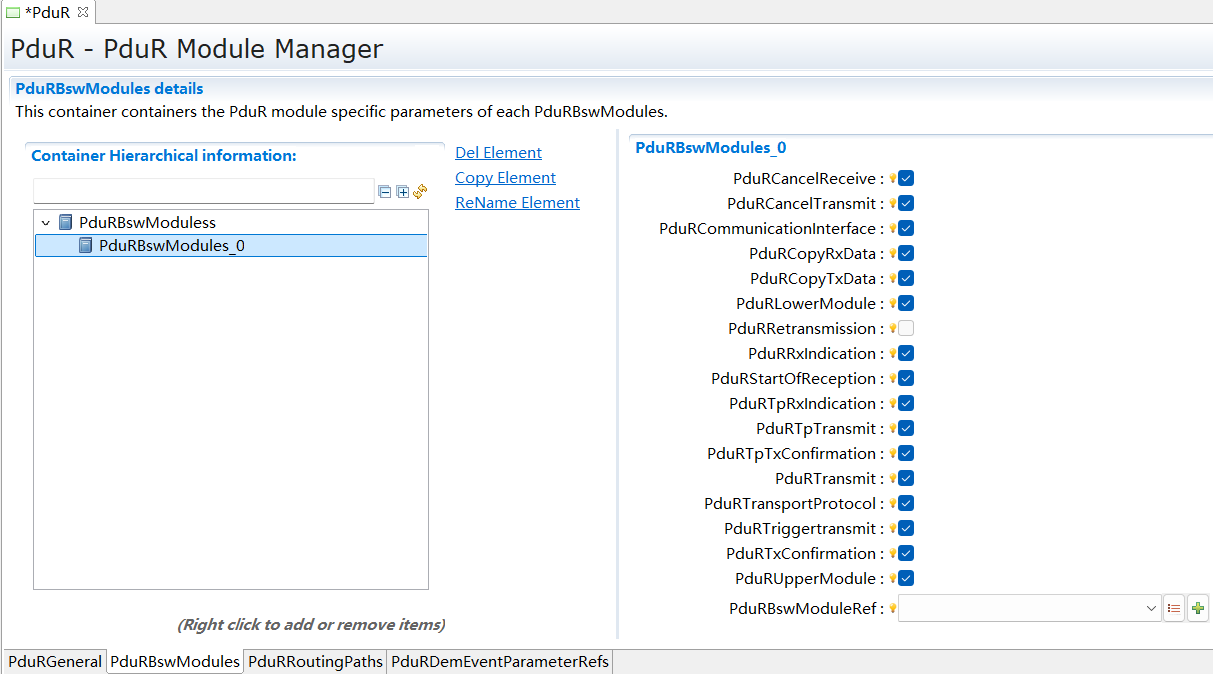

PduRBswModules配置（PduRBswModules Configuration）¶

常规参数配置列表（List of General Parameter Configurations）¶

Autosar架构下，各模块与PduR模块交互的Api配置，工具已支持默认勾选（CDD模块除外）

In the Autosar architecture, the Api configuration for interaction between each module and the PduR module is supported by the tool with default checkmarks (except for the CDD module)

参数名称（Parameter Name）	参数范围（Parameter Range）	默认取值（Default Value）	参数描述（Parameter Description）	依赖关系（Dependencies）
PduRCancelReceive	TRUE/FALSE	TRUE	模块是否支持接收取消 Whether the module supports reception cancellation	PduRBswModuleRef关联TP模块时，该项才可配置 Configurable only when PduRBswModuleRef is associated with a TP module
PduRCancelTransmit	TRUE/FALSE	TRUE	模块是否支持发送取消 Whether the module supports transmission cancellation	无 None
PduRCommunicationInterface	TRUE/FALSE	FALSE	模块是否支持IF Pdu传输 Whether the module supports IF Pdu transmission	根据PduRBswModuleRef关联的模块自动配置 Automatically configured according to the module associated with PduRBswModuleRef
PduRCopyRxData	TRUE/FALSE	TRUE	模块是否支持TP I-PDU数据段接收 Whether the module supports TP I-PDU data segment reception	PduRBswModuleRef关联TP模块时，该项才可配置 Configurable only when PduRBswModuleRef is associated with a TP module
PduRCopyTxData	TRUE/FALSE	TRUE	模块是否支持TP I-PDU发送数据段拷贝 Whether the module supports TP I-PDU transmission data segment copying	PduRBswModuleRef关联TP模块时，该项才可配置 Configurable only when PduRBswModuleRef is associated with a TP module
PduRLowerModule	TRUE/FALSE	FALSE	模块是否处于PduR下层 Whether the module is at the lower layer of PduR	根据PduRBswModuleRef关联的模块自动配置 Automatically configured according to the module associated with PduRBswModuleRef
PduRRetransmission	TRUE/FALSE	TRUE	模块是否支持TP Pdu重传 Whether the module supports TP Pdu retransmission	PduRBswModuleRef关联TP模块时，该项才可配置 Configurable only when PduRBswModuleRef is associated with a TP module
PduRRxIndication	TRUE/FALSE	TRUE	模块是否支持IF Pdu接收 Whether the module supports IF Pdu reception	PduRBswModuleRef关联IF模块时，该项才可配置 Configurable only when PduRBswModuleRef is associated with an IF module
PduRStartOfReception	TRUE/FALSE	TRUE	模块是否支持TP Pdu接收（开始） Whether the module supports TP Pdu reception (start)	PduRBswModuleRef关联TP模块时，该项才可配置 Configurable only when PduRBswModuleRef is associated with a TP module
PduRTpRxIndication	TRUE/FALSE	TRUE	模块是否支持TP接收指示 Whether the module supports TP reception indication	PduRBswModuleRef关联TP模块时，该项才可配置 Configurable only when PduRBswModuleRef is associated with a TP module
PduRTpTransmit	TRUE/FALSE	TRUE	该模块是否支持TP Pdu传输 Whether the module supports TP Pdu transmission	PduRBswModuleRef关联TP模块时，该项才可配置 Configurable only when PduRBswModuleRef is associated with a TP module
PduRTpTxConfirmation	TRUE/FALSE	TRUE	模块是否支持TP Pdu发送确认 Whether the module supports TP Pdu transmission confirmation	PduRBswModuleRef关联TP模块时，该项才可配置 Configurable only when PduRBswModuleRef is associated with a TP module
PduRTransmit	TRUE/FALSE	TRUE	模块是否支持IF Pdu发送 Whether the module supports IF Pdu transmission	PduRBswModuleRef关联IF模块时，该项才可配置 Configurable only when PduRBswModuleRef is associated with an IF module
PduRTransportProtocol	TRUE/FALSE	FALSE	模块是否支持TP传输 Whether the module supports TP transmission	PduRBswModuleRef关联TP模块时，该项才可配置 Configurable only when PduRBswModuleRef is associated with a TP module
PduRTriggertransmit	TRUE/FALSE	TRUE	该模块是否支持IF Pdu通过TriggerTransmit机制进行发送 Whether the module supports IF Pdu transmission through the TriggerTransmit mechanism	PduRBswModuleRef关联IF模块时，该项才可配置 Configurable only when PduRBswModuleRef is associated with an IF module
PduRTxConfirmation	TRUE/FALSE	TRUE	该模块是否支持IF Pdu发送确认 Whether the module supports IF Pdu transmission confirmation	PduRBswModuleRef关联IF模块时，该项才可配置 Configurable only when PduRBswModuleRef is associated with an IF module
PduRUpperModule	TRUE/FALSE	FALSE	模块是否处于PduR上层 Whether the module is at the upper layer of PduR	根据PduRBswModuleRef关联的模块自动配置 Automatically configured according to the module associated with PduRBswModuleRef
PduRBswModuleRef	索引[Module] Index [Module]	无 None	关联与PduR模块交互的上下层模块 Associates the upper and lower modules that interact with the PduR module	根据配置工程中已添加的模块，才能索引 Can only be indexed based on the modules already added in the configuration project

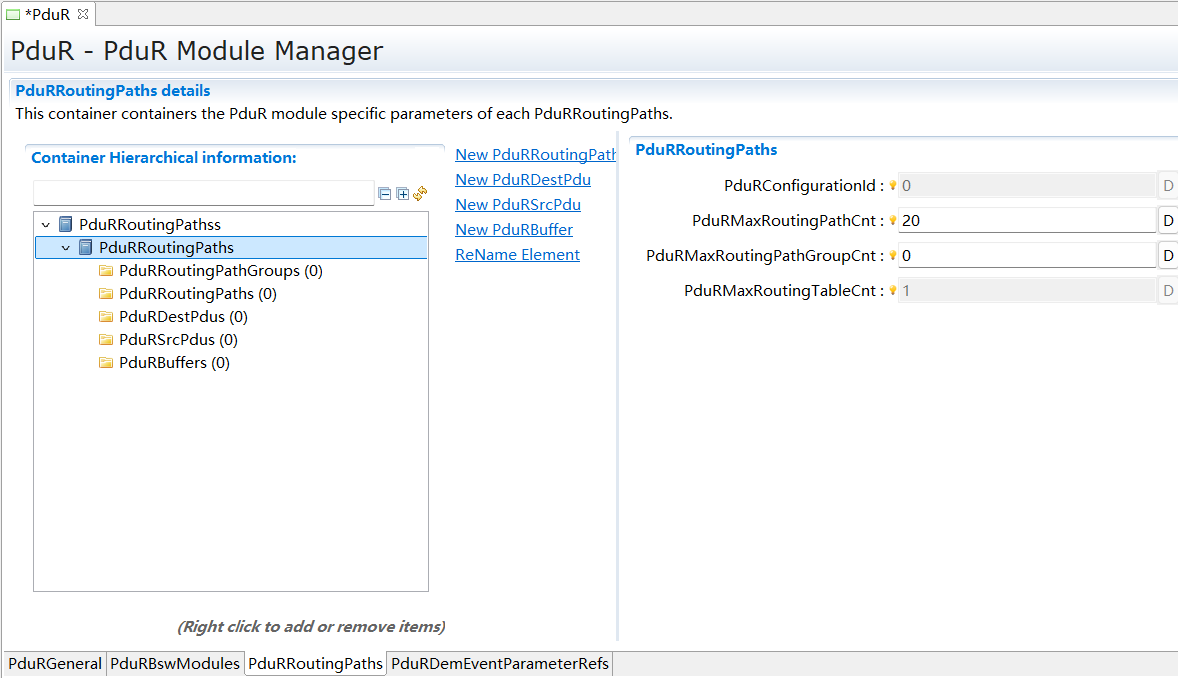

PduRRoutingPaths配置（Configuration of PduRRoutingPaths）¶

常规参数配置列表（List of General Parameter Configurations）¶

参数名称（Parameter Name）	参数范围（Parameter Range）	默认取值（Default Value）	参数描述（Parameter Description）	依赖关系（Dependencies）
PduRConfigurationId	0 .. 65535	0	模块PB配置Id号 Module PB Configuration ID Number	当前不支持配置 Configuration is not currently supported
PduRMaxRoutingPathCnt	0 .. 65535	20	模块PB配置支持的最大路由路径数 The maximum number of routing paths supported by the module PB configuration	对配置的路由路径数目进行限制及校验 Restrict and verify the number of configured routing paths
PduRMaxRoutingPathGroupCnt	0 .. 65535	0	模块PB配置支持的最大路由路径组数 The maximum number of routing path groups supported by the module PB configuration	对配置的路径路径组数目进行限制及校验，该数值决定可以新建几个PduRRoutingPathGroup Restrict and verify the number of configured path groups, and this value determines how many PduRRoutingPathGroups can be created

参数名称（Parameter Name）

参数范围（Parameter Range）

默认取值（Default Value）

参数描述（Parameter Description）

依赖关系（Dependencies）

PduRConfigurationId

0 .. 65535

模块PB配置Id号

Module PB Configuration ID Number

当前不支持配置

Configuration is not currently supported

PduRMaxRoutingPathCnt

0 .. 65535

模块PB配置支持的最大路由路径数

The maximum number of routing paths supported by the module PB configuration

对配置的路由路径数目进行限制及校验

Restrict and verify the number of configured routing paths

PduRMaxRoutingPathGroupCnt

0 .. 65535

模块PB配置支持的最大路由路径组数

The maximum number of routing path groups supported by the module PB configuration

对配置的路径路径组数目进行限制及校验，该数值决定可以新建几个PduRRoutingPathGroup

Restrict and verify the number of configured path groups, and this value determines how many PduRRoutingPathGroups can be created

PduRRoutingPathGroup配置（Configuration of PduRRoutingPathGroup）¶

常规参数配置列表（List of General Parameter Configurations）¶

参数名称（Parameter Name）	参数范围（Parameter Range）	默认取值（Default Value）	参数描述（Parameter Description）	依赖关系（Dependencies）
PduRIsEnabledAtInit	TRUE/FALSE	FALSE	初始化之后该RoutingPathGroup是否使能 Whether the RoutingPathGroup is enabled after initialization	无 None
PduRRoutingPathGroupId	0..65535	无 None	表示RoutingPathGroup的Id Represents the ID of the RoutingPathGroup	工具自动填充（从0开始，逐一递增） Automatically populated by the tool (starting from 0 and incrementing one by one)

参数名称（Parameter Name）

参数范围（Parameter Range）

默认取值（Default Value）

参数描述（Parameter Description）

依赖关系（Dependencies）

PduRIsEnabledAtInit

TRUE/FALSE

FALSE

初始化之后该RoutingPathGroup是否使能

Whether the RoutingPathGroup is enabled after initialization

无

None

PduRRoutingPathGroupId

0..65535

无

None

表示RoutingPathGroup的Id

Represents the ID of the RoutingPathGroup

工具自动填充（从0开始，逐一递增）

Automatically populated by the tool (starting from 0 and incrementing one by one)

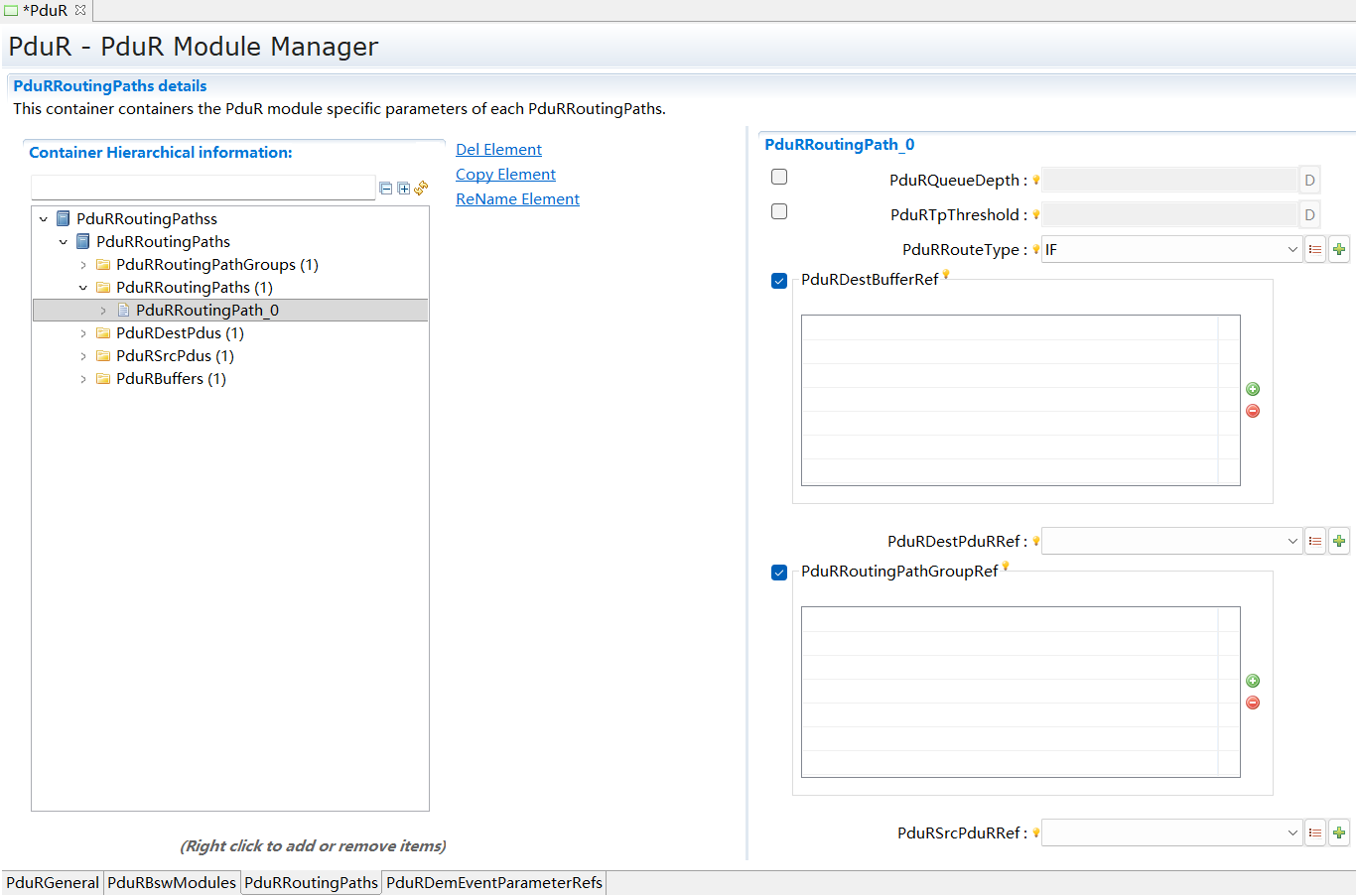

PduRRoutingPath配置（Configuration of PduRRoutingPath）¶

常规参数配置列表（List of General Parameter Configurations）¶

参数名称（Parameter Name）	参数范围（Parameter Range）	默认取值（Default Value）	参数描述（Parameter Description）	依赖关系（Dependencies）
PduRQueueDepth	1 .. 255	无 None	定义此路由路径的缓存的深度 Define the buffer depth of this routing path	取值不能大于定义的所有buffer数目之和；可能需要配置队列的场景：① IF Direct网关可配可不配；② IF TriggerTransmit网关必须配置；③ Tp 网关必须配置；④ Tp Pdu网关同时接收到上层，接收也需要配置PduRBuffer The value cannot be greater than the sum of all defined buffer numbers; Scenarios where a queue may need to be configured: ① IF Direct gateway can be configured or not; ② IF TriggerTransmit gateway must be configured; ③ Tp gateway must be configured; ④ When the Tp Pdu gateway receives data from the upper layer at the same time, PduRBuffer also needs to be configured for reception
PduRTpThreshold	0 .. 65535	无 None	TP Pdu on-the-fly网关时，接收到该配置阈值长度的报文后开始执行转发 For TP Pdu on-the-fly gateway, start forwarding after receiving a message with the length specified by this configured threshold	该配置项只针对TP网关 This configuration item is only for TP gateway
PduRRouteType	IF/TP	IF	I-PDU路由类型选择 Selection of I-PDU routing type	依赖于I-PDU关联的模块对于该路由类型的支持 Depends on the support of the module associated with the I-PDU for this routing type
PduRDestBufferRef	索引[PduRBuffer] Index [PduRBuffer]	无 None	关联PduRBuffer，仅被该PduRRoutingPath关联的PduRBuffer属于该PduRRoutingPath的私有buffer，不会被其它Path申请占用 Associated with PduRBuffer, the PduRBuffer associated only with this PduRRoutingPath belongs to the private buffer of this PduRRoutingPath and will not be applied for and occupied by other Paths	当前Path的PduRQueueDepth 配置且大于 0 The PduRQueueDepth of the current Path is configured and greater than 0
PduRDestPduRRef	索引[PduRDestPdu]	无 None	关联PduRDestPdu配置 Index [PduRDestPdu]	无 None
PduRRoutingPathGroupRef	索引[PduRRoutingPathGroup] Index [PduRRoutingPathGroup]	无 None	关联PduRRoutingPathGroup Associated with PduRRoutingPathGroup	无 None
PduRSrcPduRRef	索引[PduRSrcPdu] Index [PduRSrcPdu]	无 None	关联PduRSrcPdu配置 Associated with PduRSrcPdu configuration	无 None

参数名称（Parameter Name）

参数范围（Parameter Range）

默认取值（Default Value）

参数描述（Parameter Description）

依赖关系（Dependencies）

PduRQueueDepth

1 .. 255

无

None

定义此路由路径的缓存的深度

Define the buffer depth of this routing path

取值不能大于定义的所有buffer数目之和；可能需要配置队列的场景：① IF Direct网关可配可不配；② IF TriggerTransmit网关必须配置；③ Tp 网关必须配置；④ Tp Pdu网关同时接收到上层，接收也需要配置PduRBuffer

The value cannot be greater than the sum of all defined buffer numbers; Scenarios where a queue may need to be configured: ① IF Direct gateway can be configured or not; ② IF TriggerTransmit gateway must be configured; ③ Tp gateway must be configured; ④ When the Tp Pdu gateway receives data from the upper layer at the same time, PduRBuffer also needs to be configured for reception

PduRTpThreshold

0 .. 65535

无

None

TP Pdu on-the-fly网关时，接收到该配置阈值长度的报文后开始执行转发

For TP Pdu on-the-fly gateway, start forwarding after receiving a message with the length specified by this configured threshold

该配置项只针对TP网关

This configuration item is only for TP gateway

PduRRouteType

IF/TP

I-PDU路由类型选择

Selection of I-PDU routing type

依赖于I-PDU关联的模块对于该路由类型的支持

Depends on the support of the module associated with the I-PDU for this routing type

PduRDestBufferRef

索引[PduRBuffer]

Index [PduRBuffer]

无

None

关联PduRBuffer，仅被该PduRRoutingPath关联的PduRBuffer属于该PduRRoutingPath的私有buffer，不会被其它Path申请占用

Associated with PduRBuffer, the PduRBuffer associated only with this PduRRoutingPath belongs to the private buffer of this PduRRoutingPath and will not be applied for and occupied by other Paths

当前Path的PduRQueueDepth 配置且大于 0

The PduRQueueDepth of the current Path is configured and greater than 0

PduRDestPduRRef

索引[PduRDestPdu]

无

None

关联PduRDestPdu配置

Index [PduRDestPdu]

无

None

PduRRoutingPathGroupRef

索引[PduRRoutingPathGroup]

Index [PduRRoutingPathGroup]

无

None

关联PduRRoutingPathGroup

Associated with PduRRoutingPathGroup

无

None

PduRSrcPduRRef

索引[PduRSrcPdu]

Index [PduRSrcPdu]

无

None

关联PduRSrcPdu配置

Associated with PduRSrcPdu configuration

无

None

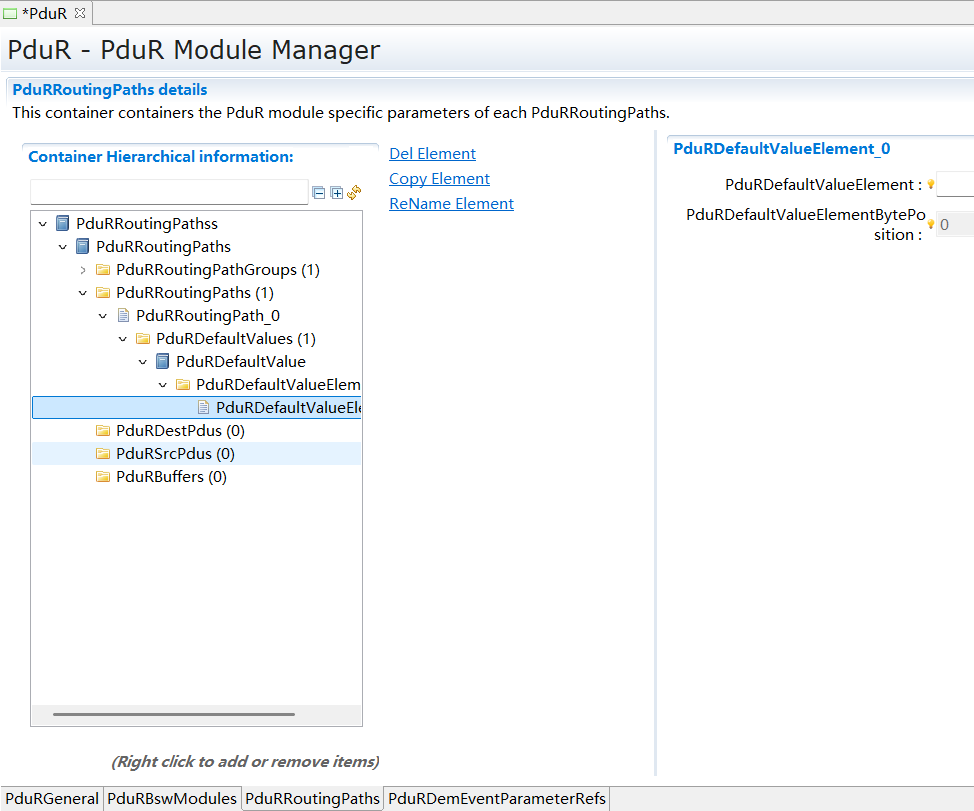

PduRDefaultValueElement配置（Configuration of PduRDefaultValueElement）¶

常规参数配置列表（List of General Parameter Configurations）¶

参数名称（Parameter Name）	参数范围（Parameter Range）	默认取值（Default Value）	参数描述（Parameter Description）	依赖关系（Dependencies）
PduRDefaultValueElement	0 .. 255	无 None	I-PDU对应字节的默认值 Default value of the corresponding byte of I-PDU	IF Pdu通过TriggerTransmit方式网关时才需要配置; 若配置了PduRDefaultValue，其配置的PduRDefaultValueElement字节长度需与ECUC中Pdu的PduLength相等 It only needs to be configured when the IF Pdu is gatewayed through the TriggerTransmit method; if PduRDefaultValue is configured, the byte length of the configured PduRDefaultValueElement must be equal to the PduLength of the Pdu in ECUC
PduRDefaultValueElementBytePosition	0 .. 4294967294(工具自动填充) 0 .. 4294967294 (automatically populated by the tool)	无 None	表示I-PDU字节偏移 Represents the I-PDU byte offset	IF Pdu通过TriggerTransmit方式网关时才需要配置；根据添加PduRDefaultValueElement依次从0自动递增； It only needs to be configured when the IF Pdu is gatewayed through the TriggerTransmit method; it automatically increments from 0 in sequence according to the added PduRDefaultValueElement;

参数名称（Parameter Name）

参数范围（Parameter Range）

默认取值（Default Value）

参数描述（Parameter Description）

依赖关系（Dependencies）

PduRDefaultValueElement

0 .. 255

无

None

I-PDU对应字节的默认值

Default value of the corresponding byte of I-PDU

IF Pdu通过TriggerTransmit方式网关时才需要配置; 若配置了PduRDefaultValue，其配置的PduRDefaultValueElement字节长度需与ECUC中Pdu的PduLength相等

It only needs to be configured when the IF Pdu is gatewayed through the TriggerTransmit method; if PduRDefaultValue is configured, the byte length of the configured PduRDefaultValueElement must be equal to the PduLength of the Pdu in ECUC

PduRDefaultValueElementBytePosition

0 .. 4294967294(工具自动填充)

0 .. 4294967294 (automatically populated by the tool)

无

None

表示I-PDU字节偏移

Represents the I-PDU byte offset

IF Pdu通过TriggerTransmit方式网关时才需要配置；根据添加PduRDefaultValueElement依次从0自动递增；

It only needs to be configured when the IF Pdu is gatewayed through the TriggerTransmit method; it automatically increments from 0 in sequence according to the added PduRDefaultValueElement;

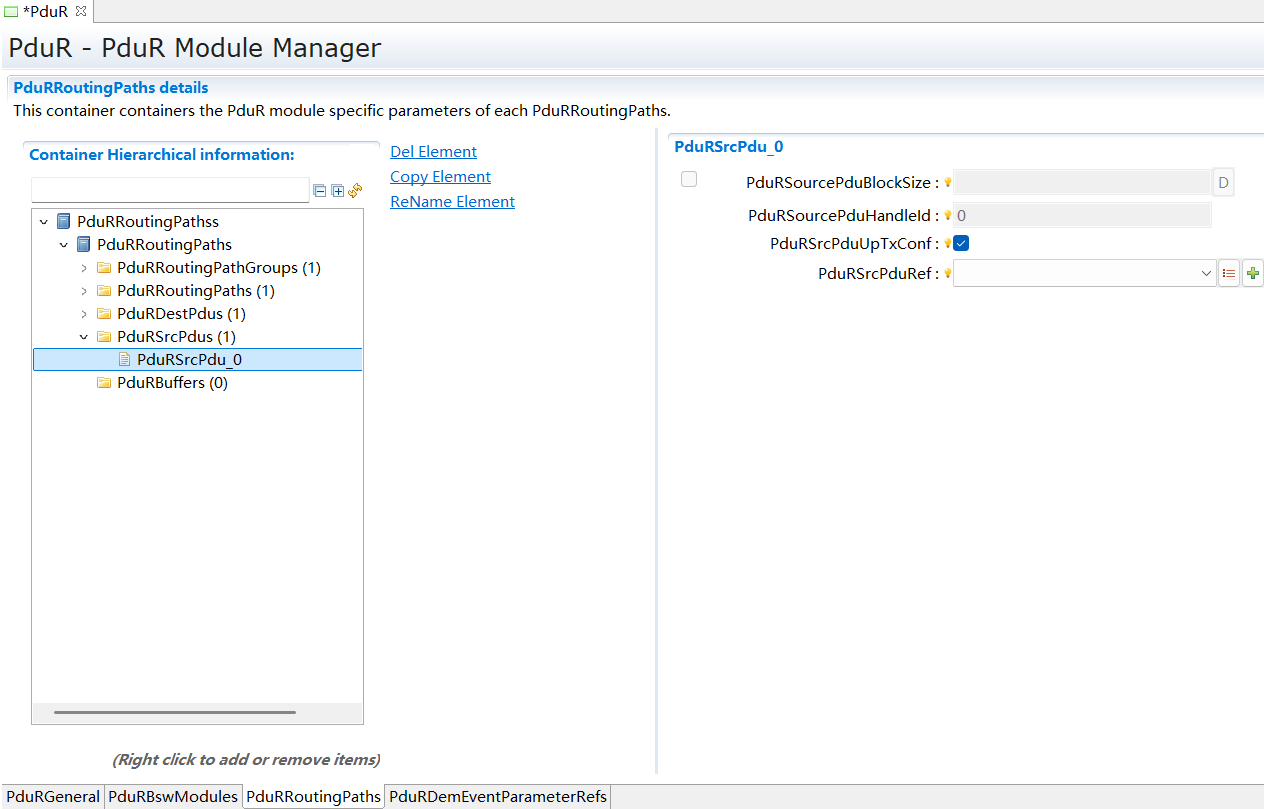

PduRSrcPdu配置（Configuration of PduRSrcPdu）¶

常规参数配置列表（List of General Parameter Configurations）¶

参数名称（Parameter Name）	参数范围（Parameter Range）	默认取值（Default Value）	参数描述（Parameter Description）	依赖关系（Dependencies）
PduRSourcePduBlockSize	1 .. 4294967295	无 None	接收TP继续接收所需的最小缓存 Minimum buffer required for receiving TP to continue receiving	依赖于对应PduRRoutingPath 中PduRRouteType为TP的传输，当前不支持 Depends on the transmission where PduRRouteType in the corresponding PduRRoutingPath is TP, not currently supported
PduRSourcePduHandleId	0..PduIdType	无 None	表示PduR中SrcPdu handle id Represents the SrcPdu handle id in PduR	工具自动填充（从0开始，逐一递增） Automatically populated by the tool (starting from 0 and incrementing one by one)
PduRSrcPduUpTxConf	TRUE/FALSE	TRUE	表示该SrcPdu支持IF发送确认 Indicates that the SrcPdu supports IF transmission confirmation	依赖于该SrcPdu所关联模块对IF TxConfirmation的支持 Depends on the support of IF TxConfirmation by the module associated with the SrcPdu
PduRSrcPduRef	索引[Pdu] Index [Pdu]	无 None	关联EcuC中配置的Pdu Associates the Pdu configured in EcuC	依赖于EcuC中Pdu的配置; Soure Pdu关联的ECUC Pdu需与PduRBswModules中的某一Pdu关联; Pdu关联的ECUC中Pdu的配置项PduLength必须配置；IF路由Pdu不能关联TP Pdu，TP路由的Pdu不能关联IF Pdu Depends on the configuration of Pdu in EcuC; The ECUC Pdu associated with the Source Pdu must be associated with a Pdu in PduRBswModules; The configuration item PduLength of the Pdu in ECUC associated with the Pdu must be configured; IF routing Pdu cannot be associated with TP Pdu, and TP routing Pdu cannot be associated with IF Pdu

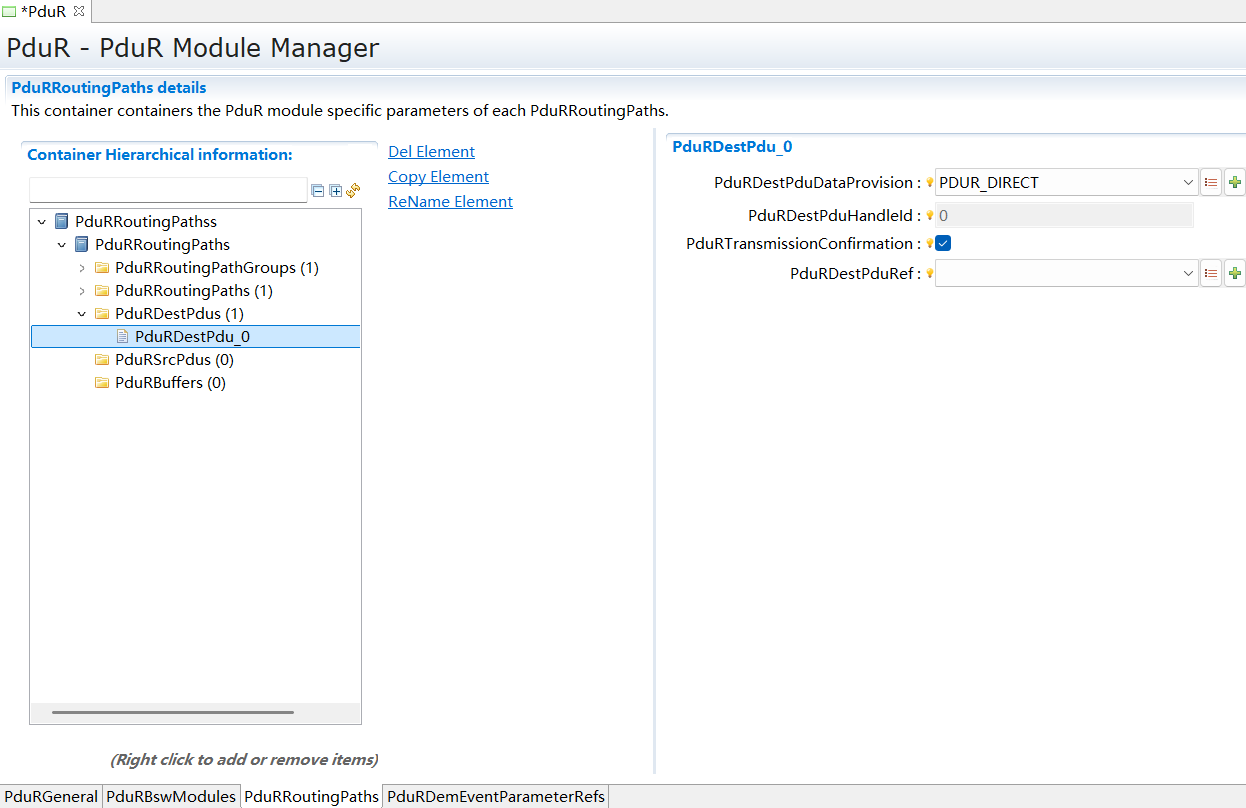

PduRDestPdu配置（Configuration of PduRDestPdu）¶

常规参数配置列表（List of General Parameter Configurations）¶

参数名称（Parameter Name）	参数范围（Parameter Range）	默认取值（Default Value）	参数描述（Parameter Description）	依赖关系（Dependencies）
PduRDestPduDataProvision	PDUR_DIRECT/ PDUR_TRIGGERTRANSMIT	PDUR_DIRECT	IF Pdu网关路由的数据传递方式选择 Selection of data transmission mode for IF Pdu gateway routing	若选择TriggerTransmit方式，对应的PduRRoutingPath必须配置PduRQueueDepth来对网关I-PDU进行队列缓存; PduRDestPduDataProvision配置为PDUR_DIRECT时，对应的PduRRoutingPath不能配置PduRDefaultValueElement If the TriggerTransmit mode is selected, the corresponding PduRRoutingPath must configure PduRQueueDepth to queue and cache the gateway I-PDU; When PduRDestPduDataProvision is configured as PDUR_DIRECT, the corresponding PduRRoutingPath cannot configure PduRDefaultValueElement
PduRDestPduHandleId	0..PduIdType	无 None	表示PduR中DestPdu handle id Represents the DestPdu handle id in PduR	工具自动填充（从0开始，逐一递增） Automatically populated by the tool (starting from 0 and incrementing one by one)
PduRTransmissionConfirmation	TRUE/FALSE	TRUE	对于IF Pdu发送/网关路由是否支持TxConfirmation Whether TxConfirmation is supported for IF Pdu transmission/gateway routing	该配置项只针对IF发送/网关 This configuration item is only for IF transmission/gateway
PduRDestPduRef	索引[Pdu] Index [Pdu]	无 None	关联EcuC中配置的Pdu Associates the Pdu configured in EcuC	依赖于EcuC中Pdu的配置; Dest Pdu关联的ECUC Pdu需与PduRBswModules中的某一Pdu关联; Pdu关联的ECUC中Pdu的配置项PduLength必须配置；IF路由Pdu不能关联TP Pdu，TP路由的Pdu不能关联IF Pdu；TP路由中仅支持配置1个DestPdu Depends on the configuration of Pdu in EcuC; The ECUC Pdu associated with the Dest Pdu must be associated with a Pdu in PduRBswModules; The configuration item PduLength of the Pdu in ECUC associated with the Pdu must be configured; IF routing Pdu cannot be associated with TP Pdu, and TP routing Pdu cannot be associated with IF Pdu; Only one DestPdu can be configured in TP routing

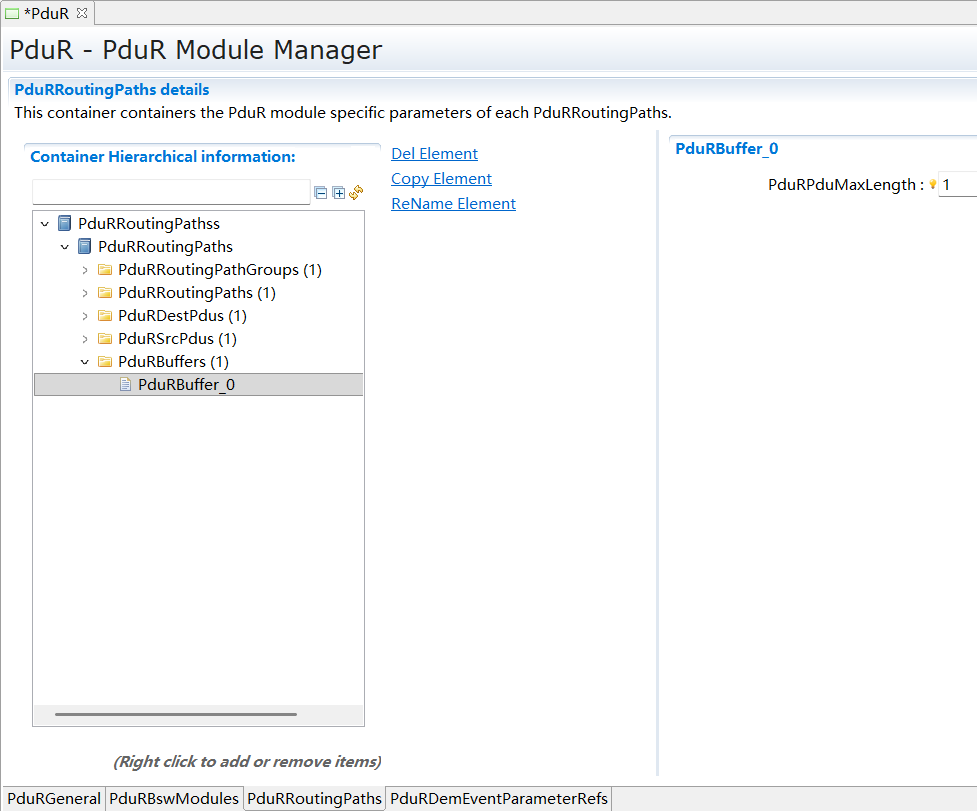

PduRBuffer配置（Configuration of PduRBuffer）¶

常规参数配置列表（List of General Parameter Configurations）¶

参数名称（Parameter Name）	参数范围（Parameter Range）	默认取值（Default Value）	参数描述（Parameter Description）	依赖关系（Dependencies）
PduRPduMaxLength	1 .. 4294967295	1	Buffer的长度 Length of the Buffer	如果被Buffer被PduRDestBufferRef关联，则长度应配置为关联的DestPdu的最大长度（IF Pdu的最大长度/TP Pdu的最大单播长度）；否则根据具体配置中可能使用PduRBuffer的PduRRoutingPath关联的PduR length决定； If the Buffer is associated with PduRDestBufferRef, its length should be configured as the maximum length of the associated DestPdu (maximum length of IF Pdu / maximum unicast length of TP Pdu); otherwise, it is determined by the PduR length associated with the PduRRoutingPath that may use the PduRBuffer in the specific configuration;

参数名称（Parameter Name）

参数范围（Parameter Range）

默认取值（Default Value）

参数描述（Parameter Description）

依赖关系（Dependencies）

PduRPduMaxLength

1 .. 4294967295

Buffer的长度

Length of the Buffer

如果被Buffer被PduRDestBufferRef关联，则长度应配置为关联的DestPdu的最大长度（IF Pdu的最大长度/TP Pdu的最大单播长度）；否则根据具体配置中可能使用PduRBuffer的PduRRoutingPath关联的PduR length决定；

If the Buffer is associated with PduRDestBufferRef, its length should be configured as the maximum length of the associated DestPdu (maximum length of IF Pdu / maximum unicast length of TP Pdu); otherwise, it is determined by the PduR length associated with the PduRRoutingPath that may use the PduRBuffer in the specific configuration;
