文档信息 Document Information

版本历史 Version History

日期(Date)	作者(Author)	版本(Version)	状态(Status)	说明(Description)
2025/02/22	jie.gu	V0.1	发布(Release)	首次发布(First release)
2025/04/04	jie.gu	V1.0	发布(Release)	正式发布(Official release)

参考文档 References

编号(Number)	分类(Classification)	标题(Title)	版本(Version)
1	Autosar	AUTOSAR_CP_SRS_CryptoStack.pdf	R23-11
2	Autosar	AUTOSAR_CP_SWS_CryptoServiceManager.pdf	R23-11

术语与简写 Terms and Abbreviations

术语 Terms

术语(Terms)	解释(Explanation)
Crypto Driver Object	Crypto Driver实现一个或多个Crypto Driver Object。Crypto Driver Object可通过硬件或软件提供不同的crypto primitive。同一Crypto Driver下的各个Crypto Driver Object彼此独立。每个Crypto Driver Object仅拥有一个workspace（即同一时间只能执行一个 crypto primitive）。(Crypto Driver realizes one or more Crypto Driver Objects.) The Crypto Driver Object can provide different crypto primitives via either hardware or software. Each Crypto Driver Object under the same Crypto Driver is independent from each other. Each Crypto Driver Object has one workspace only (i.e. only one crypto primitive can be executed each time).
Key	Key可由Csm中的job进行引用。在Crypto Driver中，该Key指向特定的key type。(Key can be referenced by job in Csm.) In Crypto Driver, this key points to the specific key type.
Key Type	key type由key element构成，且指向这些key element。通常，key type由Crypto Driver的供应商预先配置。(The key type consists of key elements and points to these key elements.) The key type is generally pre-configured by the supplier of the Crypto Driver.
Key Element	Key element用于存储数据。此类数据例如可以是密钥材料（key material），或是AES加密所需的初始向量（IV）；Key element还可用于配置密钥管理功能（key management functions）的行为。不同Key对应的Key element拥有不同的存储区域（包括非易失性存储区NV和随机存取存储区RAM）。(The key element is used for storing data.) This type of data can be key material or the initial vector (IV) required for AES encryption; furthermore, the Key elements can also be used for configuring the behavior of key management functions. The Key elements corresponding to different keys have different storage areas (including non-volatile memory NV and random access memory RAM).
Job	Job是已完成配置的 “CsmJob”。其中，Job会引用key、cryptographic primitive 以及reference channel等要素。(Job refers to the configured ‘CsmJob’.) To be specific, Job will reference elements such as key, cryptographic primitive, and reference channel.
Channel	channel是从Crypto Service Manager队列经Crypto Interface到特定Crypto Driver Object的路径。(Channel is the path from the Crypto Service Manager queue to a specific Crypto Driver Object via the Crypto Interface.)
Primitive	primitive是在Crypto Driver Object中实现的、已配置的加密算法（cryptographic algorithm）的实例。其中，primitive会引用CSM提供给应用的功能、具体的底层 “algorithmfamily”（如 AES、MD5、RSA等）以及 “algorithmmode”（如 ECB、CBC等）。(primitive is an instance of a configured cryptographic algorithm realized in the Crypto Driver Object.) To be specific, primitive will reference the functions provided by CSM for the application, the specific underlying “algorithm family” (such as AES, MD5, RSA, etc.), and “algorithm mod” (such as ECB, CBC, etc.).
Operation	crypto primitive的操作（operation）用于声明应执行该加密原语的哪部分功能。存在三种不同的操作类型：(The operation of crypto primitive is used for declaring the specific part of the function of the encryption primitive that should be executed) There’re three different operation types:
START	Operation表示一个新的crypto primitive请求，它应取消所有先前的请求，执行必要的初始化，并检查该加密原语是否可被处理。(Operation refers to a new crypto primitive request that should cancel all previous requests, perform necessary initialization, and check if the encryption primitive can be processed.)
UPDATE	Operation表示crypto primitive需要输入数据。更新操作（update operation）可提供中间结果。(Operation means that crypto primitive needs data inputting.) The update operation can provide intermediate results.
FINISH	Operation表示，至此所有数据已完全输入，crypto primitive可完成最终计算。完成操作（finish operation）可提供最终结果。(Operation means that all data has been fully inputted, and crypto primitive can complete the final calculation.) The finish operation can provide the final results.
Priority	job的priority定义了其重要程度。priority数值越高，job的执行就越紧急。cryptographic job的priority是配置的一部分。(The priority of job defines its level of importance.) The higher the priority value, the more urgent the job execution. The priority of cryptographic jobs is part of the configuration.
Processing	指示job处理的类型。(It indicates the type of job processing.)
Service	service应按照《TR_Glossary》文档中的定义理解：service是一种operation类型，其接口（interface）和行为（behavior）具有公开的规范（published specification），涉及能力提供者（provider of the capability）与潜在客户端（potential clients）之间的约定（contract）。(Service should be understood according to the definition in the TR_Glossary file: Service refers to an operation type, the interface and behavior of which have published specifications. It involves the contract between providers of the capability and potential clients.)

简写 Abbreviations

简写(Abbreviation)	全称(Full name)	解释(Explanation)
AEAD	Authenticated Encryption with Associated Data	认证加密与关联数据
CDD	Complex Device Driver	复杂设备驱动
CSM	Crypto Service Manager	加密服务管理器
CRYIF	Crypto Interface	加密接口层
CRYPTO	Crypto Driver	加密驱动
DET	Default Error Tracer	默认错误追踪器
HSM	Hardware Security Module	硬件安全模块
HW	Hardware	硬件
SHE	Security Hardware Extension	安全硬件扩展
SW	Software	软件

简介 Introduction

CSM提供了所有的加密服务，包括对称加密、非对称加密、哈希、签名、密钥管理等，为上层应用提供统一的加密接口。

CSM provides all encryption services, including symmetric encryption, asymmetric encryption, hashing, signature, key management, etc. It also provides unified encryption interface for upper layer applications.

功能描述 Functional Description

特性 Features

1.CSM基本功能介绍

1.Introduction to CSM’s basic functions

CSM是一种提供加密功能的服务，它基于一个依赖于软件库或硬件模块的加密驱动程序。此外，混合设置与多个密码驱动程序是可能的。CSM通过CRYIF访问不同的加密驱动程序

CSM is a kind of service that provides encryption function and is based on an encryption driver supported by software libraries or hardware modules. It also supports the settings with multiple password drivers. CSM accesses different encryption drivers through CRYIF

2.job状态

2.job status

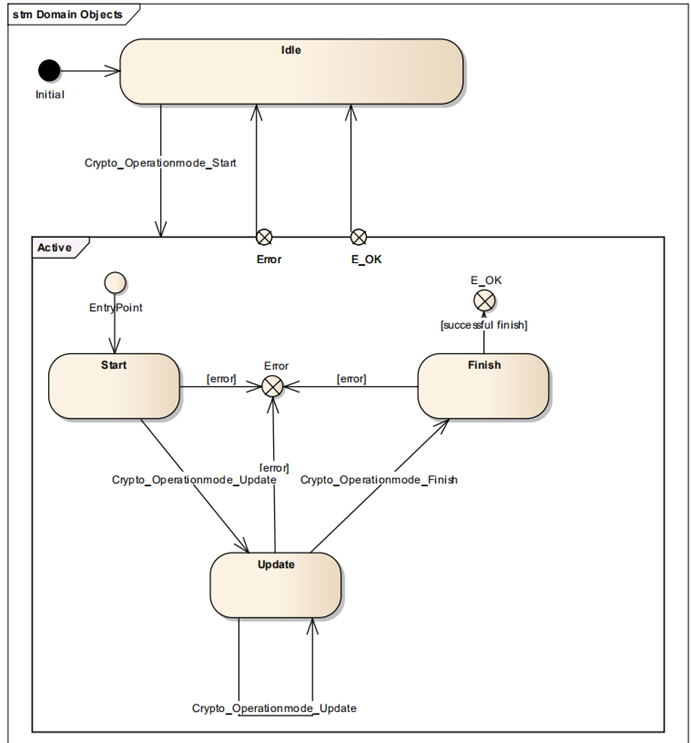

将单一的调用函数与加密Job的流方式相结合，需要模式参数，它决定了加密Job的运行模式。此服务操作是一个标志字段，指示操作模式启动、更新或完成，它显式地声明应该执行什么操作。这些操作模式可以混合使用，并同时执行。状态的实际事务是在与这些状态一起工作的层中进行的，即在加密驱动程序中。

Mode parameter is required for combining a single call function with the flow of encrypted job and it decides the running mode of the encrypted job. This service operation is a mark field, which indicates the start, update or completion of the operation mode. It can also explicitly declare the specific operation required. These operation modes can be mixed and executed simultaneously. The actual transaction of status is carried out in the layer that works with these statuses, i.e., in the encryption driver program.

单调用方法不需要多次调用显式API，只需要调用一次即可。由于单调用的开销小，可以提高性能，所以多用于需要快速处理的小数据输入过程中。当使用流方法(启动、更新、完成)操作时，专用的加密驱动程序对象正在等待进一步的输入(更新)，直到到达完成状态。同时，不能在此加密驱动程序实例上处理其他Job。

A single call method needs calling explicit API for once instead of several times. In consideration of the low expenses and its effect in performance improvement, single call is mostly used in small data input processes that require a fast processing speed. For operation using the stream method (start, update, complete), the dedicated encryption driver object is waiting for further input (update) until it reaches the complete state. Meanwhile, other Jobs cannot be processed on this encrypted driver instance.

3.同步Job

3.Synchronous Job

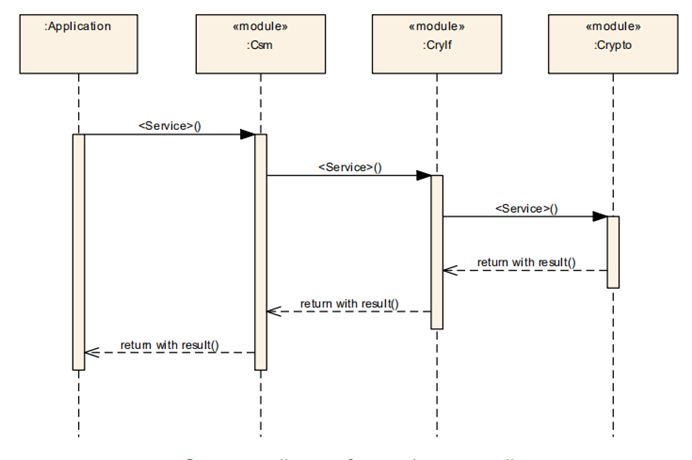

如果使用同步接口，则接口函数将必要的信息传递给底层加密堆栈模块并等待返回结果

If any synchronous interface is used, the interface function transmits the necessary information to the underlying encryption stack module and waits for the results

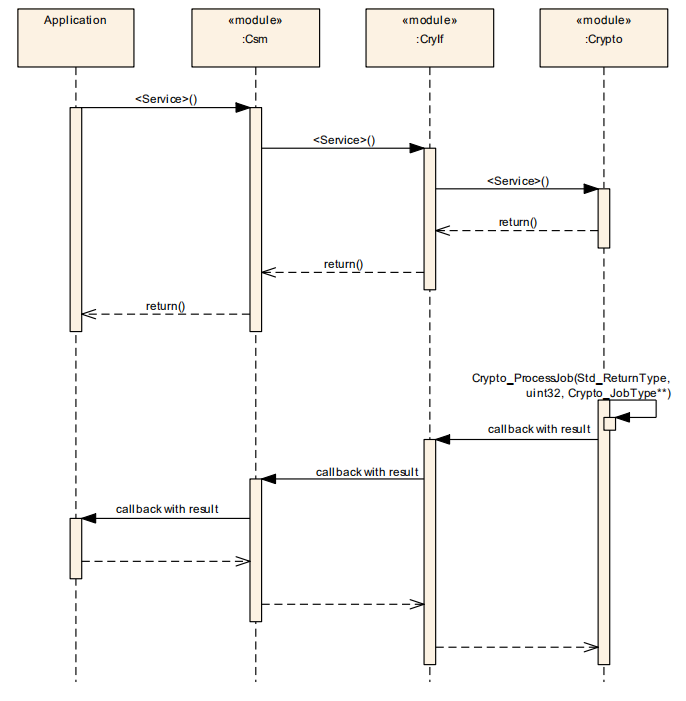

4.异步Job

4.Asynchronous Job

如果使用异步接口，则接口函数只能将必要的信息传递给底层加密堆栈模块，然后等待底层处理完成调用回调函数通知CSM。

If any asynchronous interface is used, the interface function can transmit the necessary information to the underlying encryption stack module only, and then call the callback function and notify CSM after the completion of underlying processing.

5.Queue相关

5.Queue Relation

Quene，即队列，为CSM内部针对Job设置的一个功能，CSM应在内部完成对其的操作。

Quene is a function duly created for Jobs inside CSM, which should complete its operations internally.

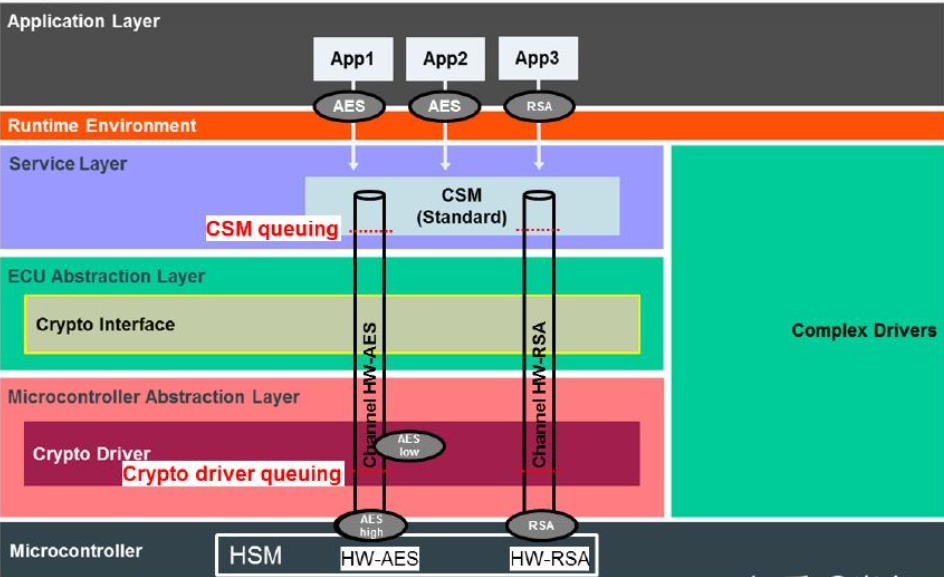

CSM可能有多个队列，其中的Job根据其优先级排列，以处理多个加密请求。从CSM队列通过CryIf到加密驱动程序对象的路径称为通道。CSM的每个队列都映射到一个通道，以访问crypto驱动程序对象的crypto原语。队列的大小是可配置的。为了优化加密驱动程序对象的硬件使用，加密驱动程序中还有一个可选的队列。加密驱动程序对象表示独立加密设备(硬件或软件，如AES加速器)的实例。对于具有高优先级的Job，HSM上可以有一个用于快速AES和CMAC计算的通道，该通道在加密驱动程序中的本地AES计算服务上结束。但同时，加密驱动程序对象也可能是软件，例如用于RSA计算，用户能够加密、解密、签名或验证数据。在同步Job处理中，队列将不起作用。因此，如果选择同步Job处理，则队列大小应该为0。但是，也可以将通道(包括队列)与同步和异步Job一起使用。可以在Csm_MainFunction()中将排队的Job传递给CRYIF。如果Job的状态是活动的，则CSM应假定映射的加密驱动程序实例当前正在处理该Job，而调用者希望继续操作(例如，使用update提供更多数据)，必须在加密驱动程序实例中执行可信性检查。

CSM may have several queues, with jobs arranged according to their priority, in order to process many encrypted requests. The path from the CSM queue to the encrypted driver object through CryIf is called channel. CSM’s each queue is mapped to a channel to access the crypto primitive of the crypto driver object. The size of queue is settable. An optional queue is available in the encryption driver, in order to optimize the hardware use of encryption driver objects. The encryption driver object indicates an instance of an independent encryption device (hardware or software, such as AES accelerator). For Job with a high priority, a channel for fast AES and CMAC calculation is available on HSM and it ends on the local AES calculation service in the encryption driver. At the same time, the encryption driver object may also be software, such as the RSA calculation software. User can realize encryption, decryption, signature and data verification with it. The queue does not work during synchronous Job processing. Therefore, the size of queue should be 0 for synchronous Job processing. However, channel (including queue) can also be used together with synchronous and asynchronous Jobs. The Job of queue can be transferred to CRYIF in Csm_MainFunction(). If the status of Job is active, CSM should assume that the mapped encrypted driver instance is processing the Job. If the caller hopes to continue with operation (e.g. using update to provide more data), creditability check is required in the encrypted driver instance.

6.密钥管理

6.Key management

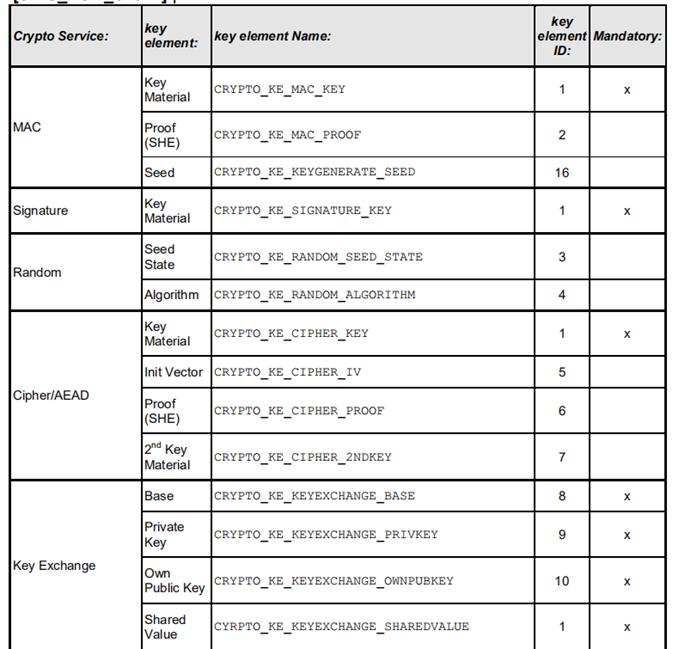

Key，即对应的keyid具有配置给出的符号名称。Crypto堆栈API使用来自CSM模块的以下关键元素索引定义：

Key is the symbol name give by configuration for the corresponding keyid. The Crypto stack API indexes definition by the following key elements from the CSM module:

对于包含加密密钥材料的每个密钥元素，应在用于数据交换的配置中指定所提供密钥的格式，例如Csm_KeyElementGet()或Csm_KeyElementSet()。特定密码驱动程序支持的密钥格式是随密码驱动程序一起提供的预配置信息的一部分。特定于供应商的keyelementid应该启动1000来避免对未来扩展版本的加密堆栈的干扰。关键元素CRYPTO_KE_[…]_ALGORITHM用于配置密钥管理函数的行为，因为它们独立于Job，因此不能像原语那样进行配置。

For each key element containing encrypted key material, the format of the provided key should be specified in the configuration used for data exchange, such as Csm_KeyElementGet() or Csm_KeyElementSet(). The key format supported by specific password driver is part of the pre-configured information provided together with password driver. For supplier’s keyelementid, 1000 should be started to avoid interference with future extended versions of the encryption stack. The key element CRYPTO_KE_[…]_ALGORITHM is used for configuring key management function. It is independent from Job so it cannot be configured like primitives.

偏差 Deviation

1.Csm模块当前不支持秘钥重定向和秘钥派生。

1.The Csm module does not support key redirection and key derivation temporarily.

扩展 Extension

None

集成 Integration

文件列表 File List

CsM组件文件组织结构描述.

Descriptions of CsM component file organization structure

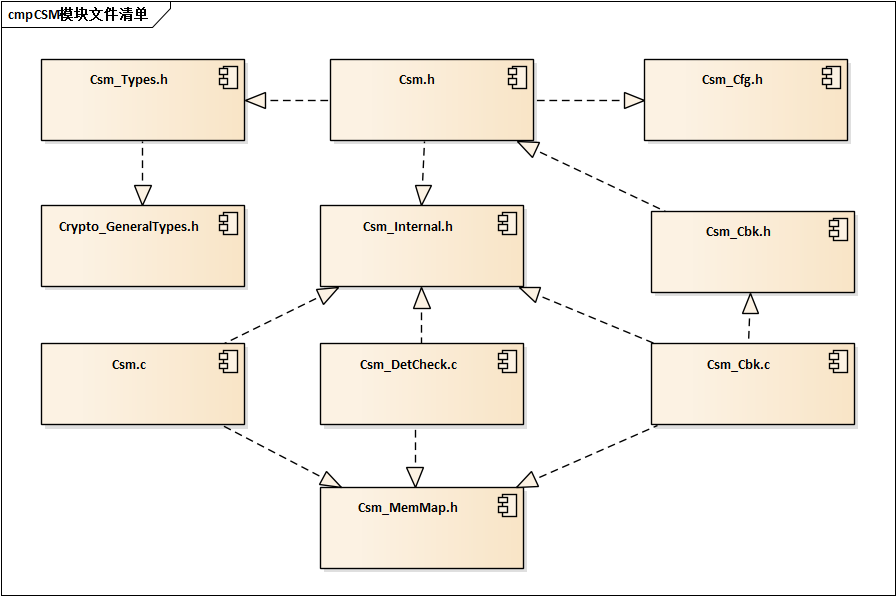

如图 CsM组件文件组织结构描述. 所示，CsM模块的文件引用关系如下：

As shown in the figure CsM组件文件组织结构描述., the file reference relationship of the CsM module is shown as follows:

静态文件 Static Files

None

动态文件 Dynamic Files

文件(File)	描述(Description)
Csm.c	CSM模块源文件，包含了API函数的实现。(The CSM module source file, which contains the realization of API functions.)
Csm.h	CSM模块头文件，包含了API函数的扩展声明并定义了配置的数据结构体。(The CSM module header file contains extension declarations for API functions and defines the structure of configured data.)
Csm_Cbk.h	包含CSM供上层调用的API函数的声明。(Declares the API function that includes CSM for upper layer call.)
Csm_Cbk.c	包含CSM供上层调用的API函数的定义。(Defines the API function that includes CSM for upper layer call.)
Csm_DetCheck.c	定义Csm模块DET检测的API。(Defines the API for DET detection of Csm module .)
Csm_Types.h	包含Csm模块的数据类型。(Type of data containing Csm module.)
Crypto_GeneralTypes.h	Cryptostack通用的数据类型。(Type of general data for Cryptostack.)
Csm_MemMap.h	CSM编译抽象文件。(Abstract files compiled by CSM.)
Csm_Internal.h	包含CSM内部的变量和数据结构体的定义(Definition containing variables and data structures within CSM)

错误处理 Error Handling

开发错误 Development Errors

Error code	Value[hex]	Description
CSM_E_PARAM_POINTER	0x01	API request called with invalid parameter (Nullpointer)
CSM_E_PARAM_HANDLE	0x04	Csm Configuration ID out of range
CSM_E_UNINIT	0x05	API request called before initialization of CSM module
CSM_E_INIT_FAILED	0x07	Initialization of CSM module failed
CSM_E_PROCESSING_MODE	0x08	API request called with invalid processing mode
CSM_E_SERVICE_TYPE	0x09	Mismatch between the called API request and the service type of the job

产品错误 Product Errors

None

运行时错误 Runtime Errors

Error code	Value[hex]	Description
CSM_E_QUEUE_FULL	0x01	Queue overrun

应用程序集成 Application Integration

1.依赖模块

1.Dependency module

配置CsM模块需要保证工程中存在CryptoDriver,CryptoInterface模块，并且配置了CryptoDriver和CryptoInterface模块。

To configure the CsM module, make sure CryptoDriver and CryptoInterface modules are available in the project and have been configured.

通用类型定义 Definition of General Types

Type Name	Type	Description
Crypto_JobPrimitiveInputOutputType	struct Crypto_JobPrimitiveInputOutputType	Structure which contains input and output information depending on the job and the crypto primitive.,ref@01009.
Crypto_AlgorithmInfoType	struct Crypto_AlgorithmInfoType	Structure which determines the exact algorithm.
Crypto_PrimitiveInfoType	struct Crypto_PrimitiveInfoType	Structure which contains basic information about the crypto primitive.
Crypto_JobPrimitiveInfoType	struct Crypto_JobPrimitiveInfoType	Structure which contains further information, which depends on the job and the crypto primitive.
Crypto_JobRedirectionInfoType	struct Crypto_JobRedirectionInfoType	Structure which holds the identifiers of the keys and key elements which shall be used as input and output for a job and a bit structure which indicates which buffers shall be redirected to those key elements.
Crypto_JobType	struct Crypto_JobType	Structure which contains further information, which depends on the job and the crypto primitive.
Crypto_AlgorithmFamilyType	enum	Enumeration of the algorithm family.
Crypto_AlgorithmModeType	enum	Enumeration of the algorithm mode.
Crypto_InputOutputRedirectionConfigType	enum	Defines which of the input/output parameters are re-directed to a key element. The values can be combined to define a bit field.
Crypto_JobStateType	enum	Enumeration of the current job state.
Crypto_ServiceInfoType	enum	Enumeration of the kind of the service.
Crypto_ProcessingType	enum	Enumeration of the processing type.

Callback提供的服务 Services Provided by Callback

Csm_CallbackNotification

void Csm_CallbackNotification(Crypto_JobType *job, Crypto_ResultType result)

the CSM that a job has finished. This function is used by the underlying layer (CRYIF).

Sync/Async

TRUE

Reentrancy

Reentrant

Parameters

Dir	Name	Description
[in]	job	Holds a pointer to the job, which has finished.
[in]	result	Contains the result of the cryptographic operation

Return type

void

外部类型定义 Definition of External Types

Type Name	Type	Description
Csm_ConfigType	uint8	CSM configuration type.

对外提供的服务 Services Provided Externally

Csm_Init

void Csm_Init(const Csm_ConfigType *configPtr)

Initializes the CSM module.

Sync/Async

TRUE

Reentrancy

Reentrant

Parameters

Dir	Name	Description
[in]	configPtr	Pointer to a selected configuration structure

Return type

void

Csm_GetVersionInfo

void Csm_GetVersionInfo(Std_VersionInfoType *versioninfo)

Returns the version information of this module.

Sync/Async

TRUE

Reentrancy

Reentrant.

Parameters

Dir	Name	Description
[out]	versioninfo	Pointer to where to store the version information of this module.

Return type

void

Csm_Hash

Std_ReturnType Csm_Hash(uint32 jobId, Crypto_OperationModeType mode, const uint8 *dataPtr, uint32 dataLength, uint8 *resultPtr, uint32 *resultLengthPtr)

Uses the given data to perform the hash calculation and stores the hash.

Sync/Async

TRUE or FALSE, depending on the job configuration

Reentrancy

Reentrant

Parameters

Dir	Name	Description
[in]	jobId	Holds the identifier of the job using the CSM service.
[in]	mode	Indicates which operation mode(s) to perfom
[in]	dataPtr	Contains the pointer to the data for which the hash shall be computed.
[in]	dataLength	Contains the number of bytes to be hashed.
[out]	resultPtr	Contains the pointer to the data where the hash value shall be stored.
[inout]	resultLengthPtr	Holds a pointer to the memory location in which the output length in bytes is stored. On calling this function, this parameter shall contain the size of the buffer provided by resultPtr. When the request has finished, the actual length of the returned value shall be stored.

Return type

Std_ReturnType

Return values

Name	Description
E_OK	request successful E_NOT_OK: request failed CRYPTO_E_BUSY: request failed, service is still busy CRYPTO_E_SMALL_BUFFER: the provided buffer is too small to store the result.

Csm_MacGenerate

Std_ReturnType Csm_MacGenerate(uint32 jobId, Crypto_OperationModeType mode, const uint8 *dataPtr, uint32 dataLength, uint8 *macPtr, uint32 *macLengthPtr)

Uses the given data to perform a MAC generation and stores the MAC in the memory location pointed to by the MAC pointer.

Sync/Async

Sync or Async, dependend on the job configuration

Reentrancy

Reentrant

Parameters

Dir	Name	Description
[in]	jobId	Holds the identifier of the job using the CSM service.
[in]	mode	Indicates which operation mode(s) to perfom
[in]	dataPtr	Contains the pointer to the data for which the MAC shall be computed.
[in]	dataLength	Contains the number of bytes to be hashed.
[out]	macPtr	Contains the pointer to the data where the MAC shall be stored.
[inout]	macLengthPtr	Holds a pointer to the memory location in which the output length in bytes is stored. On calling this function, this parameter shall contain the size of the buffer provided by macPtr. When the request has finished, the actual length of the returned MAC shall be stored.

Return type

Std_ReturnType

Return values

Name	Description
E_OK	request successful E_NOT_OK: request failed CRYPTO_E_BUSY: request failed, service is still busy CRYPTO_E_KEY_NOT_VALID: request failed, the key’s state is “invalid” CRYPTO_E_SMALL_BUFFER: the provided buffer is too small to store the result. CRYPTO_E_KEY_SIZE_MISMATCH: Request failed, a key element has the wrong size CRYPTO_E_KEY_EMPTY: Request failed because of uninitialized source key element

Csm_MacVerify

Std_ReturnType Csm_MacVerify(uint32 jobId, Crypto_OperationModeType mode, const uint8 *dataPtr, uint32 dataLength, const uint8 *macPtr, uint32 macLength, Crypto_VerifyResultType *verifyPtr)

Verifies the given MAC by comparing if the MAC is generated with the given data.

Sync/Async

Sync or Async, dependend on the job configuration

Reentrancy

Reentrant

Parameters

Dir	Name	Description
[in]	jobId	Holds the identifier of the job using the CSM service.
[in]	mode	Indicates which operation mode(s) to perfom
[in]	dataPtr	Holds a pointer to the data for which the MAC shall be verified
[in]	dataLength	Contains the number of data bytes for which the MAC shall be verified.
[in]	macPtr	Holds a pointer to the MAC to be verified.
[in]	macLength	Contains the MAC length in BITS to be verified
[out]	verifyPtr	Holds a pointer to the memory location, which will hold the result of the MAC verification.

Return type

Std_ReturnType

Return values

Name	Description
E_OK	request successful E_NOT_OK: request failed CRYPTO_E_BUSY: request failed, service is still busy CRYPTO_E_SMALL_BUFFER:The provided buffer is too small to store the result. CRYPTO_E_KEY_NOT_VALID: request failed, the key’s state is “invalid” CRYPTO_E_KEY_SIZE_MISMATCH: Request failed, a key element has the wrong size CRYPTO_E_KEY_EMPTY: Request failed because of uninitialized source key element

Csm_Encrypt

Std_ReturnType Csm_Encrypt(uint32 jobId, Crypto_OperationModeType mode, const uint8 *dataPtr, uint32 dataLength, uint8 *resultPtr, uint32 *resultLengthPtr)

Encrypts the given data and store the ciphertext in the memory location pointed by the result pointer.

Sync/Async

Sync or Async, dependend on the job configuration

Reentrancy

Reentrant

Parameters

Dir	Name	Description
[in]	jobId	Holds the identifier of the job using the CSM service.
[in]	mode	Indicates which operation mode(s) to perfom
[in]	dataPtr	Contains the pointer to the data to be encrypted.
[in]	dataLength	Contains the number of bytes to encrypt.
[out]	resultPtr	Contains the pointer to the data where the encrypted data shall be stored.
[inout]	resultLengthPtr	Holds a pointer to the memory location in which the output length information is stored in bytes. On calling this function, this parameter shall contain the size of the buffer provided by resultPtr. When the request has finished, the actual length of the returned value shall be stored.

Return type

Std_ReturnType

Return values

Name	Description
E_OK	request successful E_NOT_OK: request failed CRYPTO_E_BUSY: request failed, service is still busy CRYPTO_E_KEY_NOT_VALID: request failed, the key’s state is “invalid” CRYPTO_E_SMALL_BUFFER: the provided buffer is too small to store the result. CRYPTO_E_KEY_SIZE_MISMATCH: Request failed, a key element has the wrong size CRYPTO_E_KEY_EMPTY:Request failed because of uninitialized source key element

Csm_Decrypt

Std_ReturnType Csm_Decrypt(uint32 jobId, Crypto_OperationModeType mode, const uint8 *dataPtr, uint32 dataLength, uint8 *resultPtr, uint32 *resultLengthPtr)

Decrypts the given encrypted data and store the decrypted plaintext in the memory location pointed by the result pointer.

Sync/Async

Sync or Async, dependend on the job configuration

Reentrancy

Reentrant

Parameters

Dir	Name	Description
[in]	jobId	Holds the identifier of the job using the CSM service.
[in]	mode	Indicates which operation mode(s) to perfom
[in]	dataPtr	Contains the pointer to the data to be decrypted.
[in]	dataLength	Contains the number of bytes to decrypt.
[out]	resultPtr	Contains the pointer to the data where the decrypted data shall be stored.
[inout]	resultLengthPtr	Holds a pointer to the memory location in which the output length information is stored in bytes. On calling this function, this parameter shall contain the size of the buffer provided by resultPtr. When the request has finished, the actual length of the returned value shall be stored.

Return type

Std_ReturnType

Return values

Name	Description
E_OK	request successful E_NOT_OK: request failed CRYPTO_E_BUSY: request failed, service is still busy CRYPTO_E_KEY_NOT_VALID: request failed, the key’s state is “invalid” CRYPTO_E_SMALL_BUFFER: the provided buffer is too small to store the result. CRYPTO_E_KEY_SIZE_MISMATCH: Request failed, a key element has the wrong size CRYPTO_E_KEY_EMPTY:Request failed because of uninitialized source key element

Csm_AEADEncrypt

Std_ReturnType Csm_AEADEncrypt(uint32 jobId, Crypto_OperationModeType mode, const uint8 *plaintextPtr, uint32 plaintextLength, const uint8 *associatedDataPtr, uint32 associatedDataLength, uint8 *ciphertextPtr, uint32 *ciphertextLengthPtr, uint8 *tagPtr, uint32 *tagLengthPtr)

Uses the given input data to perform a AEAD encryption and stores the ciphertext and the MAC in the memory locations pointed by the ciphertext.

Sync/Async

Sync or Async, dependend on the job configuration

Reentrancy

Reentrant

Parameters

Dir	Name	Description
[in]	jobId	Holds the identifier of the job using the CSM service.
[in]	mode	Indicates which operation mode(s) to perfom
[in]	plaintextPtr	Contains the pointer to the data to be encrypted.
[in]	plaintextLength	Contains the number of bytes to encrypt
[in]	associatedDataPtr	Contains the pointer to the associated data.
[in]	associatedDataLength	Contains the number of bytes of the associated data
[out]	ciphertextPtr	Contains the pointer to the data where the encrypted data shall be stored.
[inout]	ciphertextLengthPtr	Holds a pointer to the memory location in which the output length information is stored in bytes. On calling this function, this parameter shall contain the size of the buffer provided by ciphertextPtr.When the request has finished, the actual length of the returned value shall be stored.
[out]	tagPtr	Contains the pointer to the data where the Tag shall be stored.
[inout]	tagLengthPtr	Holds a pointer to the memory location in which the output length information is stored in bytes. On calling this function, this parameter shall contain the size of the buffer provided by tagPtr. When the request has finished, the actual length of the returned value shall be stored.

Return type

Std_ReturnType

Return values

Name	Description
E_OK	request successful E_NOT_OK: request failed CRYPTO_E_BUSY: request failed, service is still busy CRYPTO_E_SMALL_BUFFER: The provided buffer is too small to store the result CRYPTO_E_KEY_NOT_VALID: request failed, the key’s state is “invalid” CRYPTO_E_KEY_SIZE_MISMATCH: Request failed, a key element has the wrong size CRYPTO_E_KEY_EMPTY: Request failed because of uninitialized source key element

Csm_AEADDecrypt

Std_ReturnType Csm_AEADDecrypt(uint32 jobId, Crypto_OperationModeType mode, const uint8 *ciphertextPtr, uint32 ciphertextLength, const uint8 *associatedDataPtr, uint32 associatedDataLength, const uint8 *tagPtr, uint32 tagLength, uint8 *plaintextPtr, uint32 *plaintextLengthPtr, Crypto_VerifyResultType *verifyPtr)

Uses the given data to perform an AEAD Decryption and stores the ciphertext and the MAC in the memory locations pointed by the ciphertext pointer and.

Sync/Async

Sync or Async, dependend on the job configuration

Reentrancy

Reentrant

Parameters

Dir	Name	Description
[in]	jobId	Holds the identifier of the job using the CSM service.
[in]	mode	Indicates which operation mode(s) to perfom
[in]	ciphertextPtr	Contains the pointer to the data to be decrypted..
[in]	ciphertextLength	Contains the number of bytes to decrypt.
[in]	associatedDataPtr	Contains the pointer to the associated data.
[in]	associatedDataLength	Contains the length in bytes of the associated data
[in]	tagPtr	Contains the pointer to the Tag to be verified.
[in]	tagLength	Contains the length in bytes of the Tag to be verified.
[out]	plaintextPtr	Contains the pointer to the data where the decrypted data shall be stored.
[inout]	plaintextLengthPtr	Holds a pointer to the memory location in which the output length information is stored in bytes. On calling this function, this parameter shall contain the size of the buffer provided by plaintextPtr. When the request has finished, the actual length of the returned value shall be stored.
[out]	verifyPtr	Contains the pointer to the result of the verification.

Return type

Std_ReturnType

Return values

Name	Description
E_OK	request successful E_NOT_OK: request failed CRYPTO_E_BUSY: request failed, service is still busy CRYPTO_E_SMALL_BUFFER: The provided buffer is too small to store the result CRYPTO_E_KEY_NOT_VALID: request failed, the key’s state is “invalid” CRYPTO_E_KEY_SIZE_MISMATCH: Request failed, a key element has the wrong size CRYPTO_E_KEY_EMPTY: Request failed because of uninitialized source key element

Csm_SignatureGenerate

Std_ReturnType Csm_SignatureGenerate(uint32 jobId, Crypto_OperationModeType mode, const uint8 *dataPtr, uint32 dataLength, uint8 *resultPtr, uint32 *resultLengthPtr)

Uses the given data to perform the signature calculation and stores the signature in the memory location pointed by the result pointer.

Sync/Async

Sync or Async, dependend on the job configuration

Reentrancy

Reentrant

Parameters

Dir	Name	Description
[in]	jobId	Holds the identifier of the job using the CSM service.
[in]	mode	Indicates which operation mode(s) to perfom
[in]	dataPtr	Contains the pointer to the data to be signed…
[in]	dataLength	Contains the number of bytes to sign.
[out]	resultPtr	Contains the pointer to the data where the signature shall be stored.
[inout]	resultLengthPtr	Holds a pointer to the memory location in which the output length information is stored in bytes. On calling this function, this parameter shall contain the size of the buffer provided by resultPtr. When the request has finished, the actual length of the returned value shall be stored.

Return type

Std_ReturnType

Return values

Name	Description
E_OK	request successful E_NOT_OK: request failed CRYPTO_E_BUSY: request failed, service is still busy CRYPTO_E_KEY_NOT_VALID: request failed, the key’s state is “invalid” CRYPTO_E_SMALL_BUFFER: the provided buffer is too small to store the result. CRYPTO_E_KEY_SIZE_MISMATCH: Request failed, a key element has the wrong size CRYPTO_E_KEY_EMPTY: Request failed because of uninitialized source key element

Csm_SignatureVerify

Std_ReturnType Csm_SignatureVerify(uint32 jobId, Crypto_OperationModeType mode, const uint8 *dataPtr, uint32 dataLength, const uint8 *signaturePtr, uint32 signatureLength, Crypto_VerifyResultType *verifyPtr)

Verifies the given MAC by comparing if the signature is generated with the given data.

Sync/Async

Sync or Async, dependend on the job configuration

Reentrancy

Reentrant

Parameters

Dir	Name	Description
[in]	jobId	Holds the identifier of the job using the CSM service.
[in]	mode	Indicates which operation mode(s) to perfom
[in]	dataPtr	Contains the pointer to the data to be verified.
[in]	dataLength	Contains the number of data bytes.
[in]	signaturePtr	Holds a pointer to the signature to be verified
[in]	signatureLength	Contains the signature length in bytes.
[out]	verifyPtr	Holds a pointer to the memory location, which will hold the result of the signature verification.

Return type

Std_ReturnType

Return values

Name	Description
E_OK	request successful E_NOT_OK: request failed CRYPTO_E_BUSY: request failed, service is still busy CRYPTO_E_SMALL_BUFFER: the provided buffer is too small to store the result. CRYPTO_E_KEY_NOT_VALID: request failed, the key’s state is “invalid” CRYPTO_E_KEY_SIZE_MISMATCH: Request failed, a key element has the wrong size CRYPTO_E_KEY_EMPTY: Request failed because of uninitialized source key element

Csm_RandomGenerate

Std_ReturnType Csm_RandomGenerate(uint32 jobId, Crypto_OperationModeType mode, uint8* resultPtr, uint32* resultLengthPtr)

Generate a random number and stores it in the memory location pointed by the result pointer.

Sync/Async

Sync or Async, dependend on the job configuration

Reentrancy

Reentrant

Parameters

Dir	Name	Description
[in]	jobId	Holds the identifier of the job using the CSM service.
[out]	resultPtr	Holds a pointer to the memory location which will hold the result of the random number generation.
[inout]	resultLengthPtr	Holds a pointer to the memory location in which the result length in bytes is stored. On calling this function, this parameter shall contain the number of random bytes, which shall be stored to the buffer provided by resultPtr. When the request has finished, the actual length of the returned value shall be stored.

Return type

Std_ReturnType

Return values

Name	Description
E_OK	request successful E_NOT_OK: request failed CRYPTO_E_BUSY: request failed, service is still busy CRYPTO_E_ENTROPY_EXHAUSTED: request failed, entropy of random number generator is exhausted.

Csm_KeyElementSet

Std_ReturnType Csm_KeyElementSet(uint32 keyId, uint32 keyElementId, const uint8 *keyPtr, uint32 keyLength)

Sets the given key element bytes to the key identified by keyId.

Sync/Async

TRUE

Reentrancy

Non Reentrant

Parameters

Dir	Name	Description
[in]	keyId	Holds the identifier of the key for which a new material shall be set.
[in]	keyElementId	Holds the identifier of the key element to be written.
[in]	keyPtr	Holds the pointer to the key element bytes to be processed.
[in]	keyLength	Contains the number of key element bytes.

Return type

Std_ReturnType

Return values

Name	Description
E_OK	request successful E_NOT_OK: request failed CRYPTO_E_BUSY: request failed, service is still busy CRYPTO_E_KEY_WRITE_FAIL:Request failed because write access was denied CRYPTO_E_KEY_NOT_AVAILABLE: Request failed because the key is not available. CRYPTO_E_KEY_SIZE_MISMATCH: Request failed, key element size does not match size of provided data.

Csm_KeySetValid

Std_ReturnType Csm_KeySetValid(uint32 keyId)

Sets the key state of the key identified by keyId to valid.

Sync/Async

TRUE

Reentrancy

Non Reentrant

Parameters

Dir	Name	Description
[in]	keyId	Holds the identifier of the key for which a new material shall be validated.

Return type

Std_ReturnType

Return values

Name	Description
E_OK	request successful E_NOT_OK: request failed CRYPTO_E_BUSY: request failed, service is still busy

Csm_KeySetInvalid

Std_ReturnType Csm_KeySetInvalid(uint32 keyId)

Sets the key state of the key identified by keyId to invalid.

Sync/Async

TRUE

Reentrancy

Non Reentrant

Parameters

Dir	Name	Description
[in]	keyId	Holds the identifier of the key for which a new material shall be invalidated.

Return type

Std_ReturnType

Return values

Name	Description
E_OK	request successful E_NOT_OK: request failed CRYPTO_E_BUSY: request failed, service is still busy

Csm_KeyElementGet

Std_ReturnType Csm_KeyElementGet(uint32 keyId, uint32 keyElementId, uint8 *keyPtr, uint32 *keyLengthPtr)

Retrieves the key element bytes from a specific key element of the key identified by the keyId and stores the key element in the memory location pointed by the key pointer.

Sync/Async

TRUE

Reentrancy

Reentrant

Parameters

Dir	Name	Description
[in]	keyId	Holds the identifier of the key from which a key element shall be extracted.
[in]	keyElementId	Holds the identifier of the key element to be extracted
[out]	keyPtr	Holds the pointer to the memory location where the key shall be copied to.
[inout]	keyLengthPtr	Holds a pointer to the memory location in which the output buffer length in bytes is stored. On calling this function, this parameter shall contain the buffer length in bytes of the keyPtr. When the request has finished, the actual size of the written input bytes shall be stored.

Return type

Std_ReturnType

Return values

Name

Description

E_OK

request successful E_NOT_OK: request failed CRYPTO_E_BUSY: request failed, service is still busy CRYPTO_E_KEY_NOT_AVAILABLE: request failed, the requested key element is not available CRYPTO_E_KEY_READ_FAIL: Request failed because read access was denied CRYPTO_E_SMALL_BUFFER: the provided buffer is too small to store the result. CRYPTO_E_KEY_EMPTY:Request failed because of uninitialized source key element

Csm_KeyElementCopy

Std_ReturnType Csm_KeyElementCopy(const uint32 keyId, const uint32 keyElementId, const uint32 targetKeyId, const uint32 targetKeyElementId)

This function shall copy a key elements from one key to a target key.

Sync/Async

TRUE

Reentrancy

Reentrant, but not for the same keyId

Parameters

Dir	Name	Description
[in]	keyId	Holds the identifier of the key whose key element shall be the source element.
[in]	keyElementId	Holds the identifier of the key element which shall be the source for the copy operation.
[in]	targetKeyId	Holds the identifier of the key whose key element shall be the destination element.
[in]	targetKeyElementId	Holds the identifier of the key element which shall be the destination for the copy operation. Parameters(INOUT): NA Parameters(OUT): NA Return value: E_OK: request successful E_NOT_OK: request failed CRYPTO_E_BUSY: request failed, service is still busy CRYPTO_E_KEY_NOT_AVAILABLE: request failed, the requested key element is not available CRYPTO_E_KEY_READ_FAIL: Request failed because read access was denied CRYPTO_E_KEY_WRITE_FAIL: Request failed, not allowed to write key element. CRYPTO_E_KEY_SIZE_MISMATCH: Request failed, key element sizes are not compatible. CRYPTO_E_KEY_EMPTY:Request failed because of uninitialized source key element.

Return type

Std_ReturnType

Csm_KeyCopy

Std_ReturnType Csm_KeyCopy(const uint32 keyId, const uint32 targetKeyId)

This function shall copy all key elements from the source key to a target key.

Sync/Async

TRUE

Reentrancy

Reentrant, but not for the same keyId

Parameters

Dir	Name	Description
[in]	keyId	Holds the identifier of the key whose key element shall be the source element.
[in]	targetKeyId	Holds the identifier of the key whose key element shall be the destination element.

Return type

Std_ReturnType

Return values

Name

Description

E_OK

request successful E_NOT_OK: request failed CRYPTO_E_BUSY: request failed, service is still busy CRYPTO_E_KEY_NOT_AVAILABLE: request failed, the requested key element is not available CRYPTO_E_KEY_READ_FAIL: Request failed because read access was denied CRYPTO_E_KEY_WRITE_FAIL: Request failed, not allowed to write key element. CRYPTO_E_KEY_SIZE_MISMATCH: Request failed, key element sizes are not compatible. CRYPTO_E_KEY_EMPTY:Request failed because of uninitialized source key element.

Csm_KeyElementCopyPartial

Std_ReturnType Csm_KeyElementCopyPartial(uint32 keyId, uint32 keyElementId, uint32 keyElementSourceOffset, uint32 keyElementTargetOffset, uint32 keyElementCopyLength, uint32 targetKeyId, uint32 targetKeyElementId)

Copies a key element to another key element in the same crypto driver. The keyElementSourceOffset and keyElementCopyLength allows to copy just a part of the source key element into the destination. The offset into the target key is also specified with this function.

Sync/Async

TRUE

Reentrancy

Reentrant, but not for the same keyId

Parameters

Dir	Name	Description
[in]	keyId	Holds the identifier of the key whose key element shall be the source element for copy operation.
[in]	keyElementId	Holds the identifier of the key element which shall be the source for the copy operation..
[in]	keyElementSourceOffset	This is the offset of the source key element indicating the start index of the copy operation..
[in]	keyElementTargetOffset	This is the offset of the destination key element indicating the start index of the copy operation.
[in]	keyElementCopyLength	Specifies the number of bytes that shall be copied.
[in]	targetKeyId	target Key Id.
[in]	targetKeyElementId	Holds the identifier of the key element which shall be the destination for the copy operation.

Return type

Std_ReturnType

Return values

Name

Description

E_OK

request successful E_NOT_OK: request failed CRYPTO_E_BUSY: request failed, service is still busy CRYPTO_E_KEY_NOT_AVAILABLE: request failed, the requested key element is not available CRYPTO_E_KEY_READ_FAIL: Request failed because read access was denied CRYPTO_E_KEY_WRITE_FAIL: Request failed, not allowed to write key element. CRYPTO_E_KEY_SIZE_MISMATCH: Request failed, key element sizes are not compatible. CRYPTO_E_KEY_EMPTY:Request failed because of uninitialized source key element.

Csm_RandomSeed

Std_ReturnType Csm_RandomSeed(uint32 keyId, const uint8 *seedPtr, uint32 seedLength)

Feeds the key element CRYPTO_KE_RANDOM_SEED with a random seed.

Sync/Async

TRUE

Reentrancy

Reentrant, but not for the same keyId

Parameters

Dir	Name	Description
[in]	keyId	Holds the identifier of the key for which a new seed shall be generated.
[in]	seedPtr	Holds a pointer to the memory location which contains the data to feed the seed.
[in]	seedLength	Contains the length of the seed in bytes.

Return type

Std_ReturnType

Return values

Name	Description
E_OK	request successful E_NOT_OK: request failed CRYPTO_E_BUSY: Request failed, service is still busy CRYPTO_E_KEY_NOT_VALID: Request failed, the key’s state is “invalid”.

Csm_KeyGenerate

Std_ReturnType Csm_KeyGenerate(uint32 keyId)

Generates new key material and store it in the key identified by keyId.

Sync/Async

TRUE

Reentrancy

Reentrant, but not for the same keyId

Parameters

Dir	Name	Description
[in]	keyId	Holds the identifier of the key for which a new material shall be generated.

Return type

Std_ReturnType

Return values

Name	Description
E_OK	request successful E_NOT_OK: request failed CRYPTO_E_BUSY: Request failed, service is still busy CRYPTO_E_KEY_NOT_VALID: Request failed, the key’s state is “invalid”. CRYPTO_E_KEY_EMPTY: Request failed because of uninitialized source key element

Csm_KeyDerive

Std_ReturnType Csm_KeyDerive(uint32 keyId, uint32 targetKeyId)

Derives a new key by using the key elements in the given key identified by the keyId. The given key contains the key elements for the password and salt. The derived key is stored in the key element with the id 1 of the key identified by targetCryptoKeyId.

Sync/Async

TRUE

Reentrancy

Reentrant, but not for the same keyId

Parameters

Dir	Name	Description
[in]	keyId	Holds the identifier of the key which is used for key derivation.
[in]	targetKeyId	Holds the identifier of the key which is used to store the derived key.

Return type

Std_ReturnType

Return values

Name

Description

E_OK

request successful E_NOT_OK: request failed CRYPTO_E_BUSY: request failed, service is still busy CRYPTO_E_KEY_READ_FAIL: Request failed because read access was denied CRYPTO_E_KEY_WRITE_FAIL: Request failed, not allowed to write key element. CRYPTO_E_KEY_NOT_VALID: Request failed, the key’s state is “invalid”. CRYPTO_E_KEY_SIZE_MISMATCH: Request failed, key element sizes are not compatible. CRYPTO_E_KEY_EMPTY:Request failed because of uninitialized source key element.

Csm_KeyExchangeCalcPubVal

Std_ReturnType Csm_KeyExchangeCalcPubVal(uint32 keyId, uint8 *publicValuePtr, uint32 *publicValueLengthPtr)

Calculates the public value of the current user for the key exchange and stores the public key in the memory location pointed by the public value pointer.

Sync/Async

TRUE

Reentrancy

Reentrant, but not for the same keyId

Parameters

Dir	Name	Description
[in]	keyId	Holds the identifier of the key which shall be used for the key exchange protocol.
[out]	publicValuePtr	Contains the pointer to the data where the public value shall be stored.
[inout]	publicValueLengthPtr	Holds a pointer to the memory location in which the public value length information is stored. On calling this function, this parameter shall contain the size of the buffer provided by publicValuePtr. When the request has finished, the actual length of the returned value shall be stored.

Return type

Std_ReturnType

Return values

Name	Description
E_OK	request successful E_NOT_OK: request failed CRYPTO_E_BUSY: request failed, service is still busy CRYPTO_E_SMALL_BUFFER: The provided buffer is too small to store the result CRYPTO_E_KEY_NOT_VALID: Request failed, the key’s state is “invalid”. CRYPTO_E_KEY_EMPTY:Request failed because of uninitialized source key element.

Csm_KeyExchangeCalcSecret

Std_ReturnType Csm_KeyExchangeCalcSecret(uint32 keyId, const uint8 *partnerPublicValuePtr, uint32 partnerPublicValueLength)

Calculates the shared secret key for the key exchange with the key material of the key identified by the keyId and the partner public key. The shared secret key is stored as a key element in the same key.

Sync/Async

TRUE

Reentrancy

Reentrant, but not for the same keyId

Parameters

Dir	Name	Description
[in]	keyId	Holds the identifier of the key which shall be used for the key exchange protocol.
[in]	partnerPublicValuePtr	Holds the pointer to the memory location which contains the partner’s public value.
[in]	partnerPublicValueLength	Contains the length of the partner’s public value in bytes.

Return type

Std_ReturnType

Return values

Name	Description
E_OK	request successful E_NOT_OK: request failed CRYPTO_E_BUSY: request failed, service is still busy CRYPTO_E_SMALL_BUFFER: The provided buffer is too small to store the result CRYPTO_E_KEY_NOT_VALID: Request failed, the key’s state is “invalid”. CRYPTO_E_KEY_EMPTY:Request failed because of uninitialized source key element.

Csm_JobKeySetValid

Std_ReturnType Csm_JobKeySetValid(uint32 jobId)

Stores the key if necessary and sets the key state of the key identified by keyId to valid.

Sync/Async

TRUE or FALSE, depending on the job configuration

Reentrancy

Reentrant

Parameters

Dir	Name	Description
[in]	jobId	Holds the identifier of the key for which a new material shall be validated.

Return type

Std_ReturnType

Return values

Name	Description
E_OK	request successful E_NOT_OK: request failed CRYPTO_E_BUSY: Request failed, service is still busy

Csm_JobKeySetInValid

Std_ReturnType Csm_JobKeySetInValid(uint32 jobId)

Stores the key if necessary and sets the key state of the key identified by keyId to invalid.

Sync/Async

TRUE or FALSE, depending on the job configuration

Reentrancy

Reentrant

Parameters

Dir	Name	Description
[in]	jobId	Holds the identifier of the key for which a new material shall be invalidated.

Return type

Std_ReturnType

Return values

Name	Description
E_OK	request successful E_NOT_OK: request failed CRYPTO_E_BUSY: Request failed, service is still busy

Csm_JobRandomSeed

Std_ReturnType Csm_JobRandomSeed(uint32 jobId, uint32 keyId, const uint8 *seedPtr, uint32 seedLength)

This function shall dispatch the random seed function to the configured crypto driver object.

Sync/Async

TRUE or FALSE, depending on the job configuration

Reentrancy

Reentrant

Parameters

Dir	Name	Description
[in]	jobId	Holds the identifier of the job using the CSM service.
[in]	keyId	Holds the identifier of the key for which a new seed shall be generated.
[in]	seedPtr	Holds a pointer to the memory location which contains the data to feed the seed..
[in]	seedLength	Contains the length of the seed in bytes.

Return type

Std_ReturnType

Return values

Name	Description
E_OK	request successful E_NOT_OK: request failed CRYPTO_E_BUSY: Request failed, service is still busy CRYPTO_E_KEY_NOT_VALID: Request failed, the key’s state is “invalid”

Csm_JobKeyGenerate

Std_ReturnType Csm_JobKeyGenerate(uint32 jobId, uint32 keyId)

Generates new key material and stores it in the key identified by keyId.

Sync/Async

TRUE or FALSE, depending on the job configuration

Reentrancy

Reentrant

Parameters

Dir	Name	Description
[in]	jobId	Holds the identifier of the job using the CSM service.
[in]	keyId	Holds the identifier of the key for which a new material shall be generated.

Return type

Std_ReturnType

Return values

Name	Description
E_OK	request successful E_NOT_OK: request failed CRYPTO_E_BUSY: Request failed, service is still busy CRYPTO_E_KEY_NOT_VALID: Request failed, the key’s state is “invalid” CRYPTO_E_KEY_EMPTY: Request failed because of uninitialized source key element

Csm_JobKeyDerive

Std_ReturnType Csm_JobKeyDerive(uint32 jobId, uint32 keyId, uint32 targetKeyId)

Derives a new key by using the key elements in the given key identified by the keyId. The given key contains the key elements for the password and salt. The derived key is stored in the key element with the id 1 of the key identified by targetCryptoKeyId.

Sync/Async

TRUE or FALSE, depending on the job configuration

Reentrancy

Reentrant

Parameters

Dir	Name	Description
[in]	jobId	Holds the identifier of the job using the CSM service.
[in]	keyId	Holds the identifier of the key which is used for key derivation.
[in]	targetKeyId	Holds the identifier of the key which is used to store the derived key.

Return type

Std_ReturnType

Return values

Name

Description

E_OK

request successful E_NOT_OK: request failed CRYPTO_E_BUSY: Request failed, service is still busy CRYPTO_E_KEY_READ_FAIL: Request failed, not allowed to extract key element CRYPTO_E_KEY_WRITE_FAIL: Request failed, not allowed to write key element CRYPTO_E_KEY_NOT_VALID: Request failed, the key’s state is “invalid” CRYPTO_E_KEY_SIZE_MISMATCH: Request failed, key element sizes are not compatible CRYPTO_E_KEY_EMPTY: Request failed because of uninitialized source key element

Csm_JobKeyExchangeCalcPubVal

Std_ReturnType Csm_JobKeyExchangeCalcPubVal(uint32 jobId, uint32 keyId, uint8 *publicValuePtr, uint32 *publicValueLengthPtr)

Calculates the public value of the current user for the key exchange and stores the public key in the memory location pointed by the public value pointer.

Sync/Async

TRUE or FALSE, depending on the job configuration

Reentrancy

Reentrant

Parameters

Dir	Name	Description
[in]	jobId	Holds the identifier of the job using the CSM service.
[in]	keyId	Holds the identifier of the key which shall be used for the key exchange protocol.
[in]	publicValuePtr	Contains the pointer to the data where the public value shall be stored.
[out]	publicValueLengthPtr	Holds a pointer to the memory location in which the public value length information is stored.

Return type

Std_ReturnType

Return values

Name	Description
E_OK	request successful E_NOT_OK: request failed CRYPTO_E_BUSY: Request failed, service is still busy CRYPTO_E_SMALL_BUFFER: The provided buffer is too small to store the result CRYPTO_E_KEY_NOT_VALID: Request failed, the key’s state is “invalid” CRYPTO_E_KEY_EMPTY: Request failed because of uninitialized source key element

Csm_JobKeyExchangeCalcSecret

Std_ReturnType Csm_JobKeyExchangeCalcSecret(uint32 jobId, uint32 keyId, const uint8 *partnerPublicValuePtr, uint32 partnerPublicValueLength)

Calculates the shared secret key for the key exchange with the key material of the key identified by the keyId and the partner public key. The shared secret key is stored as a key element in the same key.

Sync/Async

TRUE or FALSE, depending on the job configuration

Reentrancy

Reentrant

Parameters

Dir	Name	Description
[in]	jobId	Holds the identifier of the job using the CSM service.
[in]	keyId	Holds the identifier of the key which shall be used for the key exchange protocol.
[in]	partnerPublicValuePtr	Holds the pointer to the memory location which contains the partner’s public value.
[in]	partnerPublicValueLength	Contains the length of the partner’s public value in bytes.

Return type

Std_ReturnType

Return values

Name	Description
E_OK	request successful E_NOT_OK: request failed E_BUSY:Request failed, Crypto Driver Object is busy CRYPTO_E_SMALL_BUFFER: The provided buffer is too small to store the result CRYPTO_E_BUSY: Request failed, service is still busy CRYPTO_E_KEY_NOT_VALID: Request failed, the key’s state is “invalid”. CRYPTO_E_KEY_EMPTY:Request failed because of uninitialized source key element.

Csm_CancelJob

Std_ReturnType Csm_CancelJob(uint32 job, Crypto_OperationModeType mode)

Cancels the job processing from asynchronous or streaming jobs.

Sync/Async

TRUE

Reentrancy

Non Reentrant

Parameters

Dir	Name	Description
[in]	job	Holds the identifier of the job to be canceled
[in]	mode	Not used, just for interface compatibility provided.

Return type

Std_ReturnType

Return values

Name	Description
E_OK	Request successful. Job removed from any queue and potentially from crypto driver hardware. E_NOT_OK: Request failed CRYPTO_E_JOB_CANCELED: Immediate cancelation not possible.The cancelation will be done at next suitable processing step and notified via a negative finish callback.

Csm_KeyGetStatus

Std_ReturnType Csm_KeyGetStatus(uint32 keyId, Crypto_KeyStatusType *keyStatusPtr)

Retrieves the status of a key in the CSM module.

Sync/Async

TRUE

Reentrancy

Non Reentrant

Parameters

Dir	Name	Description
[in]	keyId	Identifier of the key.
[out]	keyStatusPtr	Pointer to the variable where the key status will be stored.

Return type

Std_ReturnType

Return values

Name	Description
E_OK	Operation successful.
E_NOT_OK	Operation failed.

Csm_CustomService

Std_ReturnType Csm_CustomService(uint32 jobId, Crypto_OperationModeType mode, uint32 targetKeyId, const uint8 *inputPtr, uint32 inputLength, const uint8 *secondaryInputPtr, uint32 secondaryInputLength, const uint8 *tertiaryInputPtr, uint32 tertiaryInputLength, uint8 *outputPtr, uint32 *outputLengthPtr, uint8 *secondaryOutputPtr, uint32 *secondaryOutputLengthPtr, Crypto_VerifyResultType *verifyPtr)

Custom service operation for the CSM module.

Sync/Async

Depends on configuration

Reentrancy

Reentrant for different jobId

Parameters

Dir	Name	Description
[in]	jobId	Identifier of the job.
[in]	mode	Operation mode (e.g., encryption, decryption, signing, verification).
[in]	targetKeyId	Identifier of the target key.
[in]	inputPtr	Pointer to the primary input data.
[in]	inputLength	Length of the primary input data.
[in]	secondaryInputPtr	Pointer to the secondary input data.
[in]	secondaryInputLength	Length of the secondary input data.
[in]	tertiaryInputPtr	Pointer to the tertiary input data.
[in]	tertiaryInputLength	Length of the tertiary input data.
[out]	outputPtr	Pointer to the output data.
[out]	outputLengthPtr	Pointer to the length of the output data.
[out]	secondaryOutputPtr	Pointer to the secondary output data.
[out]	secondaryOutputLengthPtr	Pointer to the length of the secondary output data.
[out]	verifyPtr	Pointer to the verification result.

Return type

Std_ReturnType

Return values

Name	Description
E_OK	Operation successful.
E_NOT_OK	Operation failed.

Csm_CustomSync

Std_ReturnType Csm_CustomSync(uint32 dispatchId, uint32 keyId, uint32 keyElementId, uint32 targetKeyId, uint32 targetKeyElementId, const uint8 *inputPtr, uint32 inputLength, uint8 *outputPtr, uint32 *outputLengthPtr, uint8 *secondaryOutputPtr, uint32 *secondaryOutputLengthPtr)

Custom synchronous operation for the CSM module.

Sync/Async

TRUE

Reentrancy

Non Reentrant

Parameters

Dir	Name	Description
[in]	dispatchId	Dispatch ID for the operation.
[in]	keyId	Identifier of the source key.
[in]	keyElementId	Identifier of the source key element.
[in]	targetKeyId	Identifier of the target key.
[in]	targetKeyElementId	Identifier of the target key element.
[in]	inputPtr	Pointer to the input data.
[in]	inputLength	Length of the input data.
[out]	outputPtr	Pointer to the output data.
[out]	outputLengthPtr	Pointer to the length of the output data.
[out]	secondaryOutputPtr	Pointer to the secondary output data.
[out]	secondaryOutputLengthPtr	Pointer to the length of the secondary output data.

Return type

Std_ReturnType

Return values

Name	Description
E_OK	Operation successful.
E_NOT_OK	Operation failed.

Csm_SaveContextJob

Std_ReturnType Csm_SaveContextJob(uint32 jobId, uint8 *contextBufferPtr, uint32 *contextBufferLengthPtr)

Saves the context of a job in the CSM module.

Sync/Async

Depends on configuration

Reentrancy

Reentrant

Parameters

Dir	Name	Description
[in]	jobId	Identifier of the job.
[out]	contextBufferPtr	Pointer to the buffer where the context data will be stored.
[out]	contextBufferLengthPtr	Pointer to the variable where the length of the context data will be stored.

Return type

Std_ReturnType

Return values

Name	Description
E_OK	Operation successful.
E_NOT_OK	Operation failed.

Csm_RestoreContextJob

Std_ReturnType Csm_RestoreContextJob(uint32 jobId, const uint8 *contextBufferPtr, uint32 contextBufferLength)

Restores the context of a job in the CSM module.

Sync/Async

Depends on configuration

Reentrancy

Reentrant This function restores the context of a specified job in the CSM module. It takes the job ID, a pointer to the context buffer, and the length of the context buffer. The function reads the context data from the provided buffer and restores it for the job.

Parameters

Dir	Name	Description
[in]	jobId	Identifier of the job.
[in]	contextBufferPtr	Pointer to the buffer containing the context data.
[in]	contextBufferLength	Length of the context data in the buffer.

Return type

Std_ReturnType

Return values

Name	Description
E_OK	Operation successful.
E_NOT_OK	Operation failed.

内部类型定义 Definition of Internal Types

Type Name	Type	Description
Csm_CallbackFuncType	void*	Type definition for callback function pointer.
Csm_JobInQueueType	struct Csm_JobInQueueType	Run-time configuration type definitions.
Csm_JobInQueuePtrType	struct Csm_JobInQueueType	type definition for the pointer of the job in queue
Csm_QueueChStatusType	struct Csm_QueueChStatusType	Type definition for the runtime status of a channel.
Csm_JobCbkCfgType	struct Csm_JobCbkCfgType	Type definition for job notification callback configuration.

对内提供的服务 Services Provided Internally

Csm_ReportDetErr

static void Csm_ReportDetErr(uint8 serviceId, uint8 error)

Reports a development error to the DET (Development Error Tracer).

Sync/Async

TRUE

Reentrancy

Not reentrant

Parameters

Dir	Name	Description
[in]	serviceId	Identifier of the service that detected the error.
[in]	error	Error code of the detected error.

Return type

void

Csm_ChkInitParam

boolean Csm_ChkInitParam(const Csm_ConfigType *configPtr)

Checks the initialization parameters for the CSM module.

Sync/Async

TRUE

Reentrancy

Reentrant but not for the same timer instance

Parameters

Dir	Name	Description
[in]	configPtr	Pointer to the configuration structure containing initialization parameters.

Return type

boolean

Csm_ChkGetVersionInfo

Std_ReturnType Csm_ChkGetVersionInfo(const Std_VersionInfoType *versioninfo, uint8 sid)

Checks the parameters for the Csm_GetVersionInfo function.

Sync/Async

TRUE

Reentrancy

Reentrant but not for the same timer instance

Parameters

Dir	Name	Description
[in]	versioninfo	Pointer to the version information structure.
[in]	sid	Service ID for which the version information is requested.

Return type

Std_ReturnType

Csm_ChkServiceParam

Std_ReturnType Csm_ChkServiceParam(uint32 jobId, uint8 sid)

Checks the parameters for the Csm_Servicexxx function.

Sync/Async

TRUE

Reentrancy

Reentrant but not for the same timer instance

Parameters

Dir	Name	Description
[in]	jobId	Job identifier.
[in]	sid	Service ID.

Return type

Std_ReturnType

Csm_ChkKeyEleSetParam

Std_ReturnType Csm_ChkKeyEleSetParam(uint32 keyId, const uint8 *keyPtr, uint32 keyLength, uint8 sid)

Checks the parameters for the CryIf_KeyElementSet function.

Sync/Async

TRUE

Reentrancy

Reentrant but not for the same timer instance

Parameters

Dir	Name	Description
[in]	keyId	Key identifier.
[in]	keyPtr	Pointer to the key data.
[in]	keyLength	Length of the key data.
[in]	sid	Service ID.

Return type

Std_ReturnType

Csm_ChkKeySetValid

Std_ReturnType Csm_ChkKeySetValid(uint32 keyId, uint8 sid)

Checks the parameters for the Csm_KeySetValid function.

Sync/Async

TRUE

Reentrancy

Reentrant but not for the same timer instance

Parameters

Dir	Name	Description
[in]	keyId	Key identifier.
[in]	sid	Service ID.

Return type

Std_ReturnType

Csm_ChkKeySetInValid

Std_ReturnType Csm_ChkKeySetInValid(uint32 keyId, uint8 sid)

Checks the parameters for the Csm_KeySetInValid function.

Sync/Async

TRUE

Reentrancy

Reentrant but not for the same timer instance

Parameters

Dir	Name	Description
[in]	keyId	Key identifier.
[in]	sid	Service ID.

Return type

Std_ReturnType

Csm_ChkKeyEleGet

Std_ReturnType Csm_ChkKeyEleGet(uint32 keyId, const uint8 *keyPtr, const uint32 *keyLengthPtr, uint8 sid)

Checks the parameters for the Csm_KeyElementGet function.

Sync/Async

TRUE

Reentrancy

Reentrant but not for the same timer instance

Parameters

Dir	Name	Description
[in]	keyId	Key identifier.
[out]	keyPtr	Pointer to the buffer where the key data will be stored.
[out]	keyLengthPtr	Pointer to the variable where the length of the key data will be stored.
[in]	sid	Service ID.

Return type

Std_ReturnType

Csm_ChkKeyEleCopy

Std_ReturnType Csm_ChkKeyEleCopy(const uint32 keyId, const uint32 targetKeyId, uint8 sid)

Checks the parameters for the Csm_KeyElementCopy function.

Sync/Async

TRUE

Reentrancy

Reentrant but not for the same timer instance

Parameters

Dir	Name	Description
[in]	keyId	Source key identifier.
[in]	targetKeyId	tKeyId Target key identifier.
[in]	sid	Service ID.

Return type

Std_ReturnType

Csm_ChkKeyCopy

Std_ReturnType Csm_ChkKeyCopy(const uint32 keyId, const uint32 targetKeyId, uint8 sid)

Checks the parameters for the Csm_KeyCopy function.

Sync/Async

TRUE

Reentrancy

Reentrant but not for the same timer instance

Parameters

Dir	Name	Description
[in]	keyId	Source key identifier.
[in]	targetKeyId	Target key identifier.
[in]	sid	Service ID.

Return type

Std_ReturnType

Csm_ChkKeyEleCopyPart

Std_ReturnType Csm_ChkKeyEleCopyPart(uint32 keyId, uint32 targetKeyId, uint8 sid)

Checks the parameters for the Csm_KeyElementCopyPartial function.

Sync/Async

TRUE

Reentrancy

Reentrant but not for the same timer instance

Parameters

Dir	Name	Description
[in]	keyId	Source key identifier.
[in]	targetKeyId	Target key identifier.
[in]	sid	Service ID.

Return type

Std_ReturnType

Csm_ChkRandomSeed

Std_ReturnType Csm_ChkRandomSeed(uint32 keyId, const uint8 *seedPtr, uint32 seedLength, uint8 sid)

Checks the parameters for the Csm_RandomSeed function.

Sync/Async

TRUE

Reentrancy

Reentrant but not for the same timer instance

Parameters

Dir	Name	Description
[in]	keyId	Key identifier.
[in]	seedPtr	Pointer to the random seed data.
[in]	seedLength	Length of the random seed data.
[in]	sid	Service ID.

Return type

Std_ReturnType

Csm_ChkKeyGenerate

Std_ReturnType Csm_ChkKeyGenerate(uint32 keyId, uint8 sid)

Checks the parameters for the Csm_KeyGenerate function.

Sync/Async

TRUE

Reentrancy

Reentrant but not for the same timer instance

Parameters

Dir	Name	Description
[in]	keyId	Key identifier.
[in]	sid	Service ID.

Return type

Std_ReturnType

Csm_ChkKeyDerive

Std_ReturnType Csm_ChkKeyDerive(uint32 keyId, uint32 targetKeyId, uint8 sid)

Checks the parameters for the Csm_KeyDerive function.

Sync/Async

TRUE

Reentrancy

Reentrant but not for the same timer instance

Parameters

Dir	Name	Description
[in]	keyId	Source key identifier.
[in]	targetKeyId	Target key identifier.
[in]	sid	Service ID.

Return type

Std_ReturnType

Csm_ChkExCalcPubVal

Std_ReturnType Csm_ChkExCalcPubVal(uint32 keyId, const uint8 *publicValuePtr, const uint32 *publicValueLengthPtr, uint8 sid)

Checks the parameters for the Csm_KeyExchangeCalcPubVal function.

Sync/Async

TRUE

Reentrancy

Reentrant but not for the same timer instance

Parameters

Dir	Name	Description
[in]	keyId	Key identifier.
[out]	publicValuePtr	Pointer to the buffer where the public value will be stored.
[out]	publicValueLengthPtr	Pointer to the variable where the length of the public value will be stored.
[in]	sid	Service ID.

Return type

Std_ReturnType

Csm_ChkExCalcSecVal

Std_ReturnType Csm_ChkExCalcSecVal(uint32 keyId, const uint8 *partnerPublicValuePtr, uint32 partnerPublicValueLength, uint8 sid)

Checks the parameters for the Csm_KeyExchangeCalcSecret function.

Sync/Async

TRUE

Reentrancy

Reentrant but not for the same timer instance

Parameters

Dir	Name	Description
[in]	keyId	Key identifier.
[in]	partnerPublicValuePtr	Pointer to the partner’s public value data.
[in]	partnerPublicValueLength	Length of the partner’s public value data.
[in]	sid	Service ID.

Return type

Std_ReturnType

Csm_ChkJobKeySetValid

Std_ReturnType Csm_ChkJobKeySetValid(uint32 jobId, uint8 sid)

Checks the parameters for the Csm_JobKeySetValid function.

Sync/Async

TRUE

Reentrancy

Reentrant but not for the same timer instance

Parameters

Dir	Name	Description
[in]	jobId	Job identifier.
[in]	sid	Service ID.

Return type

Std_ReturnType

Csm_ChkJobKeySetInValid

Std_ReturnType Csm_ChkJobKeySetInValid(uint32 jobId, uint8 sid)

Checks the parameters for the Csm_JobKeySetInValid function.

Sync/Async

TRUE

Reentrancy

Reentrant but not for the same timer instance

Parameters

Dir	Name	Description
[in]	jobId	Job identifier.
[in]	sid	Service ID.

Return type

Std_ReturnType

Csm_ChkJobRandomSeed

Std_ReturnType Csm_ChkJobRandomSeed(uint32 jobId, uint32 keyId, const uint8 *seedPtr, uint32 seedLength, uint8 sid)

Checks the parameters for the Csm_JobRandomSeed function.

Sync/Async

TRUE

Reentrancy

Reentrant but not for the same timer instance

Parameters

Dir	Name	Description
[in]	jobId	Job identifier.
[in]	keyId	Key identifier.
[in]	seedPtr	Pointer to the random seed data.
[in]	seedLength	Length of the random seed data.
[in]	sid	Service ID.

Return type

Std_ReturnType

Csm_ChkJobKeyGenerate

Std_ReturnType Csm_ChkJobKeyGenerate(uint32 jobId, uint32 keyId, uint8 sid)

Checks the parameters for the Csm_JobKeyGenerate function.

Sync/Async

TRUE

Reentrancy

Reentrant but not for the same timer instance

Parameters

Dir	Name	Description
[in]	jobId	Job identifier.
[in]	keyId	Key identifier.
[in]	sid	Service ID.

Return type

Std_ReturnType

Csm_ChkJobKeyDerive

Std_ReturnType Csm_ChkJobKeyDerive(uint32 jobId, uint32 keyId, uint32 targetKeyId, uint8 sid)

Checks the parameters for the Csm_JobKeyDerive function.

Sync/Async

TRUE

Reentrancy

Reentrant but not for the same timer instance

Parameters

Dir	Name	Description
[in]	jobId	Job identifier.
[in]	keyId	Source key identifier.
[in]	targetKeyId	Target key identifier.
[in]	sid	Service ID.

Return type

Std_ReturnType

Csm_ChkJobExCalcPubVal

Std_ReturnType Csm_ChkJobExCalcPubVal(uint32 jobId, uint32 keyId, const uint8 *publicValuePtr, const uint32 *publicValueLengthPtr, uint8 sid)

Checks the parameters for the Csm_JobKeyExchangeCalcPubVal function.

Sync/Async

TRUE

Reentrancy

Reentrant but not for the same timer instance

Parameters

Dir	Name	Description
[in]	jobId	Job identifier.
[in]	keyId	Key identifier.
[out]	publicValuePtr	Pointer to the buffer where the public value will be stored.
[out]	publicValueLengthPtr	Pointer to the variable where the length of the public value will be stored.
[in]	sid	Service ID.

Return type

Std_ReturnType

Csm_ChkJobExCalcSec

Std_ReturnType Csm_ChkJobExCalcSec(uint32 jobId, uint32 keyId, const uint8 *partnerPublicValuePtr, uint32 partnerPublicValueLength, uint8 sid)

Checks the parameters for the Csm_JobKeyExchangeCalcSecret function.

Sync/Async

TRUE

Reentrancy

Reentrant but not for the same timer instance

Parameters

Dir	Name	Description
[in]	jobId	Job identifier.
[in]	keyId	Key identifier.
[in]	partnerPublicValuePtr	Pointer to the partner’s public value data.
[in]	partnerPublicValueLength	Length of the partner’s public value data.
[in]	sid	Service ID.

Return type

Std_ReturnType

Csm_ChkCancelJob

Std_ReturnType Csm_ChkCancelJob(uint32 jobId, uint8 sid)

Checks the parameters for the Csm_CancelJob function.

Sync/Async

TRUE

Reentrancy

Reentrant but not for the same timer instance

Parameters

Dir	Name	Description
[in]	jobId	Job identifier.
[in]	sid	Service ID.

Return type

Std_ReturnType

Csm_ChkCbkNotify

Std_ReturnType Csm_ChkCbkNotify(const Crypto_JobType *job, uint8 sid)

Checks the parameters for the Csm_CbkNotify function.

Sync/Async

TRUE

Reentrancy

Reentrant but not for the same timer instance

Parameters

Dir	Name	Description
[in]	job	Pointer to the job structure.
[in]	sid	Service ID.

Return type

Std_ReturnType

内部类型定义 Definition of Internal Types

Type Name	Type	Description
Csm_JobsCfgType	struct Csm_JobsCfgType	Jobs PC-config type.
Csm_KeyCfgType	struct Csm_KeyCfgType	configuration of a CSM key
Csm_QueueCfgType	struct Csm_QueueCfgType	CSM queue configurations.

配置 Configuration

自定义引用头文件配置 Configuration of Self-defined Reference Header File

用于解决编译时需要依赖外部模块所设计的配置项。

Configuration item designed based on external modules for compiling.

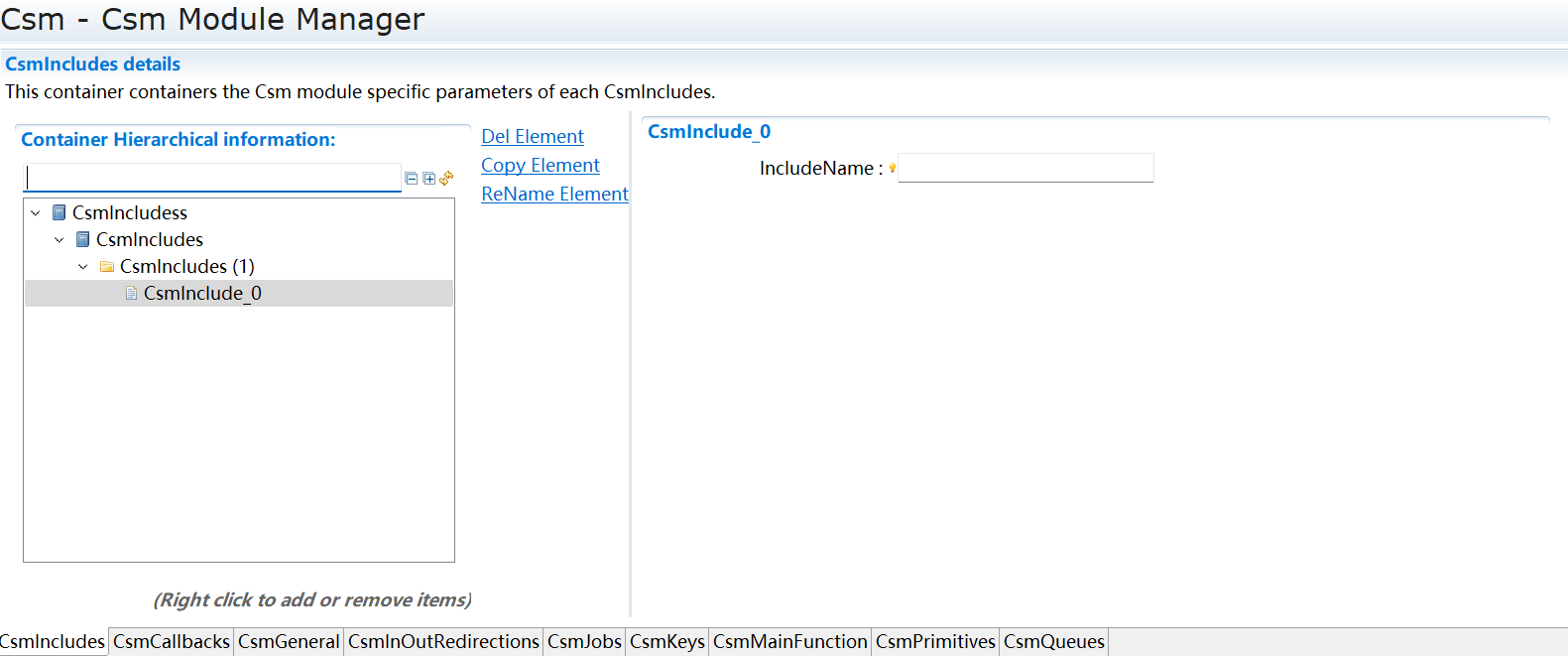

fig_CsmIncludes

UI名称（UI name）	描述（Desription）
IncludeName	取值范围（Value range）	无（None）	默认取值	无（None）
	参数描述（Parameter description）	用户包含外部头文件，主要包含CallCallBack函数的声明文件（The user contains external header files, mainly including the declaration file of CallCallBack function）
		无（None）
	依赖关系（Dependence）	无（None）

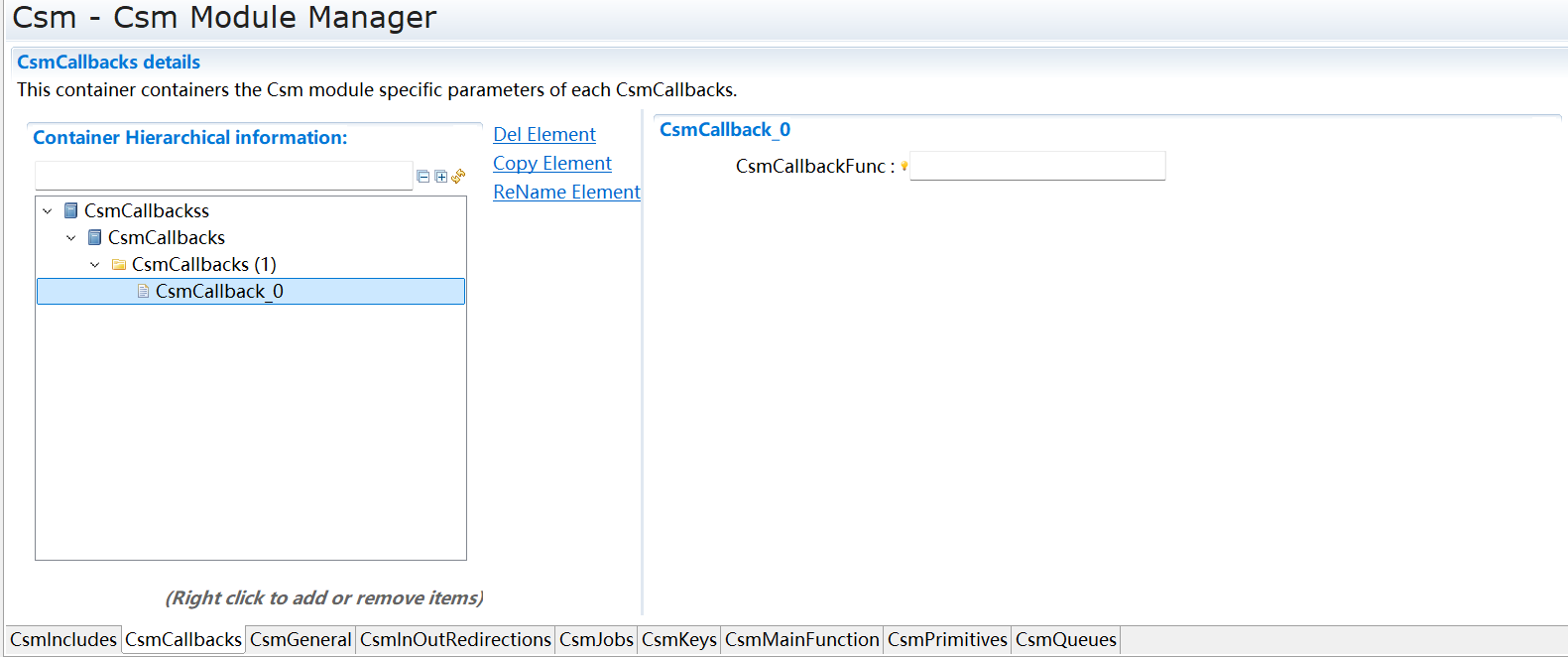

异步任务回调函数配置 Configuration of Asynchronous Task Callback Function

配置异步任务时需要配置回调函数来返回结果，同步任务不需要配置和关联。

To configure asynchronous tasks, configure callback function to return results; configuration and linking are not required for synchronous task.

fig_CsmCallbacks

UI名称（UI name）	描述（Desription）
CsmCallbackFunc	取值范围（Value range）	string	默认取值	无（None）
	参数描述（Parameter description）	用户配置于异步任务的回调函数（Callback function configured by user for asynchronous task）
		无（None）
	依赖关系（Dependence）	无（None）

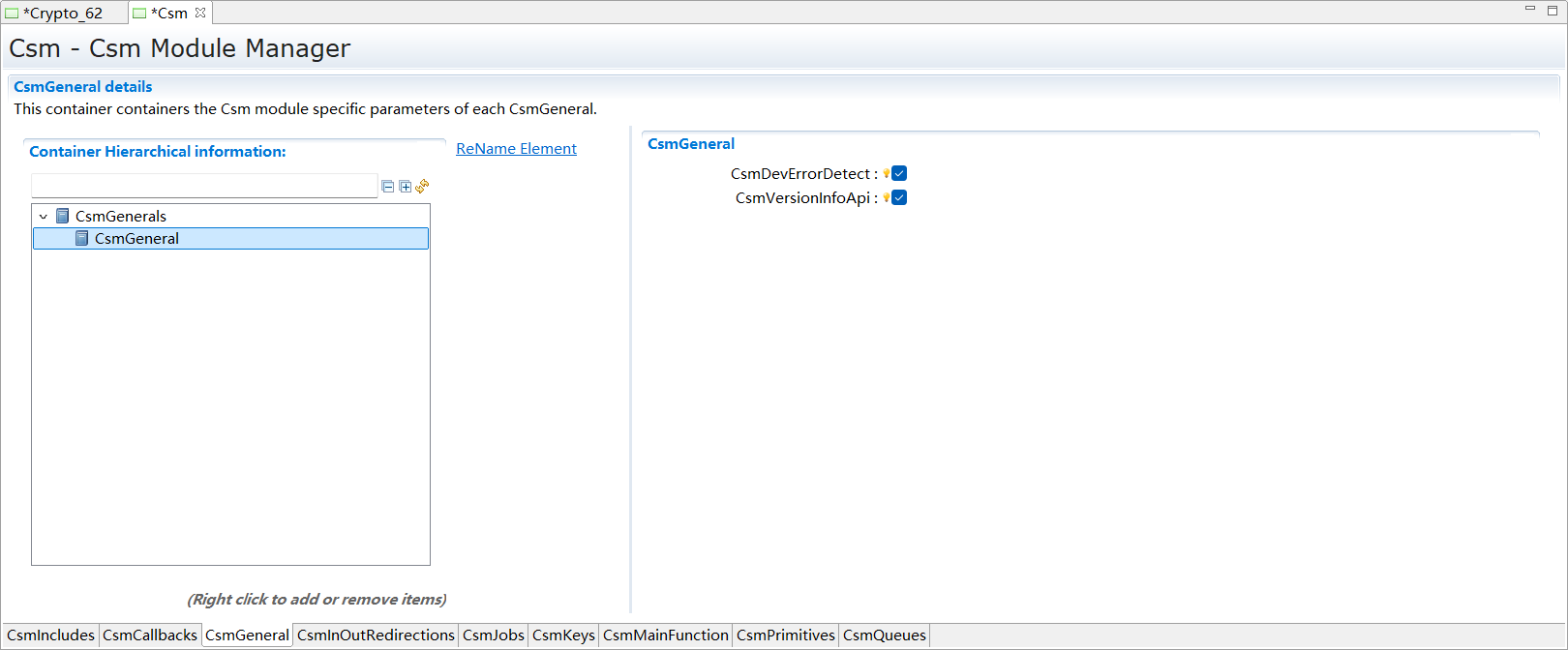

通用配置 General Configurations

按照自己需要是否开启这部分配置，默认不打开。

Decide whether to enable this configuration according to the specific needs; disabled by default.

fig_CsmGeneral

UI名称（UI name）	描述（Desription）
CsmDevErrorDetect	参数描述（Parameter description）	打开或关闭开发错误检测和通知（Enable or disable development error detection and notifications）
		true：启用检测和通知。（true: Enable detection and notification.）
		false：禁用检测和通知（false: Disable detection and notification）
	依赖关系（Dependence）	无（None）
CsmVersionInfoApi	取值范围（Value range）	TRUE/FALSE	默认取值	FALSE
	参数描述（Parameter description）	切换以启用和禁用Csm_GetVersionInfo
		True：API Csm_GetVersionInfo()是可用的。（True:API Csm_GetVersionInfo() is available.）
		False：Csm_GetVersionInfo()不可用。（False: Csm_GetVersionInfo() is unavailable.）
	依赖关系（Dependence）	无（None）

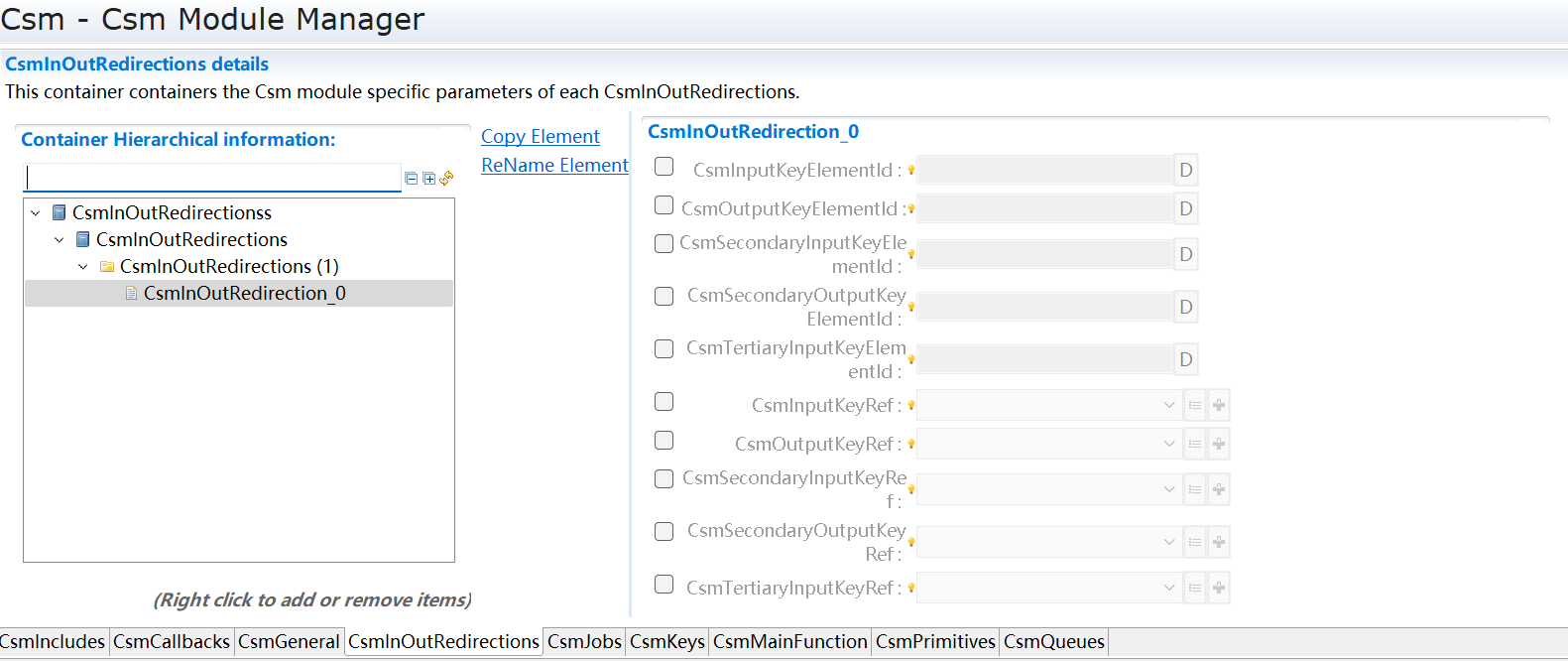

重定向配置 Redirect Configuration

此部分配置暂时没有开发对应的源码功能。

The corresponding source code function has not been developed for this part of configuration temporarily.

fig_CsmInOutRedirection

UI 名称（UI name）	描述（Description）
CsmInputKeyElementId	取值范围（Value range）	0 .. 4294967295	默认取值（Default value）	无（None）
	参数描述（Parameter description）	用作输入的键元素的标识符(Identifier of the key element used as input)
	依赖关系（Dependence）	无(None)
CsmOutputKeyElementId	取值范围（Value range）	0 .. 4294967295	默认取值（Default value）	无（None）
	参数描述（Parameter description）	用作输出的键元素的标识符(Identifier of the key element used as output)
	依赖关系（Dependence）	无(None)
CsmSecondaryInputKeyElementId	取值范围（Value range）	0 .. 4294967295	默认取值（Default value）	无（None）
	参数描述（Parameter description）	用作辅助输入的键元素的标识符(Identifier of the key element used as auxiliary input)
	依赖关系（Dependence）	无(None)
CsmSecondaryOutputKeyElementId	取值范围（Value range）	0 .. 4294967295	默认取值（Default value）	无（None）
	参数描述（Parameter description）	用作输出的键元素的标识符(Identifier of the key element used as output)
	依赖关系（Dependence）	无(None)
CsmTertiaryInputKeyElementId	取值范围（Value range）	0 .. 4294967295	默认取值（Default value）	无（None）
	参数描述（Parameter description）	用作第三级输入的关键元素的标识符(Identifier of the key element used as tertiary input)
	依赖关系（Dependence）	无(None)
CsmInputKeyRef	取值范围（Value range）	无（None）	默认取值（Default value）	无（None）
	参数描述（Parameter description）	这个参数指的是用作输入的key(This parameter refers to the key used as input)
	依赖关系（Dependence）	CsmKey
CsmOutputKeyRef	取值范围（Value range）	无（None）	默认取值（Default value）	无（None）
	参数描述（Parameter description）	此参数引用用作输出的键(This parameter refers to the key referenced as output)
	依赖关系（Dependence）	CsmKey
CsmSecondaryInputKeyRef	取值范围（Value range）	无（None）	默认取值（Default value）	无（None）
	参数描述（Parameter description）	这个参数指的是用作辅助输入的键(This parameter refers to the key used as auxiliary input)
	依赖关系（Dependence）	CsmKey
CsmSecondaryOutputKeyRef	取值范围（Value range）	无（None）	默认取值（Default value）	无（None）
	参数描述（Parameter description）	这个参数指的是用作辅助输出的键。(This parameter refers to the key used as auxiliary output.)
	依赖关系（Dependence）	CsmKey
CsmTertiaryInputKeyRef	取值范围（Value range）	无（None）	默认取值（Default value）	无（None）
	参数描述（Parameter description）	这个参数指的是用作第三级输入的键(This parameter refers to the key used as tertiary input)
	依赖关系（Dependence）	CsmKey

CsmJob配置 CsmJob Configuration

必配项，需要先配置primitives里面的模式和长度，然后关联到job中，从而实现此任务执行对应的加密算法。

Required item; first, configure the mode and length in primitive, and then link them with the job to realize the corresponding encryption algorithm for executing this task.

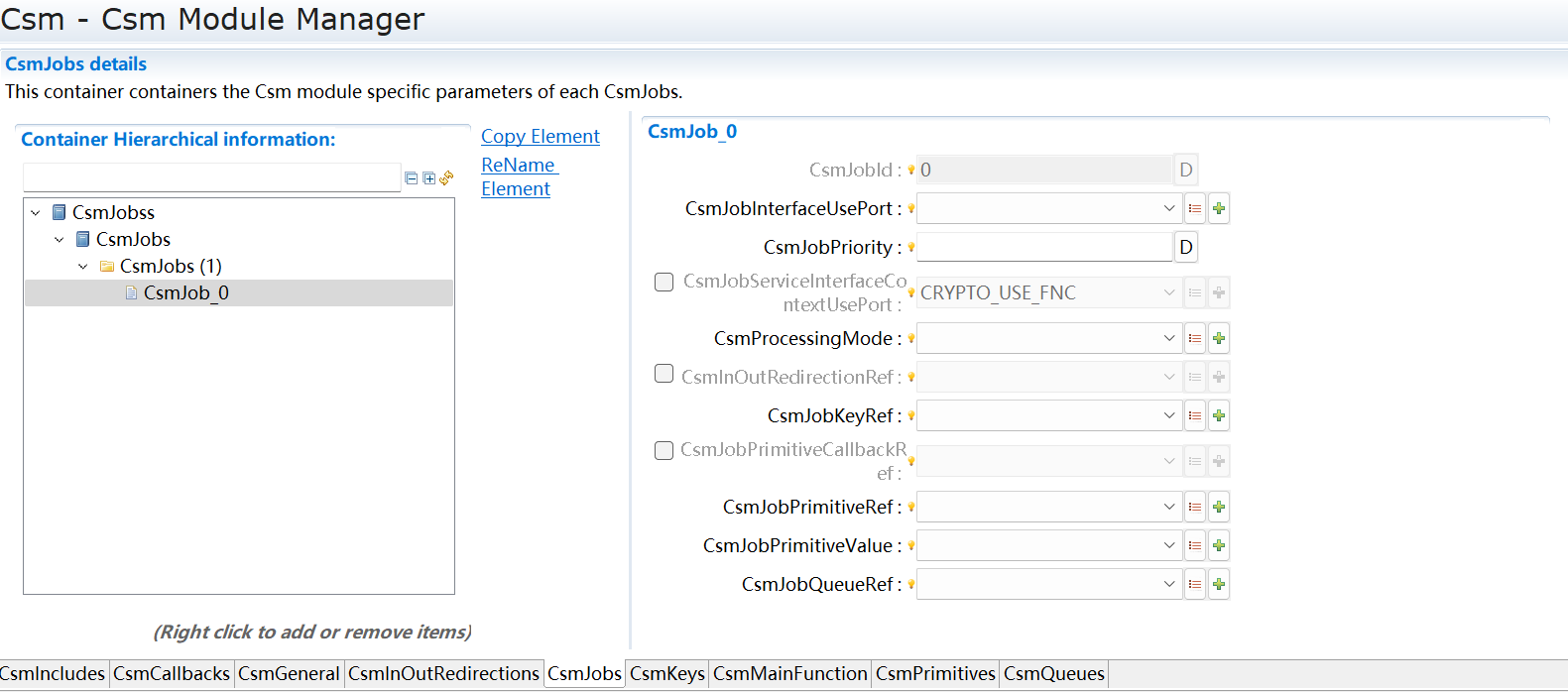

fig_CsmJob

UI 名称（UI name）	描述（Description）
CsmJobId	取值范围（Value range）	0 .. 4294967295	默认取值（Default value）	无（None）
	参数描述（Parameter description）	CSMjob的标识符。实际配置的标识符集应该是连续的、无间隙的。（Identifier of CSMjob. The actual identifier set configured is continuous and free of any gap.）
	依赖关系（Dependence）	无(None)
CsmJobInterfaceUsePort	取值范围（Value range）	CRYPTO_USE_FNC、CRYPTO_USE_PORT、CRYPTO_USE_PORT	默认取值（Default value）	无（None）
	参数描述（Parameter description）	job是否需要RTE接口（Whether job requires RTE interface）
	依赖关系（Dependence）	无(None)
CsmJobPrimitiveCallbackUpdateNotification	取值范围（Value range）	TRUE/FALSE	默认取值（Default value）	FALSE
	参数描述（Parameter description）	此参数指示，如果更新操作已完成，是否应调用回调函数。（This parameter indicates whether to call a callback function after update is complete.）
	依赖关系（Dependence）	无(None)
CsmJobPriority	取值范围（Value range）	0 .. 4294967295	默认取值（Default value）	无（None）
	参数描述（Parameter description）	job的优先级。值越高，job的优先级越高。（Priority of job.The higher the value, the higher the job priority.）
	依赖关系（Dependence）	无(None)
CsmProcessingMode	取值范围（Value range）	CRYPTO_PROCESSING_ASYNC、CRYPTO_PROCESSING_SYNC	默认取值（Default value）	无（None）
	参数描述（Parameter description）	确定该job的接口应使用的方式。同步处理返回结果，而异步处理返回而不处理job。相应的回调将通知调用者。（Determine the specific use method of job interface. Synchronous processing returns results while asynchronous processing returns without processing jobs. Notify the caller of the corresponding callback.）
	依赖关系（Dependence）	无(None)
CsmInOutRedirectionRef	取值范围（Value range）	无（None）	默认取值（Default value）	无（None）
	参数描述（Parameter description）	此参数引用使用的重定向（This parameter references the used redirection ）
	依赖关系（Dependence）	CsmInOutRedirections
CsmJobKeyRef	取值范围（Value range）	无（None）	默认取值（Default value）	无（None）
	参数描述（Parameter description）	这个参数指的是CsmPrimitive的应使用键。可以为不同的job使用CsmKey。（This parameter refers to the key that CsmPrimitive should use.CsmKey can be used for different jobs.）
	依赖关系（Dependence）	CsmKey
CsmJobPrimitiveCallbackRef	取值范围（Value range）	无（None）	默认取值（Default value）	无（None）
	参数描述（Parameter description）	此参数引用使用的CsmCallback。当加密job完成时，将调用所引用的CsmCallback。(This parameter references CsmCallback used.When the encryption job is completed, the referenced CsmCallback will be called.)|
	依赖关系（Dependence）	当CsmProcessingMode配置为ASYN异步模式(When CsmProcessingMode is configured as ASYN asynchronous mode)
CsmJobPrimitiveRef	取值范围（Value range）	无（None）	默认取值（Default value）	无（None）
	参数描述（Parameter description）	此参数引用所使用的CsmPrimitive。不同的job可以引用一个CsmPrimitive。所引用的CsmPrimitive提供了关于实际密码例程的详细信息。(The CsmPrimitive used for referencing this parameter.One CsmPrimitive can be referenced for different jobs. The referenced CsmPrimitive provides details on the actual password routines.)|
	依赖关系（Dependence）	CsmPrimitives
CsmJobQueueRef	取值范围（Value range）	无（None）	默认取值（Default value）	无（None）
	参数描述（Parameter description）	如果底层加密驱动程序对象忙，则使用该队列。队列也引用所使用的通道。(Use this queue, if the underlying encryption driver object is busy. The used channel can also be referenced by queue.)
	依赖关系（Dependence）	CsmQueue

CsmKeys配置 CsmKeys Configuration

必配项，大部分算法需要秘钥进行加密。直接从下层的CryIf模块中获取引用，然后被job关联，在对应的算法中使用该秘钥。

Required, for key is required in most algorithms key for encryption. Get a reference directly from the CryIf module at the lower level, then link it with Job and use the key in the corresponding algorithm.

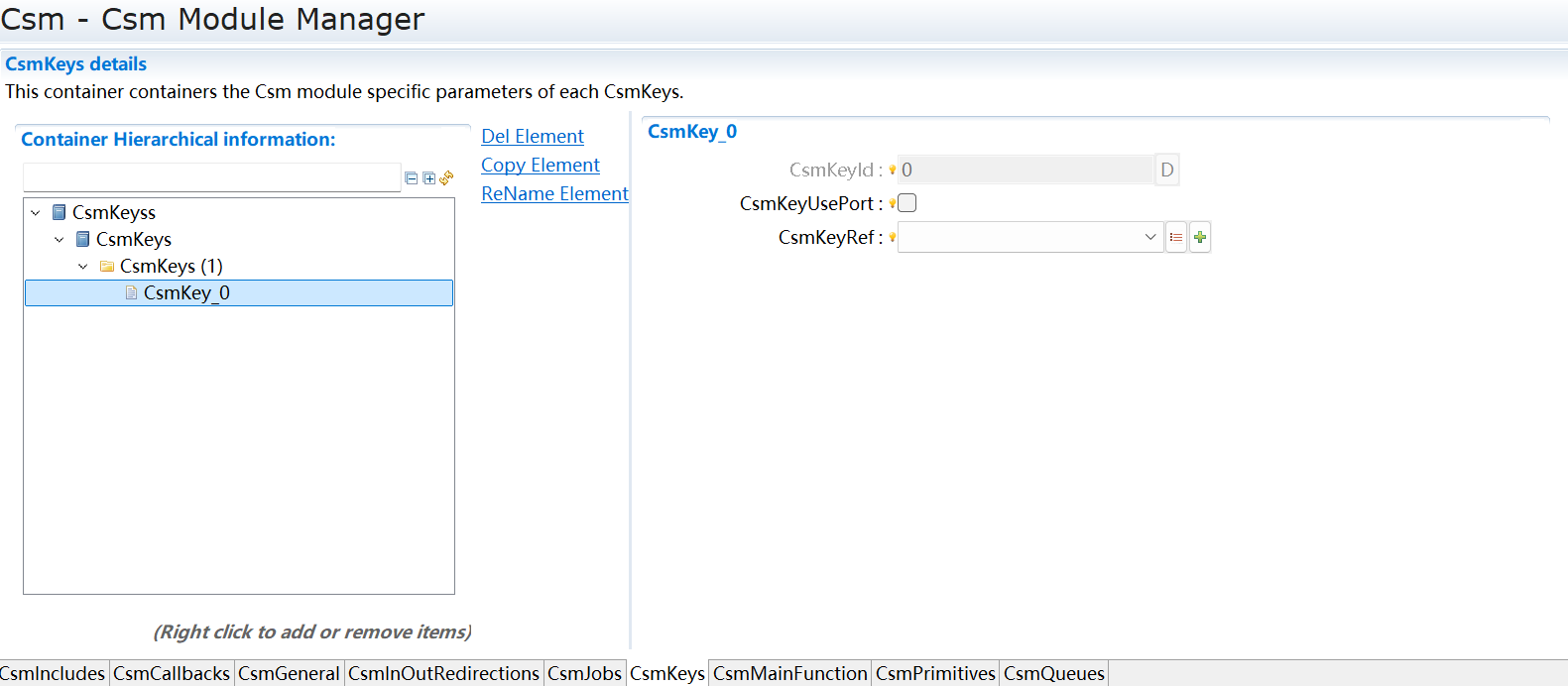

fig_CsmKeys

UI 名称（UI name）	描述（Description）
CsmKeyId	取值范围（Value range）	0 .. 4294967295	默认取值（Default value）	无（None）
	参数描述（Parameter description）	CsmKey的标识符。实际配置的标识符集应该是连续的、无间隙的。（Identifier of CsmKey. The actual identifier set configured is continuous and free of any gap.）
	依赖关系（Dependence）	无(None)
CsmKeyUsePort	取值范围（Value range）	TRUE/FALSE	默认取值（Default value）	FALSE
	参数描述（Parameter description）	Key需要RTE接口吗? True：此键使用的RTE接口；False：此键没有使用RTE接口（Does Key require RTE interface?True: RTE interface is used for this key；False: RTE interface is not used for this key）
	依赖关系（Dependence）	无(None)
CsmKeyRef	取值范围（Value range）	无（None）	默认取值（Default value）	无（None）
	参数描述（Parameter description）	此参数引用所使用的CryIfKey。底层的CryIfKey指的是加密驱动程序中的一个特定的加密密钥。（CryIfKey used is referenced for this parameter. The underlying CryIfKey refers to a specific encryption key in the encryption driver.）
	依赖关系（Dependence）	CryIfKey

CsmMainFunction配置 Configuration of CsmMainFunction

配置周期性函数的周期，支持多分区配置，目前源码尚未进行多核验证。

Configure the periodicity of periodic functions and support multi-partition configuration. The source code has not undergone multi-core validation yet.

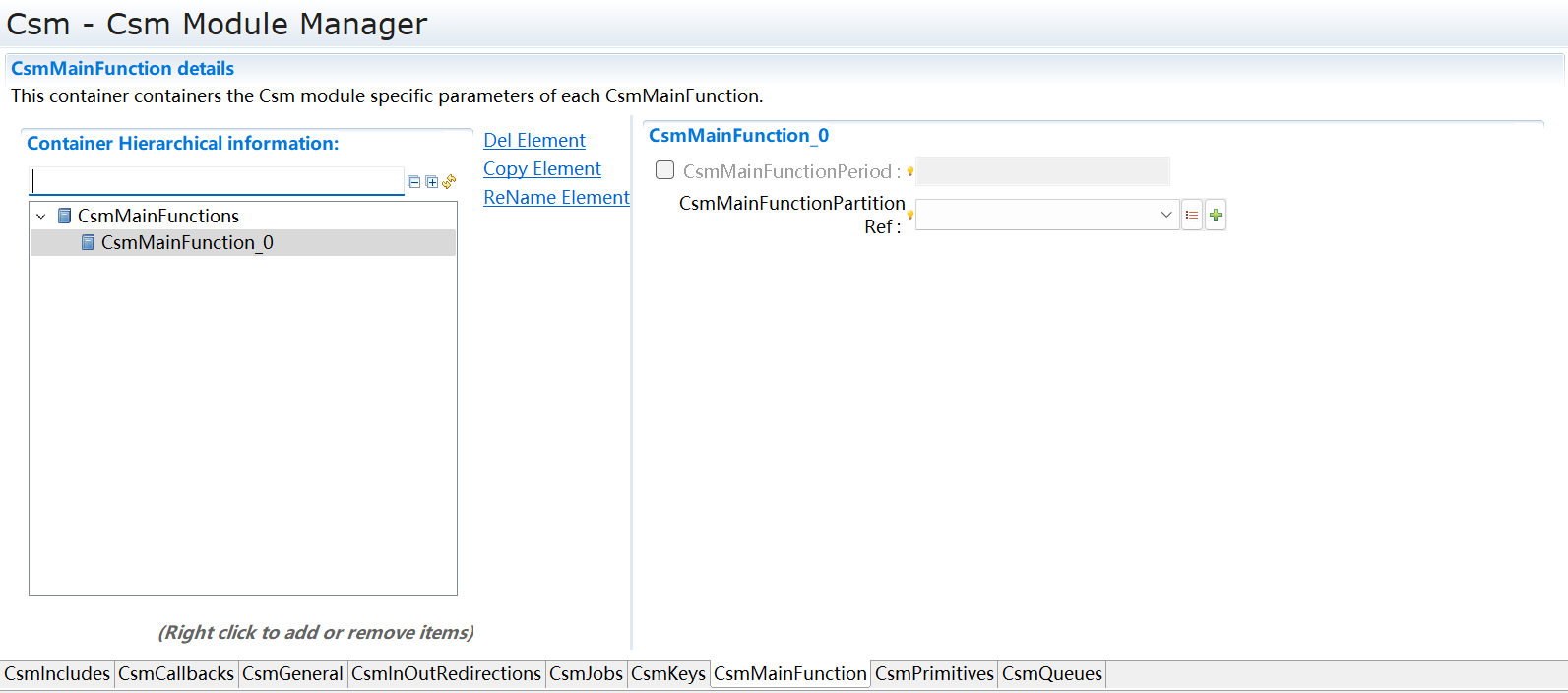

fig_CsmMainFunction

UI 名称（UI name）	描述（Description）
CsmMainFunctionPeriod	取值范围（Value range）	0 .. INF	默认取值（Default value）	0.01
	参数描述（Parameter description）	配置CSM模块周期性函数的周期。（Configure the periodicity of periodic function of CSM module. ）
	依赖关系（Dependence）	无(None)
CsmMainFunctionPartitionRef	取值范围（Value range）	无（None）	默认取值（Default value）	无（None）
	参数描述（Parameter description）	CSM模块周期性函数所在的分区信息。（The partition information where the periodic function of CSM module is located.）
	依赖关系（Dependence）	需要存在分区信息（Partition information is required）

CsmPrimitives配置 Configuration of CsmPrimitives

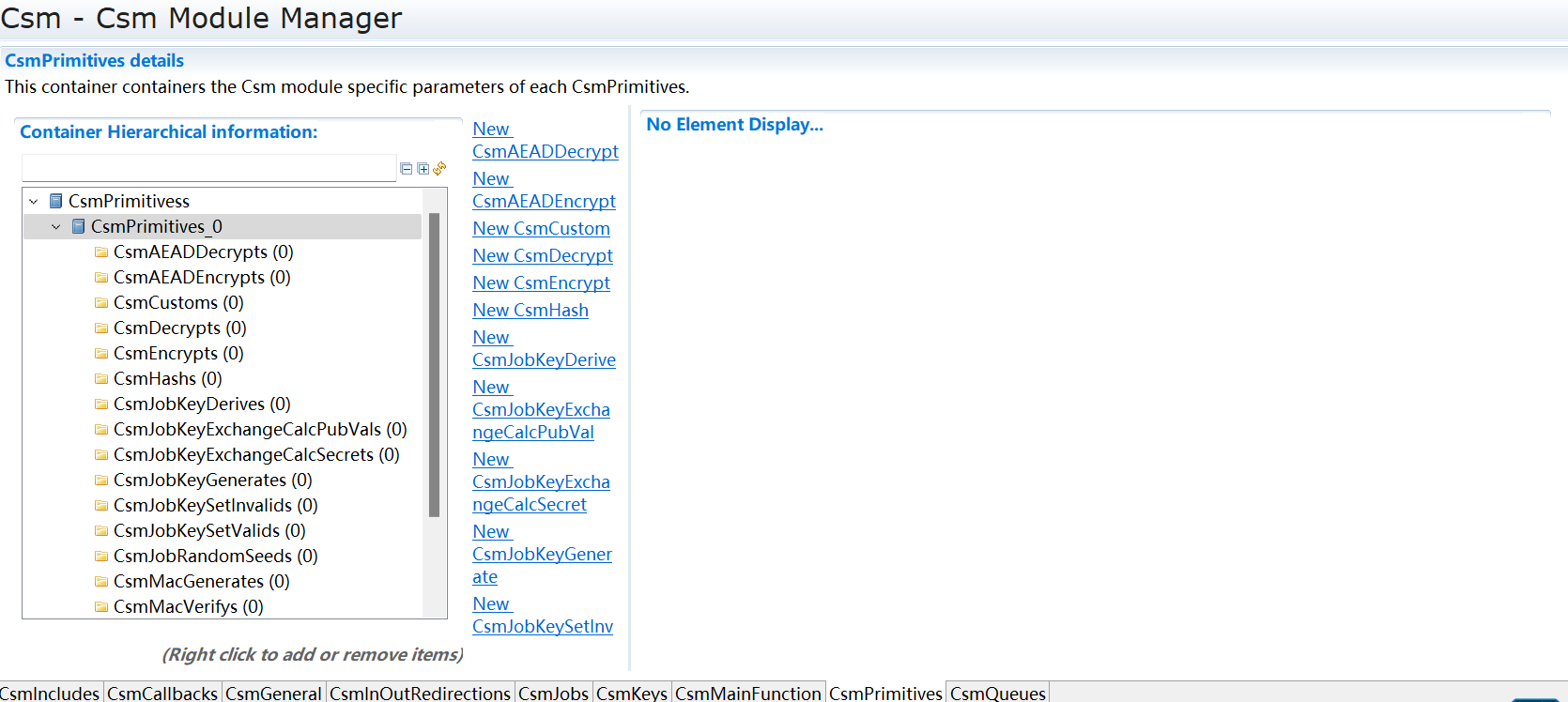

fig_CsmPrimitives

CsmQueues配置 Configuration of CsmQueues

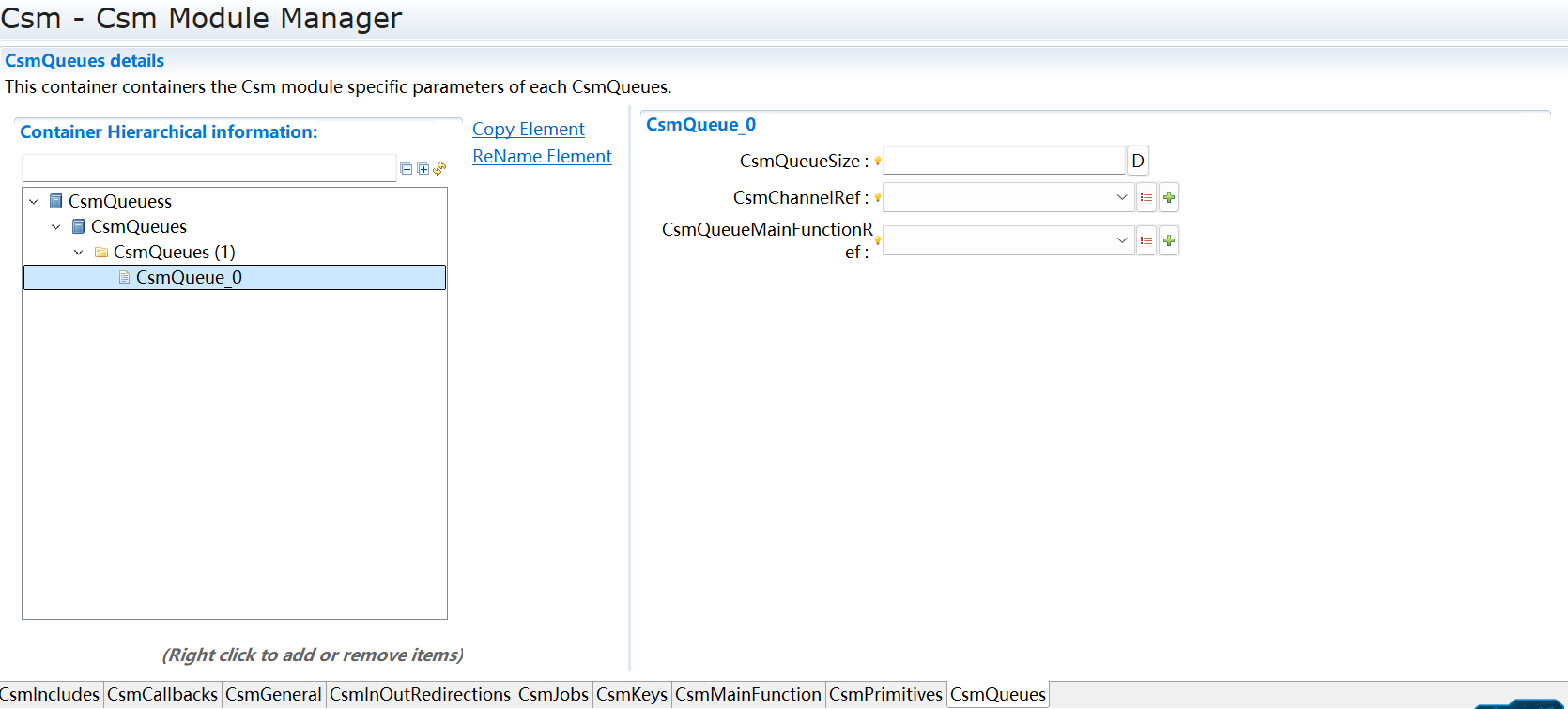

fig_CsmQueues

UI 名称（UI name）	描述（Description）
CsmQueueSize	取值范围（Value range）	1..4294967295	默认取值（Default value）	无（None）
	参数描述（Parameter description）	CsmQueue的大小。如果由于硬件繁忙而无法由底层硬件处理job，则job将保留在优先队列中。如果队列已满，则将拒绝下一个job。（Size of CsmQueue. If job cannot be processed by the underlying hardware due to hardware’s busy schedule, the job will remain in the priority queue.Next job will be refused if the queue is full. ）
	依赖关系（Dependence）	无(None)
CsmChannelRef	取值范围（Value range）	无（None）	默认取值（Default value）	无（None）
	参数描述（Parameter description）	指底层的密码接口通道（efers to the underlying password interface channel）
	依赖关系（Dependence）	CryIfChannel
