SomeIpTp¶

文档信息 Document Information¶

版本历史 Version History¶

日期(Date)	作者(Author)	版本(Version)	状态(Status)	说明(Description)
2025/04/03	jianyu.yang	V0.1	发布(Release)	首次发布(First release)
2025/04/04	jianyu.yang	V1.0	发布(Release)	正式发布(Official release)

参考文档 References¶

编号(Number)	分类(Classification)	标题(Title)	版本(Version)
1	Autosar	AUTOSAR_CP_SWS_BSWGeneral.pdf	R23-11
2	Autosar	AUTOSAR_CP_SRS_BSWGeneral.pdf	R23-11
3	Autosar	AUTOSAR_CP_EXP_LayeredSoftwareArchitecture.pdf	R23-11
4	Autosar	AUTOSAR_FO_RS_SOMEIPProtocol.pdf	R23-11
5	Autosar	AUTOSAR_FO_PRS_SOMEIPProtocol.pdf	R23-11
6	Autosar	AUTOSAR_CP_SWS_PDURouter.pdf	R23-11
7	Autosar	AUTOSAR_CP_SWS_SOMEIPTransportProtocol.pdf	R23-11

术语与简写 Terms and Abbreviations¶

术语 Terms¶

术语(Terms)	解释(Explanation)
SOME/IP	可扩展的面向服务中间件(Scalable service-oriented middleware)

简写 Abbreviations¶

简写(Abbreviation)	全称(Full name)	解释(Explanation)
SOME/IP TP	SOME/IP Transport Layer	SOME/IP传输层
UDP	User Datagram Protocol	用户数据报协议

简介 Introduction¶

SOME/IP TP为使用UDP发送长度大于1400字节的SOME/IP报文提供了可能。在发送端，SOME/IP TP将原始数据进行分段，插入TP报头后分段发送出去。在接收端，SOME/IP TP利用TP报头将接收的分段进行重组，传递给上层用户。

SOME/IP TP makes it possible to send SOME/IP messages with a length greater than 1400 bytes using UDP. On the sending end, SOME/IP TP segments the original data, inserts a TP header, and then sends the segments. On the receiving end, SOME/IP TP uses the TP header to reassemble the received segments and delivers them to upper-layer users.

如图 SomeIpTp模块层次图 (SomeIpTp Module Layer Diagram) SomeIpTp模块通过和PduR模块进行交互，进行数据的接收和发送。

As shown in Figure SomeIpTp模块层次图 (SomeIpTp Module Layer Diagram) , the SomeIpTp module interacts with the PduR module to receive and send data.

功能描述 Functional Description¶

特性 Features¶

SOME/IP TP 怎么工作 How SOME/IP TP Works¶

SOME/IP TP 发送与接收 SOME/IP TP Sending and Receiving¶

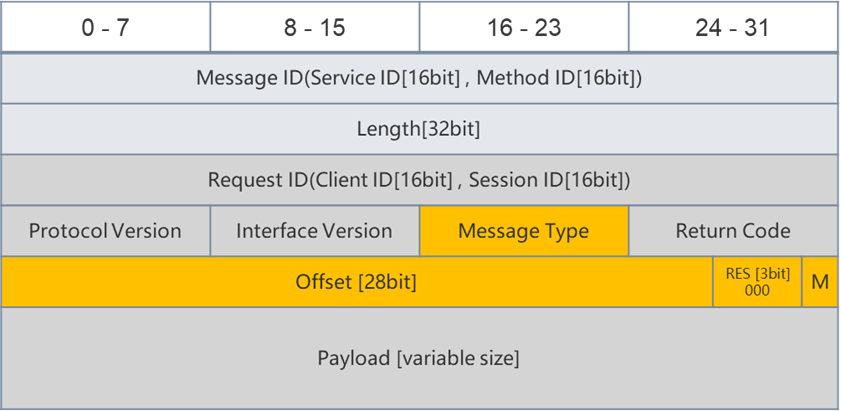

SOMEIP-TP协议在原有的SOMEIP协议中改造了MessageType区域的构造（增加了TP-Flag位），并扩展了4个字节（分为Offset，Res，M区域）用于控制传输TP报文。SomeIpTp模块完成TP相关位的填充和解析，以支持大数据传输。

The SOMEIP-TP protocol modifies the structure of the MessageType field in the original SOMEIP protocol (adding a TP-Flag bit) and extends 4 bytes (divided into Offset, Res, and M fields) to control the transmission of TP messages. The SomeIpTp module completes the filling and parsing of TP-related bits to support large data transmission.

偏差 Deviation¶

None

扩展 Extension¶

None

集成 Integration¶

文件列表 File List¶

静态文件 Static Files¶

文件(File)	描述(Description)
SomeIpTp.h	SomeIpTp模块头文件，通过加载该头文件访问SomeIpTp公开的函数和数据类型(SomeIpTp module header file; access the public functions and data types of SomeIpTp by including this header file)
SomeIpTp_Internal.h	SomeIpTp模块内部使用的宏，运行时变量类型定义头文件。(Header file for macros used internally by the SomeIpTp module and definitions of runtime variable types.)
SomeIpTp_Types.h	SomeIpTp模块类型定义头文件(SomeIpTp module type definition header file)
SomeIpTp.c	SomeIpTp模块实现源文件，各API实现在该文件中(SomeIpTp module implementation source file; various APIs are implemented in this file)

动态文件 Dynamic Files¶

文件(File)	描述(Description)
SomeIpTp_Cfg.h	用于定义SomeIpTp模块预编译时用到的宏(Used to define macros used during pre-compilation of the SomeIpTp module)
SomeIpTp _Cfg.c	配置参数源文件，包含各个配置项的定义(Configuration parameter source file, containing definitions of various configuration items)
SomeIpTp_MemMap.h	SomeIpTp模块函数和变量存储位置定义文件(File defining the storage locations of functions and variables of the SomeIpTp module)

错误处理 Error Handling¶

开发错误 Development Errors¶

Error code	Value[hex]	Description
SOMEIPTP_E_UNINIT	0x01	SOME/IP TP module not initialized
SOMEIPTP_E_PARAM_POINTER	0x02	Null pointer has been passed as an argument
SOMEIPTP_E_PARAM	0x03	Unknown parameter has been passed
SOMEIPTP_E_INIT_FAILED	0x04	Invalid configuration set selection

产品错误 Product Errors¶

None

运行时错误 Runtime Errors¶

SOMEIPTP_E_MESSAGE_TYPE	0x04	The TP-Flag (of Message Type) was set to ‘0’
SOMEIPTP_E_INCONSISTENT_SEQUENCE	0x05	Inconsistent subsequent segment received
SOMEIPTP_E_INCONSISTENT_HEADER	0x06	Inconsistent header received
SOMEIPTP_E_DISASSEMBLY_INTERRUPT	0x07	Disassembly Interrupt due to the upper layer
SOMEIPTP_E_ASSEMBLY_INTERRUPT	0x08	Assembly Interrupt due to the upper layer

接口描述 Interface Description¶

类型定义 Type Definitions¶

None

提供的服务 Services¶

SomeIpTp_GetVersionInfo¶

void SomeIpTp_GetVersionInfo(Std_VersionInfoType *VersionInfo)

Returns the version information of this module.

Sync/Async: TRUE
Reentrancy: Reentrant

Parameters

Dir	Name	Description
[out]	VersionInfo	Pointer to where to store the version information of this module

Return type: void

SomeIpTp_Init¶

void SomeIpTp_Init(const SomeIpTp_ConfigType config)

Initializes the SOME/IP TP module.

Sync/Async: TRUE
Reentrancy: Non Reentrant

Parameters

Dir	Name	Description
[in]	config	Base pointer to the configuration structure of the SOME/IP TP module.

Return type: void

SomeIpTp_Transmit¶

Std_ReturnType SomeIpTp_Transmit(PduIdType TxPduId, const PduInfoType PduInfoPtr)

Requests transmission of a PDU.

Sync/Async: TRUE
Reentrancy: Reentrant for different PduIds.

Parameters

Dir	Name	Description
[in]	TxPduId	Identifier of the PDU to be transmitted
[in]	PduInfoPtr	Length of and pointer to the PDU data and pointer to MetaData.

Return type: Std_ReturnType

SomeIpTp_TriggerTransmit¶

Std_ReturnType SomeIpTp_TriggerTransmit(PduIdType TxPduId, PduInfoType *PduInfoPtr)

Within this API, the upper layer module (called module) shall check whether the available data fits into the buffer size reported by PduInfoPtr->SduLength.If it fits, it shall copy its data into the buffer provided by PduInfoPtr->SduDataPtr and update the length of the actual copied data in PduInfoPtr->SduLength. If not, it returns E_NOT_OK without changing PduInfoPtr.

Sync/Async: TRUE
Reentrancy: Reentrant for different PduIds.

Parameters

Dir	Name	Description
[in]	TxPduId	ID of the SDU that is requested to be transmitted
[inout]	PduInfoPtr	Contains a pointer to a buffer (SduDataPtr) to where the SDU data shall be copied, and the available buffer size in SduLengh. On

Return type: Std_ReturnType

SomeIpTp_RxIndication¶

void SomeIpTp_RxIndication(PduIdType RxPduId, const PduInfoType PduInfoPtr)

Indication of a received PDU from a lower layer communication interface module.

Sync/Async: TRUE
Reentrancy: Reentrant for different PduIds.

Parameters

Dir	Name	Description
[in]	RxPduId	ID of the received PDU.
[in]	PduInfoPtr	Contains the length (SduLength) of the received PDU, a pointer to a buffer (SduDataPtr) containing the PDU, and the MetaData related to this PDU.

Return type: void

SomeIpTp_TxConfirmation¶

void SomeIpTp_TxConfirmation(PduIdType TxPduId, Std_ReturnType result)

This service is called by the Ethernet Interface to report a transceiver link state change.

Sync/Async: TRUE
Reentrancy: Non Reentrant

Parameters

Dir	Name	Description
[in]	TxPduId	ID of the PDU that has been transmitted.
[in]	result	E_OK: The PDU was transmitted. E_NOT_OK: Transmission of the PDU failed.

Return type: void

SomeIpTp_MainFunctionTx¶

void SomeIpTp_MainFunctionTx(void)

This function performs the processing of the AUTOSAR SOME/IP TP module’s transmission activities.

Sync/Async: TRUE
Reentrancy: Non Reentrant
Return type: void

SomeIpTp_MainFunctionRx¶

void SomeIpTp_MainFunctionRx(void)

This function performs the processing of the AUTOSAR SOME/IP TP module’s reception activities.

Sync/Async: TRUE
Reentrancy: Non Reentrant
Return type: void

类型定义 Type Definitions¶

Type Name	Type	Description
SomeIpTp_RxNSduType	struct SomeIpTp_RxNSduTag	NSDU which has to be passed as one assembled RxPdu to the upper layer.
SomeIpTp_TxNSduType	struct SomeIpTp_TxNSduTag	NSDU that the SomeIpTp module transmits via the SomeIpTpChannel.
SomeIpTp_ChannelType	struct SomeIpTp_ChannelTag	Configuration parameters of the SomeIpTp channel.
SomeIpTp_ConfigType	struct SomeIpTp_ConfigTag	Configuration of the SomeIpTp module.

提供的服务 Services¶

配置 Configuration¶

接收端配置 Receiver Configuration¶

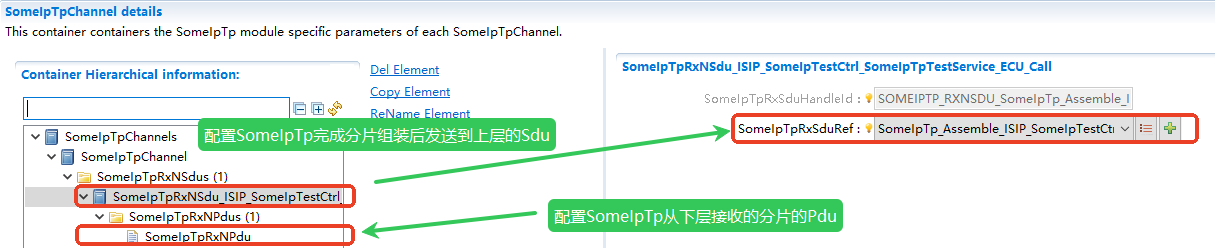

SomeIpTpRxNSdu及其子容器用于配置SomIpTp模块对接收到的分片进行组装的配置。

SomeIpTpRxNSdu and its sub-containers are used to configure the SomIpTp module for the assembly of received fragments.

SomeIpTp接收端 (SomeIpTp Receiver) — SomeIpTp接收端NSdu的配置 (Configuration of SomeIpTp Receiver NSdu)¶

发送端配置 Transmitter Configuration¶

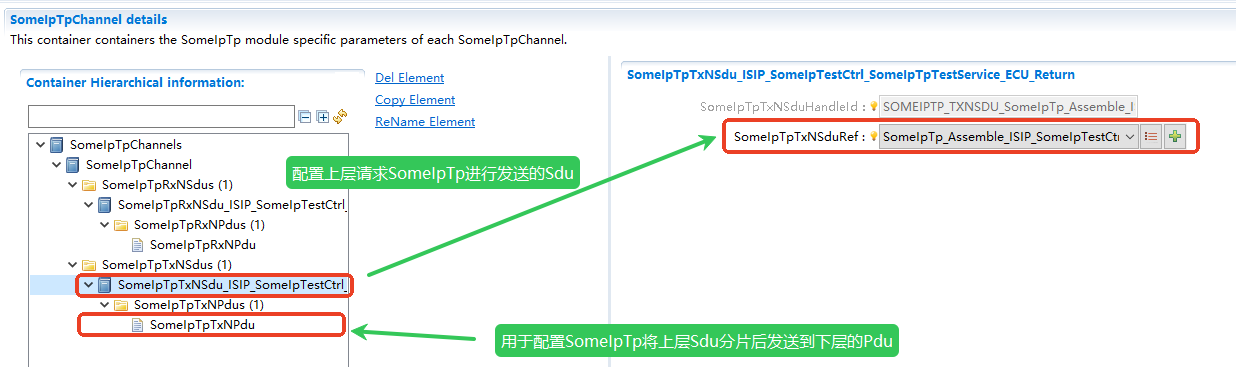

SomeIpTpTxNSdu及其子容器用于配置SomIpTp模块对收到的上层的NSdu的发送请求，将其进行分片后发送的配置。

SomeIpTpTxNSdu and its sub-containers are used to configure the SomIpTp module to process the NSdu transmission requests received from the upper layer, fragment the NSdu, and then send the fragments.

SomeIpTp发送端 (SomeIpTp Transmitter) — SomeIpTp发送端NSdu的配置 (Configuration of SomeIpTp Transmitter NSdu)¶
