Fee¶
文档信息（Document Information）¶
版本历史（Version History）¶
日期（Date） |
作者（Author） |
版本（Version） |
状态（Status） |
说明（Description） |
|---|---|---|---|---|
2024/11/12 |
peng.wu |
V0.1 |
发布（Release） |
首次发布（First release） |
2025/04/04 |
peng.wu |
V1.0 |
发布（Release） |
正式发布（Official release） |
参考文档（Reference Document）¶
编号（Number） |
分类（Classification） |
标题（Title） |
版本（Version） |
|---|---|---|---|
1 |
Autosar |
AUTOSAR_CP_SRS_MemoryHWAbstractionLayer.pdf |
R23-11 |
2 |
Autosar |
AUTOSAR_CP_SWS_FlashEEPROMEmulation.pdf |
R23-11 |
术语与简写（Terms and Abbreviations）¶
术语（Term）¶
术语（Term） |
解释（Explanation） |
|---|---|
(Logical) block |
逻辑块，是模块的最小可写/可擦单元，由一个或多个虚拟页组成 A logical block is the smallest writable/erasable unit in the FEE module, consisting of one or more virtual pages. |
Virtual page |
虚拟页，可能由一个或多个物理页面组成 A virtual page, which may consist of one or more physical pages. |
Bank |
存储块，可能由一个或几个物理部分组成 A storage block, which may consist of one or several physical parts. |
Virtual address |
虚拟地址，由逻辑块内的16位块号和16位偏移量组成 A virtual address, composed of a 16-bit block number and a 16-bit offset within a logical block. |
Physical address |
物理地址，用于访问逻辑块的设备特定格式的地址信息（取决于底层驱动程序和设备） A physical address, which is device-specific format address information used to access logical blocks (depending on the underlying driver and device). |
Internal residue |
内部残留，如果配置的块大小不是虚拟页大小的整数倍，则最后一个虚拟页末尾的未使用空间 Internal residue refers to the unused space at the end of the last virtual page if the configured block size is not an integer multiple of the virtual page size. |
Address Area |
地址区域，逻辑地址空间中的连续内存区，通常将多个物理内存扇区组合到一个逻辑地址区中 An address area is a continuous memory area in the logical address space, usually combining multiple physical memory sectors into one logical address area. |
简写（Abbreviation）¶
简写（Abbreviation） |
全称（Full name） |
解释（Explanation） |
|---|---|---|
FEE |
Flash EEPROM Emulation |
Flash EEPROM仿真 |
EA |
EEPROM Abstraction |
EEPROM抽象 |
EEPROM |
Electrically Erasable and Programmable ROM |
电可擦可编程只读存储器 |
MemIf |
Memory Abstraction Interface |
内存抽象接口 |
NvM |
NVRAM Manager |
非易失RAM管理 |
MemAcc |
Memory Access- AUTOSAR Basic Software module for memory access |
AUTOSAR基本软件模块存储器访问 |
LSB |
Least significant bit / byte |
最低有效位/字节 |
MSB |
Most significant bit / byte |
最高有效位/字节 |
简介（Introduction）¶
Fee是对Flash块进行逻辑块的划分（逻辑块的大小根据配置可能不同），以及地址映射， 通过模拟Eeprom（不用先擦除再写入）主要实现基于Block的非易失性数据读、写功能，同时支持 Immediate Block的擦除，Block的使无效操作，任务的取消机制，模块状态及任务结果的获取。
Fee divides Flash blocks into logical blocks (the size of logical blocks may vary according to configurations) and performs address mapping. By simulating EEPROM (which does not require erasing before writing), it mainly provides Block-based non-volatile data read and write functions. It also supports immediate Block erasure, Block invalidation operations, task cancellation mechanisms, and acquisition of module status and task results.
Fee模块处于AUTOSAR架构中的存储服务层，其下层模块为Flash模块，上层模块为MemIf模块。 模块架构如图 Fee AUTOSAR Architecture 所示。
The Fee module is located in the storage service layer of the AUTOSAR architecture. Its lower-level module is the Flash module, and its upper-level module is the MemIf module. The module architecture is shown in Figure :ref:Fee_AUTOSAR_Arch.
Fee AUTOSAR Architecture¶

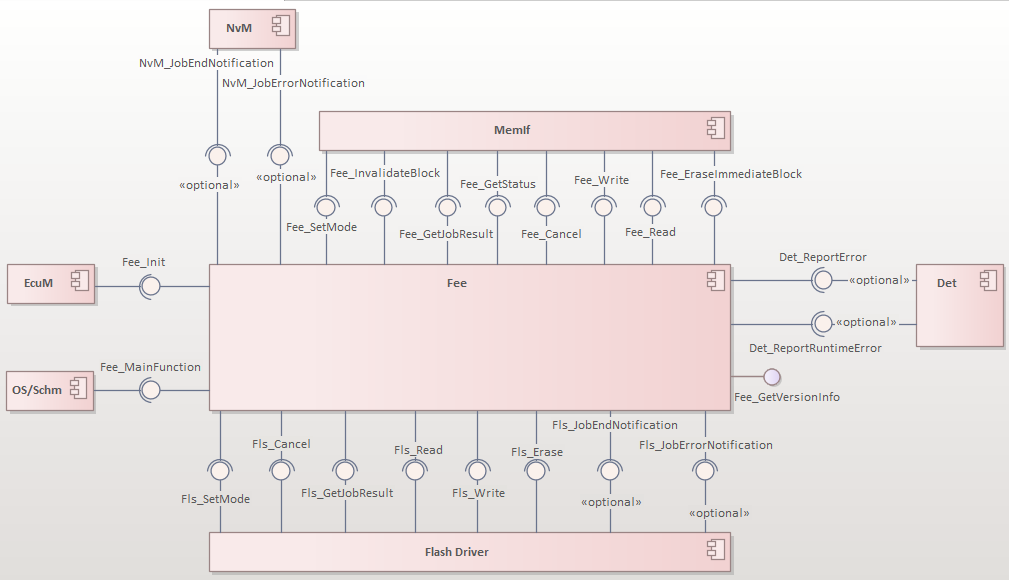

Fee接口调用关系如图 Fee interface relationship 所示，接口的详细内容请参考“接口描述”章节。
The interface calling relationship of Fee is shown in Figure Fee interface relationship. For detailed information about the interfaces, please refer to the “Interface Description” chapter.
Fee interface relationship¶
功能描述（Functional Description）¶
特性（Features）¶
模块初始化（Module Initialization）¶
Fee模块必须在初始化接口调用后才能开始运行。因为Fee初始化可能涉及大量的Flash读操作， 以及可能发生的Flash擦除、写入操作，通常耗时较长。所以Fee的初始化通过异步实现， Fee_Init加载初始化任务，由Fee_MainFunction来实际执行。
The Fee module can only start running after the initialization interface is called. Since Fee initialization may involve a large number of Flash read operations, as well as possible Flash erase and write operations, the process typically has a long duration. Therefore, the initialization of Fee is implemented asynchronously. Fee_Init initiates the initialization task, which is then executed by Fee_MainFunction.
Block操作功能（Block Operation Functions）¶
Fee模块对Block的操作是单任务的，同一时间只能处理一个任务，任务处理过程中不能加载新的任务。
The Fee module processes requests sequentially one operation at a time. Only one task can be processed at a time, and new tasks cannot be loaded during task processing.
Fee模块对Block的操作都是通过异步机制实现，通过调用Fee_Read，Fee_Write，Fee_InvalidateBlock，Fee_EraseImmediateBlock加载任务，在Fee_MainFunction中实际执行。
All operations of the Fee module on Blocks are implemented through an asynchronous mechanism. Tasks are loaded by calling Fee_Read, Fee_Write, Fee_InvalidateBlock, and Fee_EraseImmediateBlock, and are actually executed in Fee_MainFunction.
Block的区分通过参数BlockNumber决定，各个Block的BlockNumber唯一，存储栈集成时BlockNumber的配置需要与NvMDatasetSelectionBits及关联NvM模块中Block的NvMBlockManagementType适配。
Blocks are distinguished by the parameter BlockNumber. Each Block has a unique BlockNumber. When integrating the storage stack, the configuration of BlockNumber needs to be align with NvMDatasetSelectionBits and the NvMBlockManagementType of the Block in the associated NvM module.
任务的结果支持两种机制反馈给上层模块：
The task results support two mechanisms to feed back to the upper-level module:
在polling模式下实现接口Fee_GetJobResult供上层随时获取Job结果；
In polling mode, the interface Fee_GetJobResult is implemented for the upper layer to obtain the Job result at any time;
在Notification模式下，任务成功/失败通过调用上层回调函数通知，如NvM_JobEndNotification/NvM_JobErrorNotification。
Blocks are distinguished by the parameter BlockNumber. Each Block has a unique BlockNumber. When integrating the storage stack, the configuration of BlockNumber needs to be compatible with NvMDatasetSelectionBits and the NvMBlockManagementType of the Block in the associated NvM module.
配置为Immediate的Block才支持Fee_EraseImmediateBlock操作，且在调用Fee_Write前需要先执行完Fee_EraseImmediateBlock任务。
Only Blocks configured as Immediate support the Fee_EraseImmediateBlock operation, and the Fee_EraseImmediateBlock task must be completed before calling Fee_Write.
访问Flash Driver（Accessing Flash Driver）¶
Fee功能的实现依赖于通过Flash Driver实现Flash的擦除、读、写功能，以及任务取消，任务结果获取等机制。 Flash Driver中Flash数据的擦除、读、写同样通过异步机制实现，Fee模块与Flash Driver之间任务结果的交互同样分两种机制：
The implementation of Fee functions depends on the Flash Driver for Flash erase, read, and write operations., as well as task cancellation and task result acquisition mechanisms. The erasure, reading, and writing of Flash data in the Flash Driver are also implemented through an asynchronous mechanism. The interaction of task results between the Fee module and the Flash Driver is also divided into two mechanisms:
在polling模式下，Fee通过调用接口Fls_GetJobResult获取Job结果；
In polling mode, Fee obtains the Job result by calling the interface Fls_GetJobResult;
在Notification模式下，任务成功/失败Flash Driver都通过调用Fee_JobEndNotification回调函数通知Fee模块；
In Notification mode, the Flash Driver notifies the Fee module of task success/failure by calling the Fee_JobEndNotification callback function;
偏差（Deviations）¶
写访问的扩展（Extension of write access）
由于写访问的扩展等需求目前受硬件的影响相对较小，暂时忽略。所以写访问的扩展、逻辑块写循环次数的配置暂时未实现。
Due to the fact that requirements such as the extension of write access are currently relatively less affected by hardware, this feature is currently not implemented. Therefore, the extension of write access and the configuration of the number of logical block write cycles have not been implemented for the time being.
初始化的同步方式（Synchronous mode of initialization）
Fee的初始化可以分为异步和同步两种方式，但是由于Fee初始化可能涉及大量的Flash读操作，所以当前实现采用了异步方式，同步方式暂未实现。
The initialization of Fee can be divided into asynchronous and synchronous modes. However, since Fee initialization may involve a large number of Flash read operations, the current implementation adopts the asynchronous mode, and the synchronous mode has not been implemented yet.
扩展（Extension）¶
None
集成（Integration）¶
文件列表（File List）¶
静态文件（Static Files）¶
文件（File） |
描述（Description） |
|---|---|
Fee.c |
作为Fee模块的核心文件，实现Fee模块全部对外接口，以及实现Fee模块功能所必须的local函数，local宏定义，local变量定义 As the core file of the Fee module, it implements all external interfaces of the Fee module, as well as the local functions, local macro definitions, and local variable definitions necessary for realizing the functions of the Fee module. |
Fee.h |
实现Fee模块全部外部接口的声明，以及配置文件中全局变量的声明 Implements the declarations of all external interfaces of the Fee module and the declarations of global variables in the configuration file. |
Fee_Types.h |
实现Fee模块全部外部宏定义，数据类型的定义与声明 Implements the definitions and declarations of all external macro definitions and data types of the Fee module. |
Fee_InternalTypes.h |
实现Fee模块全部内部宏定义，数据类型的定义与声明 Implements the definitions and declarations of all internal macro definitions and data types of the Fee module. |
Fee_Cbk.h |
实现Fee模块全部外部回调接口的声明 Implements the declarations of all external callback interfaces of the Fee module. |
Fee_MemMap.h |
实现Fee模块内存映射抽象的声明 Implements the declaration of memory map abstraction for the Fee module. |
动态文件（Dynamic Files）¶
文件（File） |
描述（Description） |
|---|---|
Fee_Cfg.h |
定义Fee模块PB配置的宏定义 Defines macro definitions for the PB configuration of the Fee module |
Fee_Lcfg.h |
定义Fee模块PC配置的宏定义以及数据类型 Defines macro definitions and data types for the PC configuration of the Fee module |
Fee_Lcfg.c |
定义Fee模块PC配置的结构体参数 Defines structure parameters for the PC configuration of the Fee module |
错误处理（Error handling）¶
开发错误（Development errors）¶
Error code |
Value[hex] |
Description |
|---|---|---|
FEE_E_UNINIT |
0x01u |
API service called when module was not initialized |
FEE_E_INVALID_BLOCK_NO |
0x02u |
API service called with invalid block number |
FEE_E_INVALID_BLOCK_OFS |
0x03u |
API service called with invalid block offset |
FEE_E_PARAM_POINTER |
0x04u |
API service called with invalid data pointer |
FEE_E_INVALID_BLOCK_LEN |
0x05u |
API service called with invalid length information |
运行时错误（Runtime error）¶
Error code |
Value[hex] |
Description |
|---|---|---|
FEE_E_BUSY |
0x06u |
API service called while module is busy processing a user request |
FEE_E_INVALID_CANCEL |
0x08u |
Fee_Cancel called while no job was pending |
接口描述（Interface Description）¶
类型定义（Type Definitions）¶
Type Name |
Type |
Description |
|---|---|---|
Fee_ConfigType |
struct |
Configuration data structure of the Fee module |
提供的服务（Provided services）¶
Fee_Init¶
void Fee_Init(const Fee_ConfigType *ConfigPtr)
Service to initialize the FEE module.
- Sync/Async
Asynchronous
- Reentrancy
Non Reentrant
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
ConfigPtr |
Pointer to the selected configuration set |
- Return type
void
Fee_SetMode¶
void Fee_SetMode(MemIf_ModeType Mode)
Function to switch the mode of the underlying Flash Driver.
- Sync/Async
Asynchronous
- Reentrancy
Non Reentrant
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
Mode |
Desired mode for the underlying flash driver |
- Return type
void
Fee_Read¶
Std_ReturnType Fee_Read(uint16 BlockNumber, uint16 BlockOffset, uint8 *DataBufferPtr, uint16 Length)
Service to initiate a read job.
- Sync/Async
Asynchronous
- Reentrancy
Non Reentrant
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
BlockNumber |
Number of logical block, also denoting start address of that block in flash memory |
[in] |
BlockOffset |
Read address offset inside the block |
[out] |
DataBufferPtr |
Pointer to data buffer |
[in] |
Length |
Number of bytes to read |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The requested job has been accepted by the module |
E_NOT_OK |
The requested job has not been accepted by the module |
Fee_Write¶
Std_ReturnType Fee_Write(uint16 BlockNumber, const uint8 *DataBufferPtr)
Service to initiate a write job.
- Sync/Async
Asynchronous
- Reentrancy
Non Reentrant
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
BlockNumber |
Number of logical block, also denoting start address of that block in Flash EEPROM |
[in] |
DataBufferPtr |
Pointer to data buffer |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The requested job has been accepted by the module |
E_NOT_OK |
The requested job has not been accepted by the module |
Fee_Cancel¶
void Fee_Cancel(void)
Service to call the cancel function of the underlying flash driver.
- Sync/Async
Asynchronous
- Reentrancy
Non Reentrant
- Return type
void
Fee_GetStatus¶
MemIf_StatusType Fee_GetStatus(void)
Service to return the status.
- Sync/Async
Synchronous
- Reentrancy
Non Reentrant
- Return type
MemIf_StatusType
Return values
Name |
Description |
|---|---|
MEMIF_UNINIT |
The FEE module has not been initialized |
MEMIF_IDLE |
The FEE module is currently idle |
MEMIF_BUSY |
The FEE module is currently busy |
MEMIF_BUSY_INTERNAL |
The FEE module is busy with internal management operations. |
Fee_GetJobResult¶
MemIf_JobResultType Fee_GetJobResult(void)
Service to query the result of the last accepted job issued by the upper layer software.
- Sync/Async
Synchronous
- Reentrancy
Non Reentrant
- Return type
MemIf_JobResultType
Return values
Name |
Description |
|---|---|
MEMIF_JOB_OK |
The last job has been finished successfully |
MEMIF_JOB_PENDING |
The last job is waiting for execution or currently being executed |
MEMIF_JOB_CANCELED |
The last job has been canceled (which means it failed) |
MEMIF_JOB_FAILED |
The last job has not been finished successfully (it failed) |
MEMIF_BLOCK_INCONSISTENT |
The requested block is inconsistent, it may contain corrupted data |
MEMIF_BLOCK_INVALID |
The requested block has been invalidated, the requested read operation can not be performed |
Fee_InvalidateBlock¶
Std_ReturnType Fee_InvalidateBlock(uint16 BlockNumber)
Service to invalidate a logical block.
- Sync/Async
Asynchronous
- Reentrancy
Non Reentrant
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
BlockNumber |
Number of logical block, also denoting start address of that block in flash memory |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The requested job has been accepted by the module |
E_NOT_OK |
The requested job has not been accepted by the module |
Fee_GetVersionInfo¶
void Fee_GetVersionInfo(Std_VersionInfoType *VersionInfoPtr)
Service to return the version information of the FEE module.
- Sync/Async
Synchronous
- Reentrancy
Reentrant
Parameters
Dir |
Name |
Description |
|---|---|---|
[out] |
VersionInfoPtr |
Pointer to standard version information structure |
- Return type
void
Fee_EraseImmediateBlock¶
Std_ReturnType Fee_EraseImmediateBlock(uint16 BlockNumber)
Service to erase a logical block.
- Sync/Async
Asynchronous
- Reentrancy
Non Reentrant
Parameters
Dir |
Name |
Description |
|---|---|---|
[in] |
BlockNumber |
Number of logical block, also denoting start address of that block in EEPROM. |
- Return type
Std_ReturnType
Return values
Name |
Description |
|---|---|
E_OK |
The requested job has been accepted by the module |
E_NOT_OK |
The requested job has not been accepted by the module |
Fee_MainFunction¶
void Fee_MainFunction(void)
Service to handle the requested read/write/erase jobs and the internal management operations.
- Sync/Async
Synchronous
- Reentrancy
Non Reentrant
Parameters
- Return type
void
回调函数（Callback Function）¶
Fee_JobEndNotification¶
void Fee_JobEndNotification(void)
Service to report to this module the successful end of an asynchronous operation.
- Sync/Async
Synchronous
- Reentrancy
Non Reentrant
- Return type
void
依赖的服务（Dependent Services）¶
强制接口（Mandatory Interface）¶
API Function |
Header File |
Description |
|---|---|---|
Det_ReportRuntimeError |
Det.h |
Service to report runtime errors. If a callout has been configured then this callout shall be called. |
MemAcc_Cancel |
MemAcc.h |
Triggers a cancel operation of the pending job for the address area referenced by the addressAreaId. Cancelling affects only jobs in pending state. For any other states, the request will be ignored. |
MemAcc_Compare (draft) |
MemAcc.h |
Triggers a job to compare the passed data to the memory content of the provided address area. The job terminates, if all bytes matched or a difference was detected. The result of this service can be retrieved using the MemAcc_GetJobResult() API. If the compare operation determined a mismatch, the result code is MEMACC_INCONSISTENT. |
MemAcc_Erase |
MemAcc.h |
Triggers an erase job of the given area.Triggers an erase job of the given area defined by targetAddress and length. The result of this service can be retrieved using the Mem_GetJobResult API. If the erase operation was successful, the result of the job is MEM_JOB_OK. If the erase operation failed, e.g. due to a hardware issue, the result of the job is MEM_JOB_FAILED. |
MemAcc_GetJobResult |
MemAcc.h |
Returns the consolidated job result of the address area referenced by addressAreaId. |
MemAcc_Read |
MemAcc.h |
Triggers a read job to copy data from the source address into the referenced destination data buffer. The result of this service can be retrieved using the MemAcc_GetJobResult API. If the read operation was successful, the result of the job is MEMACC_OK. If the read operation failed, the result of the job is either MEMACC_FAILED in case of a general error or MEMACC_ECC_CORRECTED/MEMACC_ECC_UNCORRECTED in case of a correctable/uncorrectable ECC error. |
MemAcc_Write |
MemAcc.h |
Triggers a write job to store the passed data to the provided address area with given address and length. The result of this service can be retrieved using the MemAcc_GetJobResult API. If the write operation was successful, the job result is MEMACC_OK. If there was an issue writing the data, the result is MEMACC_FAILED. |
可选接口（Optional Interfaces）¶
Det_ReportError |
.h |
Service to report development errors. |
|---|---|---|
MemAcc_BlankCheck |
MemAcc.h |
Checks if the passed address space is blank, i.e. erased and writeable. The result of this service can be retrieved using the MemAcc_GetJobResult API. If the address area defined by targetAddress and length is blank, the result is MEMACC_OK, otherwise the result is MEMACC_INCONSISTENT. |
配置函数（Configuration Functions）¶
NvM_JobEndNotification¶
NvM_JobEndNotification |
NvM_Cbk.h |
Function to be used by the underlying memory abstraction to signal end of job without error. |
|---|---|---|
NvM_JobErrorNotification |
NvM_Cbk.h |
Function to be used by the underlying memory abstraction to signal end of job with error. |
配置（configuration）¶
FeeBank¶

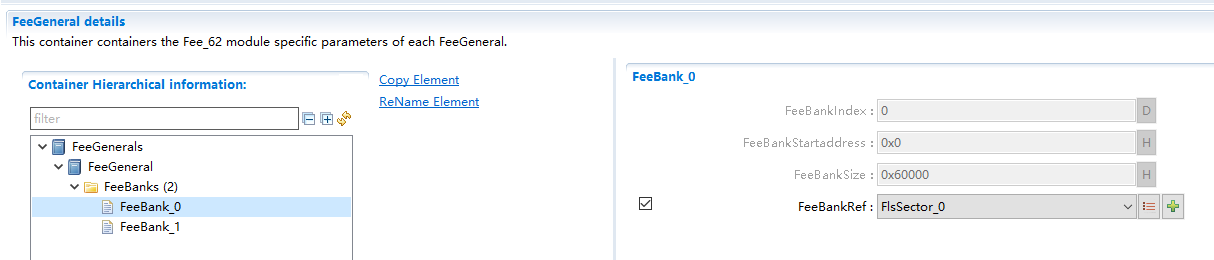

因为Flash Driver的写操作特性，至少需要配置2个Fee_Bank用于Fee模块页的切换功能。 如图 Fee Bank Configuration 展示了Fee_Bank的配置界面，可配置Bank索引值、Bank起始地址、Bank大小、Flash驱动Sector某一Sector的关联等。
Due to the write operation characteristics of the Flash Driver, at least 2 Fee_Banks need to be configured for the page switching function of the Fee module. As shown in Figure Fee Bank Configuration, it displays the configuration interface of Fee_Bank, where you can configure the Bank index value, Bank start address, Bank size, association with a specific Flash driver sector, etc.
Fee Bank Configuration¶
头文件包含（Header File Inclusion）¶

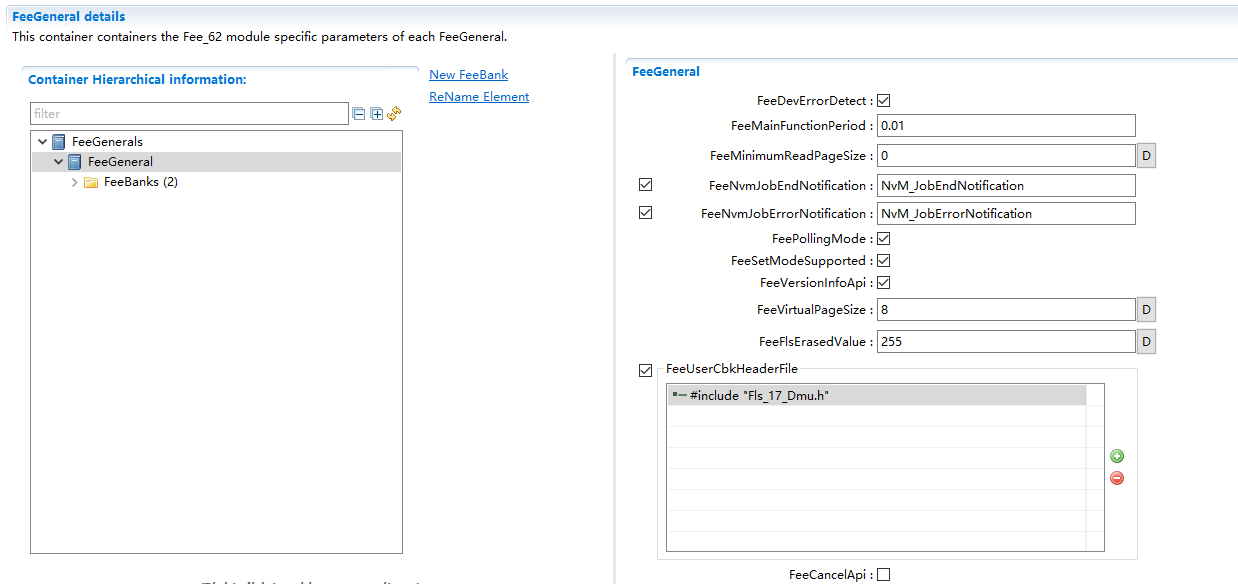

在Fee模块使用过程中，需要使用到下层Flash Driver模块，由于MCAL厂商的文件命名差异，可能会涉及文件名和类型名字不匹配的问题，所以在Fee模块中，需要在配置中包含Flash Driver的头文件#include “xxx.h”。 如图 Fee Header Including 所示。
During the use of the Fee module, the underlying Flash Driver module is required. Due to differences in file naming by MCAL manufacturers, there may be issues with mismatched file names and type names. Therefore, in the Fee module, it is necessary to include the header file of the Flash Driver in the configuration using #include “xxx.h”. As shown in Figure :ref:Fee_Header_Including.
Fee Header Including¶
不擦除直接写（Write without Erasing）¶
此配置可决定是否使能Flash数据多次写入（未擦除），以节约Block管理数据占用资源。默认不可配置，只有FeeVirtualPageSize的值 >= 16时该配置项才能配置。
This configuration can determine whether to enable multiple writes of Flash data (without erasing) to save resources occupied by Block management data. It is not configurable by default, and this configuration item can only be configured when the value of FeeVirtualPageSize is >= 16.
Header的大小（Size of Header）¶
Fee/FeePublishedInformation中的FeeBlockOverhead和FeeBankOverhead配置项，不可手动修改，根据配置的FeeVirtualPageSize，以及是否勾选后了FeePageDirectWriteSupport配置项，最终由工具自动计算得到对应的数值。
The configuration items FeeBlockOverhead and FeeBankOverhead in Fee/FeePublishedInformation cannot be modified manually. The corresponding values are finally automatically calculated by the tool according to the configured FeeVirtualPageSize and the setting of the FeePageDirectWriteSupport parameter.
